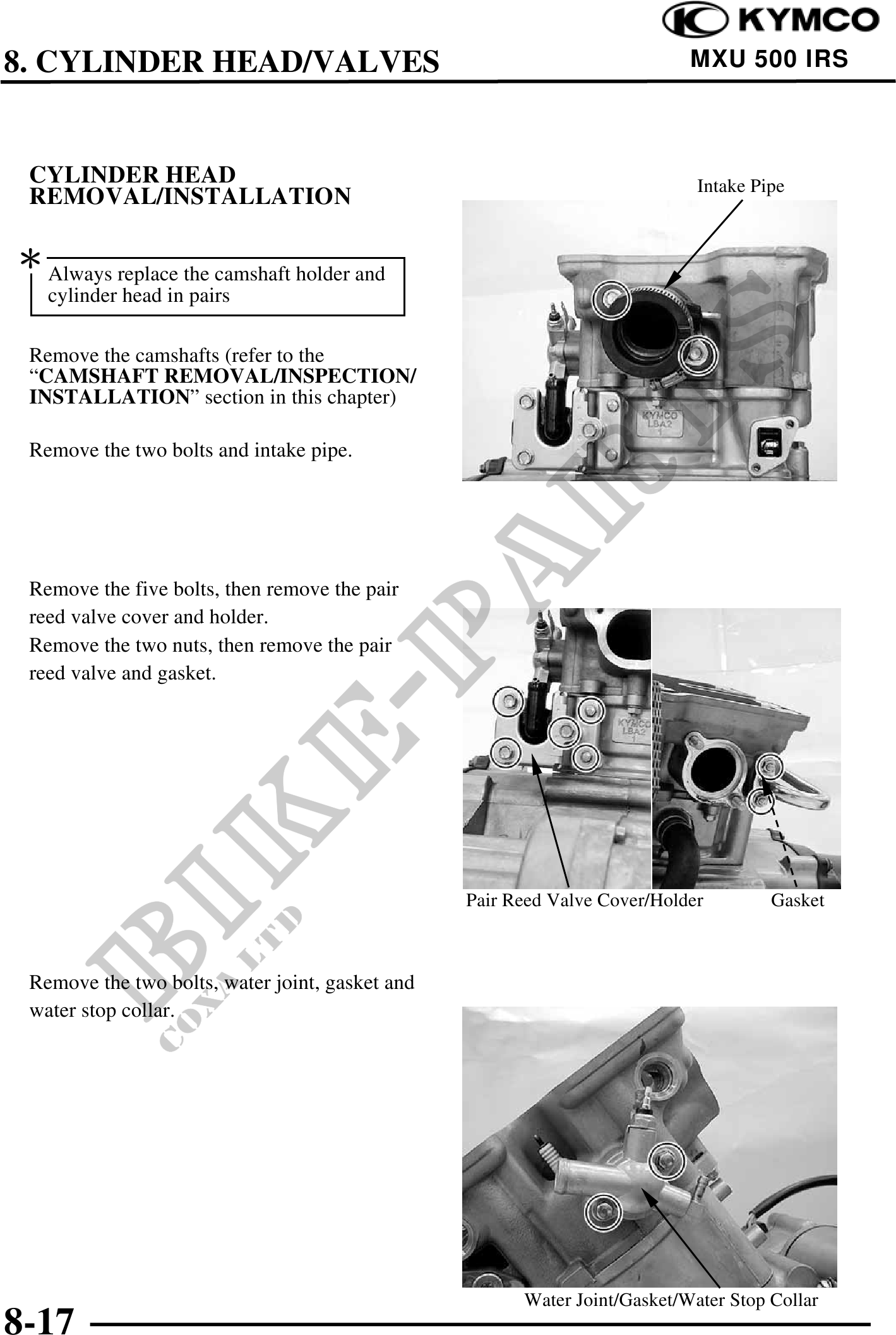

8. CYLINDER HEAD/VALVES MXU 500 IRS
CYLINDER HEAD Intake Pipe
REMOVAL/INSTALLATION
Always replace the camshaft holder and
cylinder head in pairs
Remove the camshafts (refer to the
"CAMSHAFT REMOVAL/INSPECTION/
INSTALLATION" section in this chapter)
Remove the two bolts and intake pipe.
Remove the five bolts, then remove the pair
reed valve cover and holder.
Remove the two nuts, then remove the pair
reed valve and gasket.
Pair Reed Valve Cover/Holder Gasket
Remove the two bolts, water joint, gasket and
water stop collar.
Water Joint/Gasket/Water Stop Collar
8-17
