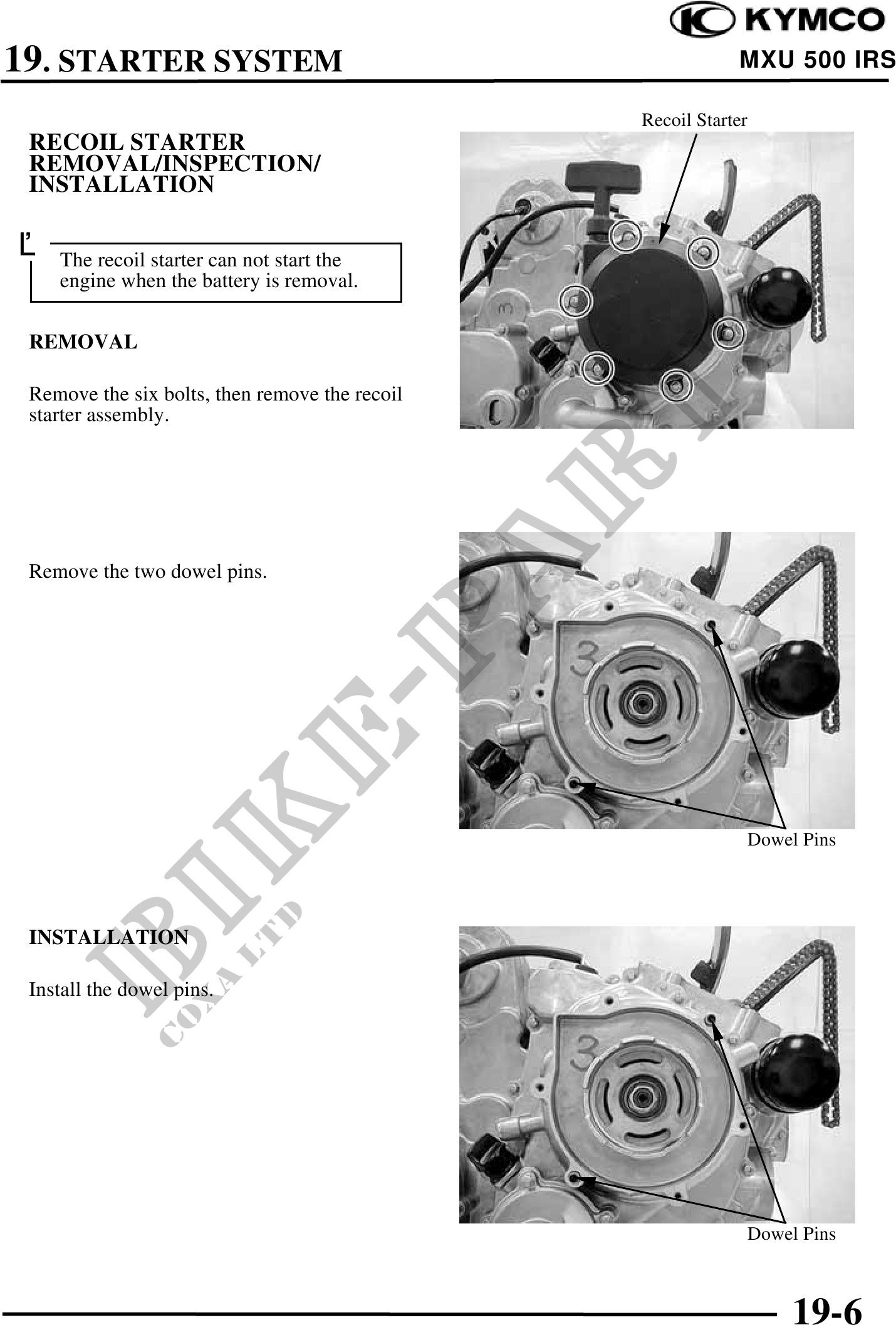

          19. STARTER SYSTEM                                          MXU 500 IRS

                                                Recoil Starter
 RECOIL STARTER
 REMOVAL/INSPECTION/
 INSTALLATION

    The recoil starter can not start the
    engine when the battery is removal.

 REMOVAL

 Remove the six bolts, then remove the recoil
 starter assembly.




 Remove the two dowel pins.




                                                             Dowel Pins




 INSTALLATION

 Install the dowel pins.




                                                             Dowel Pins



                                                                  19-6
