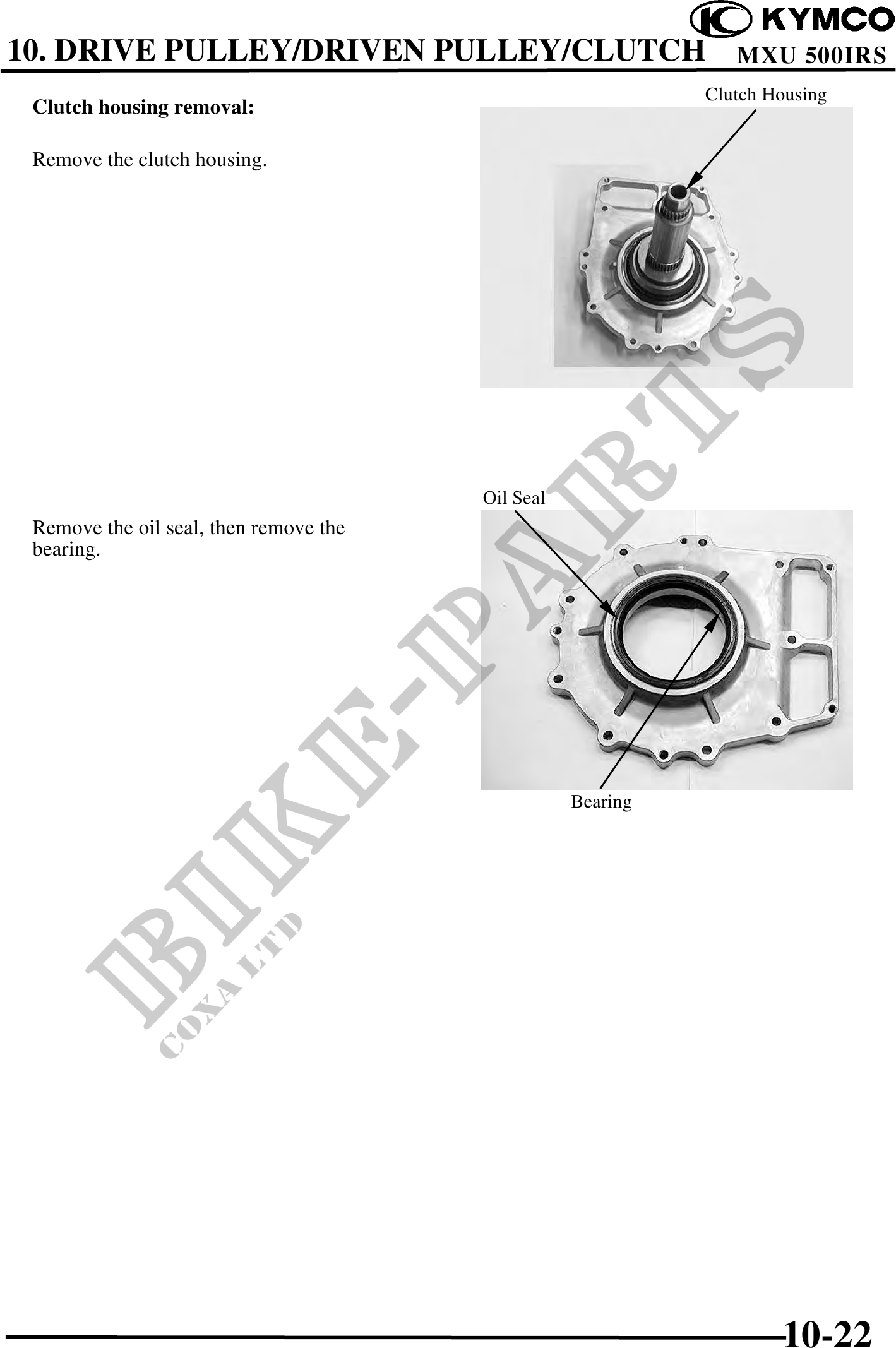

          10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH                           MXU 500IRS
                                                             Clutch Housing
 Clutch housing removal:

 Remove the clutch housing.




                                        Oil Seal
 Remove the oil seal, then remove the
 bearing.




                                                   Bearing
