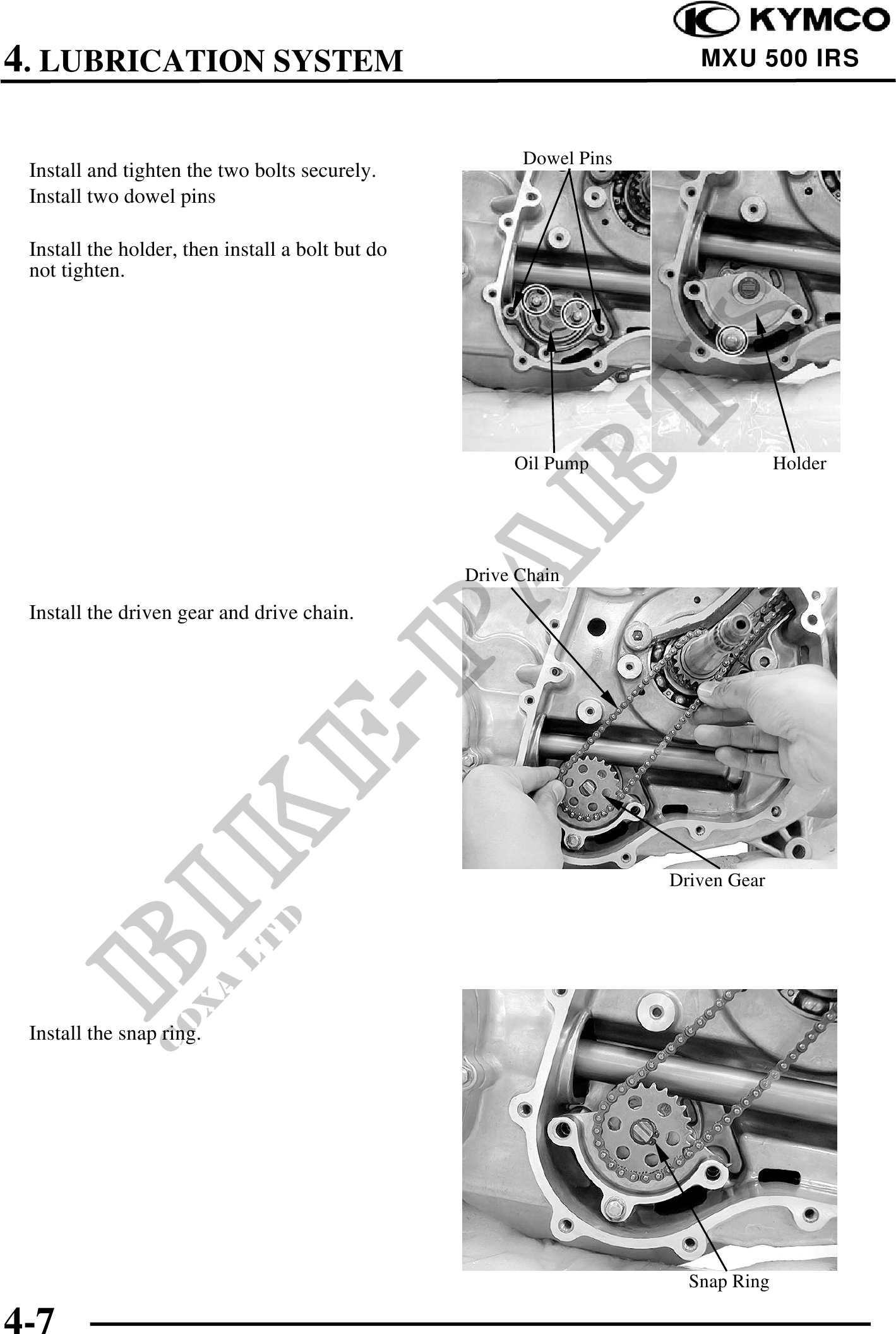

          4. LUBRICATION SYSTEM                                                   MXU 500 IRS


                                                        Dowel Pins
 Install and tighten the two bolts securely.
 Install two dowel pins

 Install the holder, then install a bolt but do
 not tighten.




                                                       Oil Pump                    Holder




                                                  Drive Chain
 Install the driven gear and drive chain.




                                                                     Driven Gear




 Install the snap ring.




                                                                       Snap Ring

4-7
