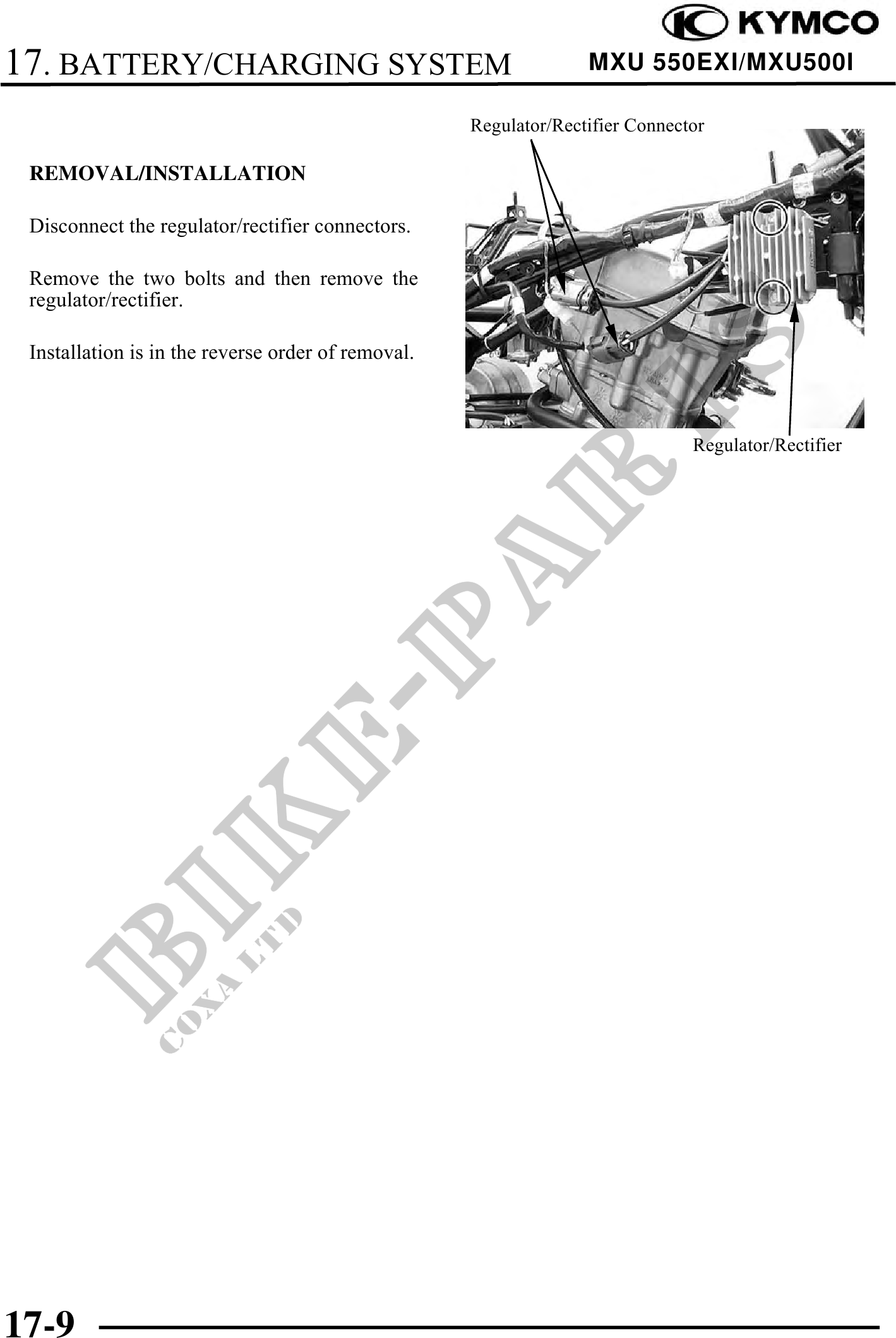

          17. BATTERY/CHARGING SYSTEM                                       MXU 550EXI/MXU500I

                                                    Regulator/Rectifier Connector

 REMOVAL/INSTALLATION

 Disconnect the regulator/rectifier connectors.

 Remove the two bolts and then remove the
 regulator/rectifier.

 Installation is in the reverse order of removal.



                                                                               Regulator/Rectifier




17-9
