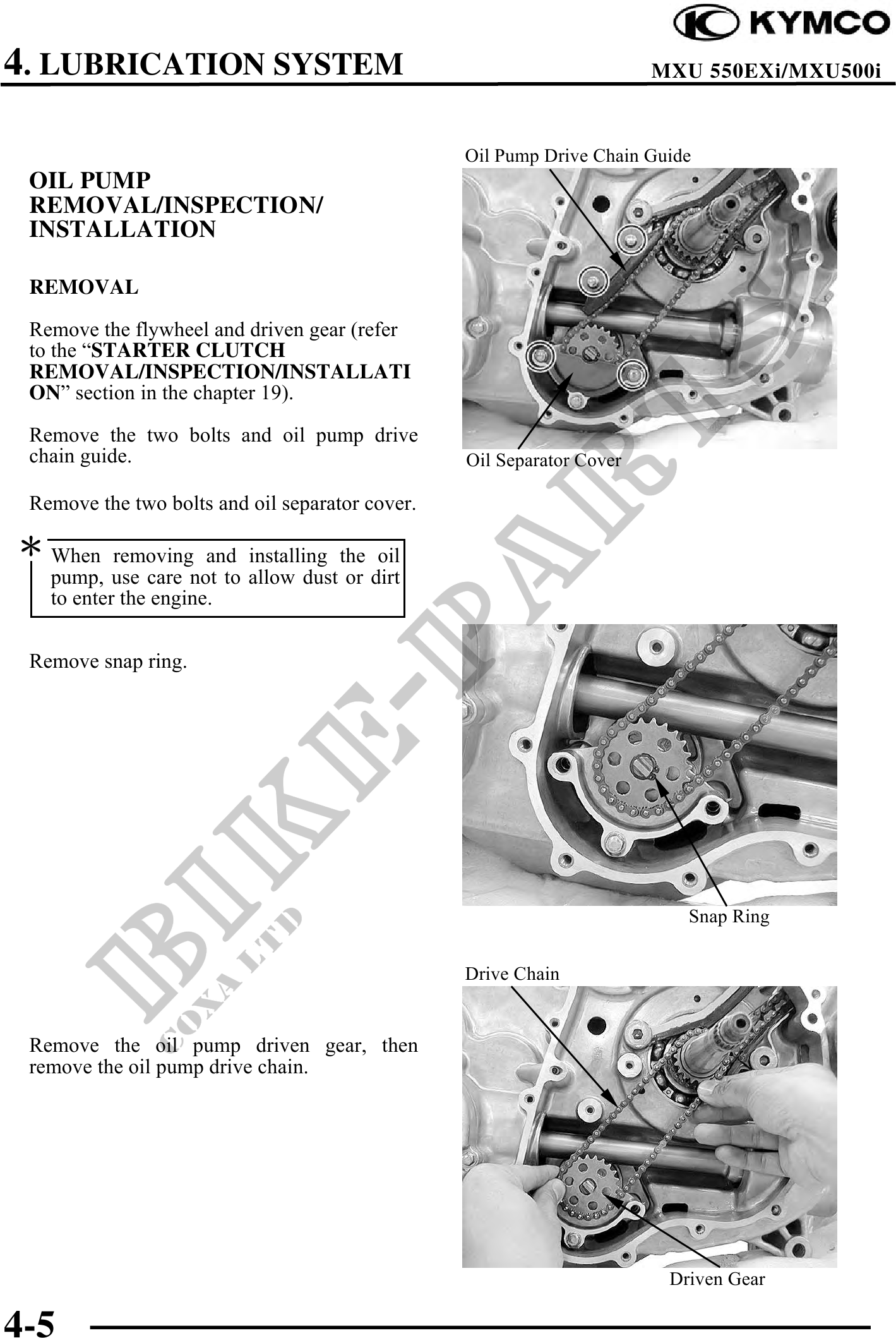

4. LUBRICATION SYSTEM MXU 550EXi/MXU500i
Oil Pump Drive Chain Guide
OIL PUMP
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Remove the flywheel and driven gear (refer
to the "STARTER CLUTCH
REMOVAL/INSPECTION/INSTALLATI
ON" section in the chapter 19).
Remove the two bolts and oil pump drive
chain guide. Oil Separator Cover
Remove the two bolts and oil separator cover.
When removing and installing the oil
pump, use care not to allow dust or dirt
to enter the engine.
Remove snap ring.
Snap Ring
Drive Chain
Remove the oil pump driven gear, then
remove the oil pump drive chain.
Driven Gear
4-5
