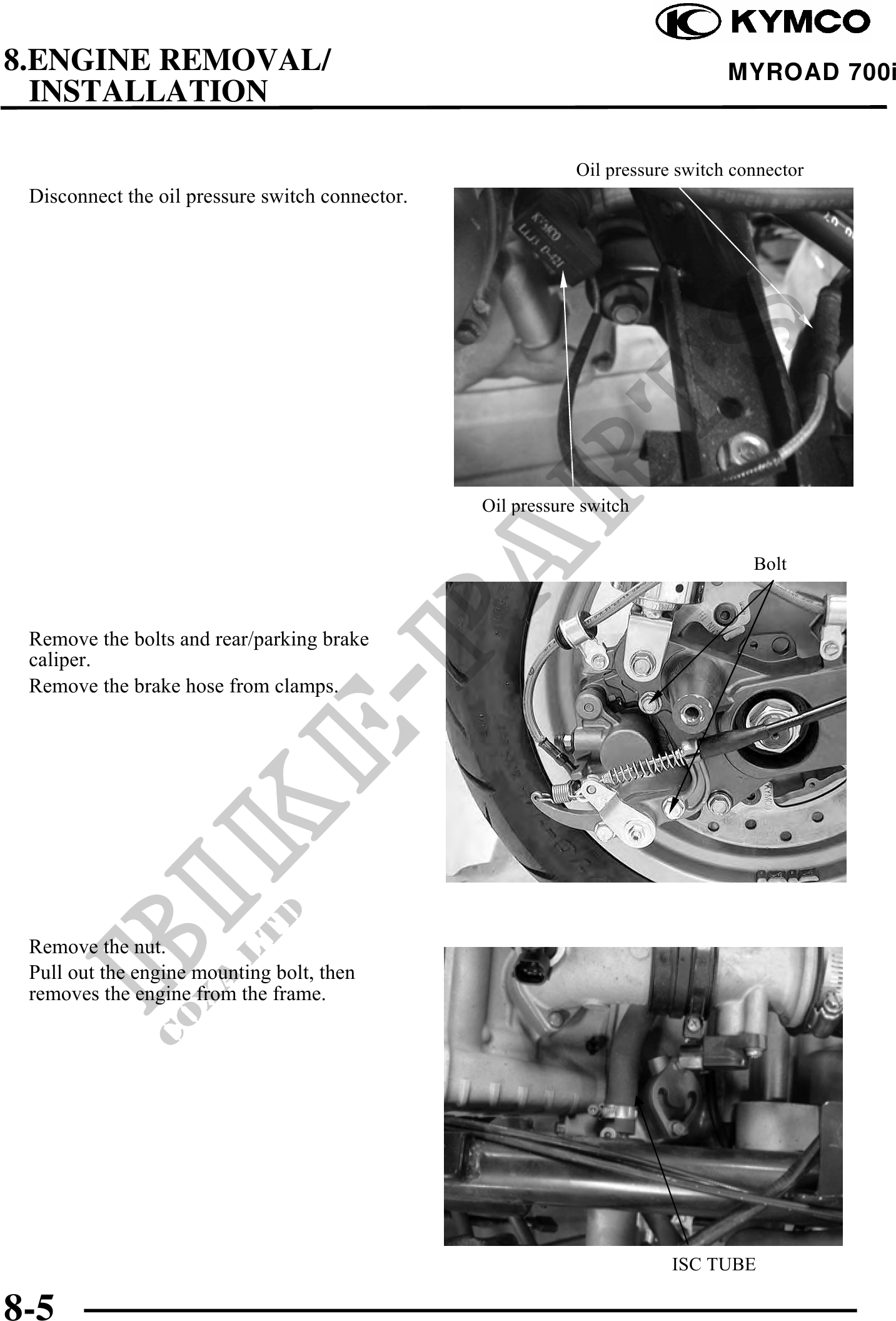

          8.ENGINE REMOVAL/                                                               MYROAD 700i
  INSTALLATION

                                                             Oil pressure switch connector
 Disconnect the oil pressure switch connector.




                                                 Oil pressure switch


                                                                                   Bolt


 Remove the bolts and rear/parking brake
 caliper.
 Remove the brake hose from clamps.




 Remove the nut.
 Pull out the engine mounting bolt, then
 removes the engine from the frame.




                                                                         ISC TUBE
