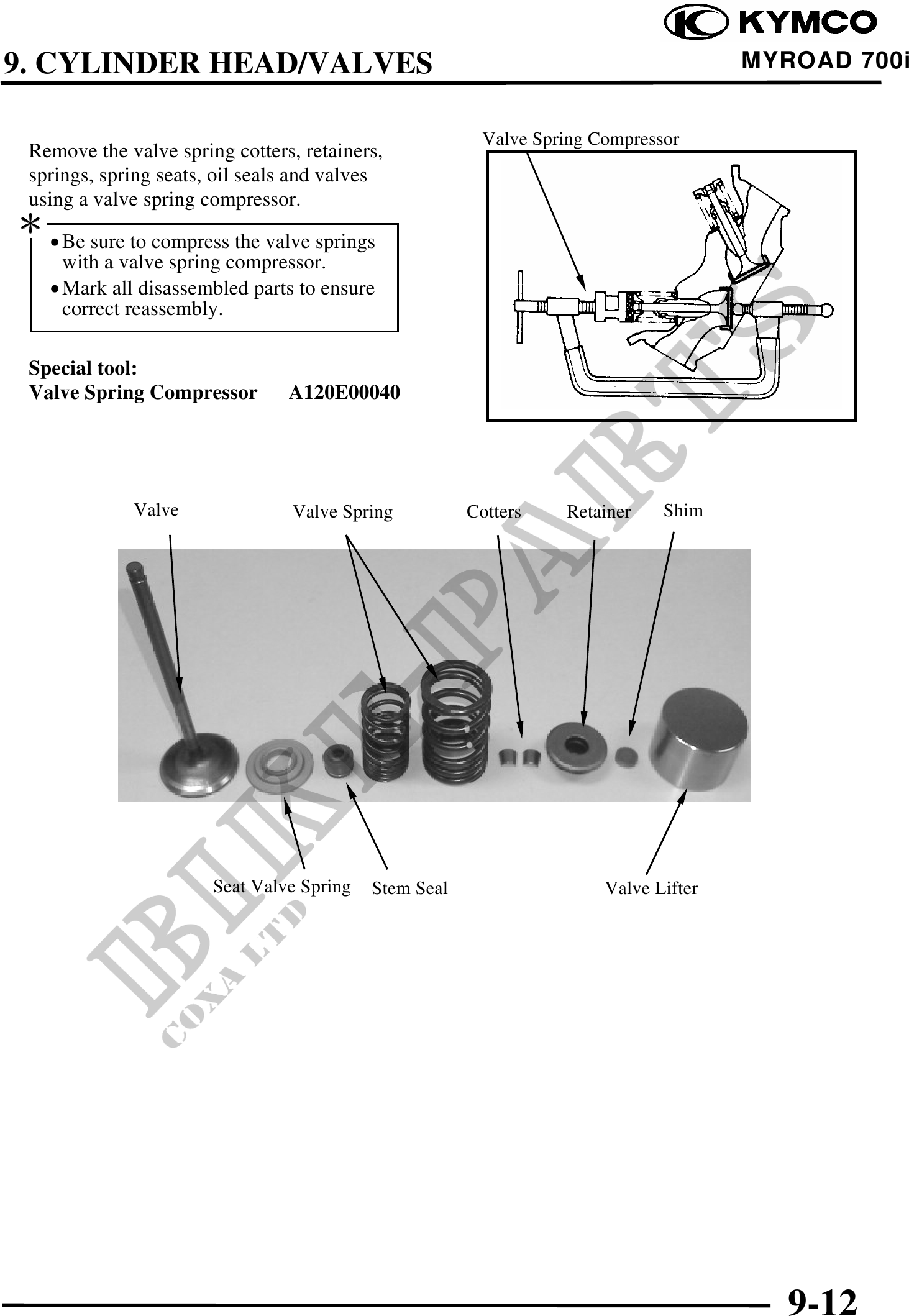

          9. CYLINDER HEAD/VALVES                                                              MYROAD 700i


                                                        Valve Spring Compressor
 Remove the valve spring cotters, retainers,
 springs, spring seats, oil seals and valves
 using a valve spring compressor.
 · Be sure to compress the valve springs
     with a valve spring compressor.
   · Mark all disassembled parts to ensure
     correct reassembly.

 Special tool:
 Valve Spring Compressor        A120E00040




             Valve               Valve Spring          Cotters   Retainer    Shim




                       Seat Valve Spring   Stem Seal                  Valve Lifter




                                                                                        9-12
