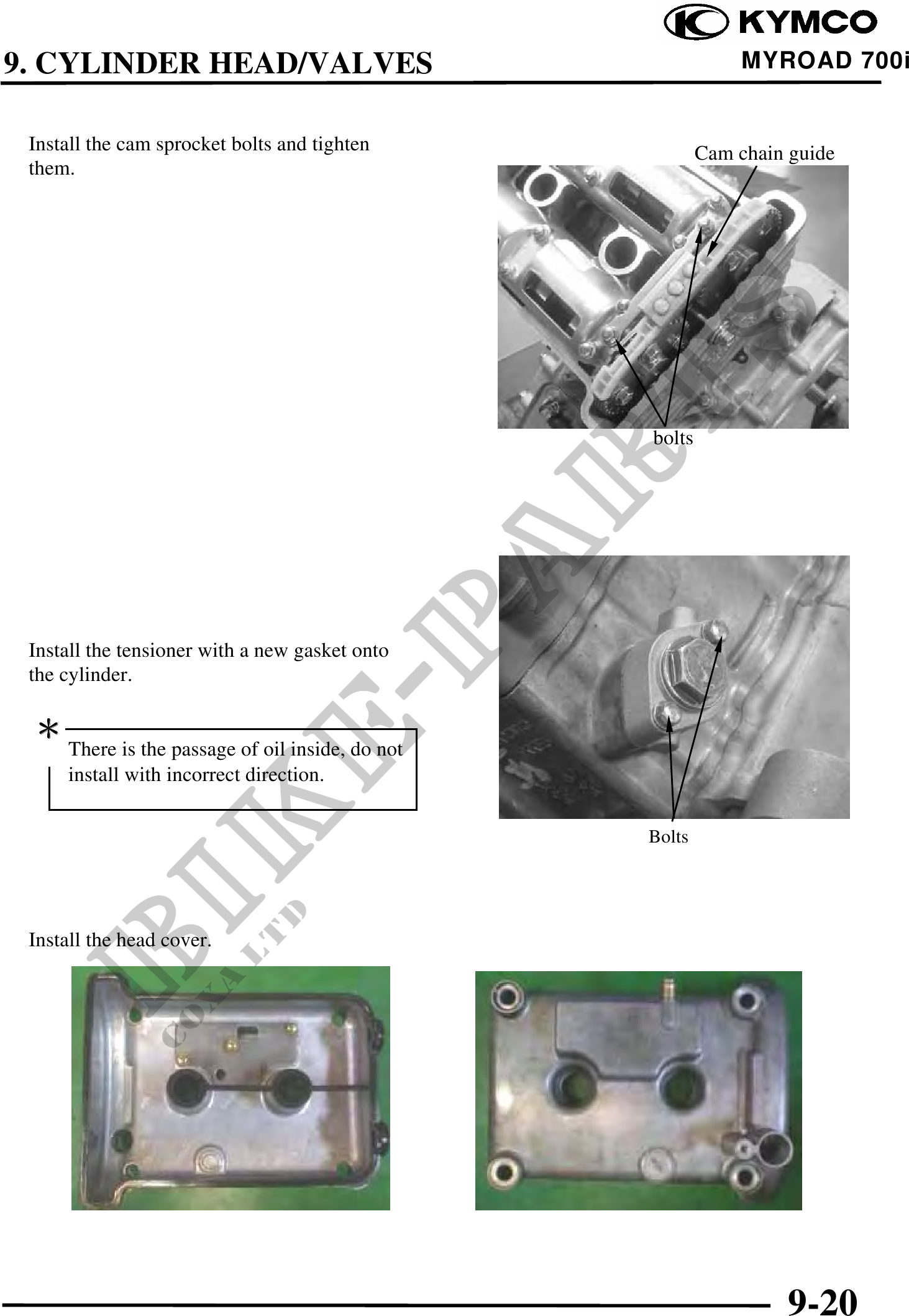

          9. CYLINDER HEAD/VALVES                                        MYROAD 700i


 Install the cam sprocket bolts and tighten               Cam chain guide
 them.




                                                  bolts




 Install the tensioner with a new gasket onto
 the cylinder.


     There is the passage of oil inside, do not
     install with incorrect direction.

                                                  Bolts




 Install the head cover.




                                                                   9-20
