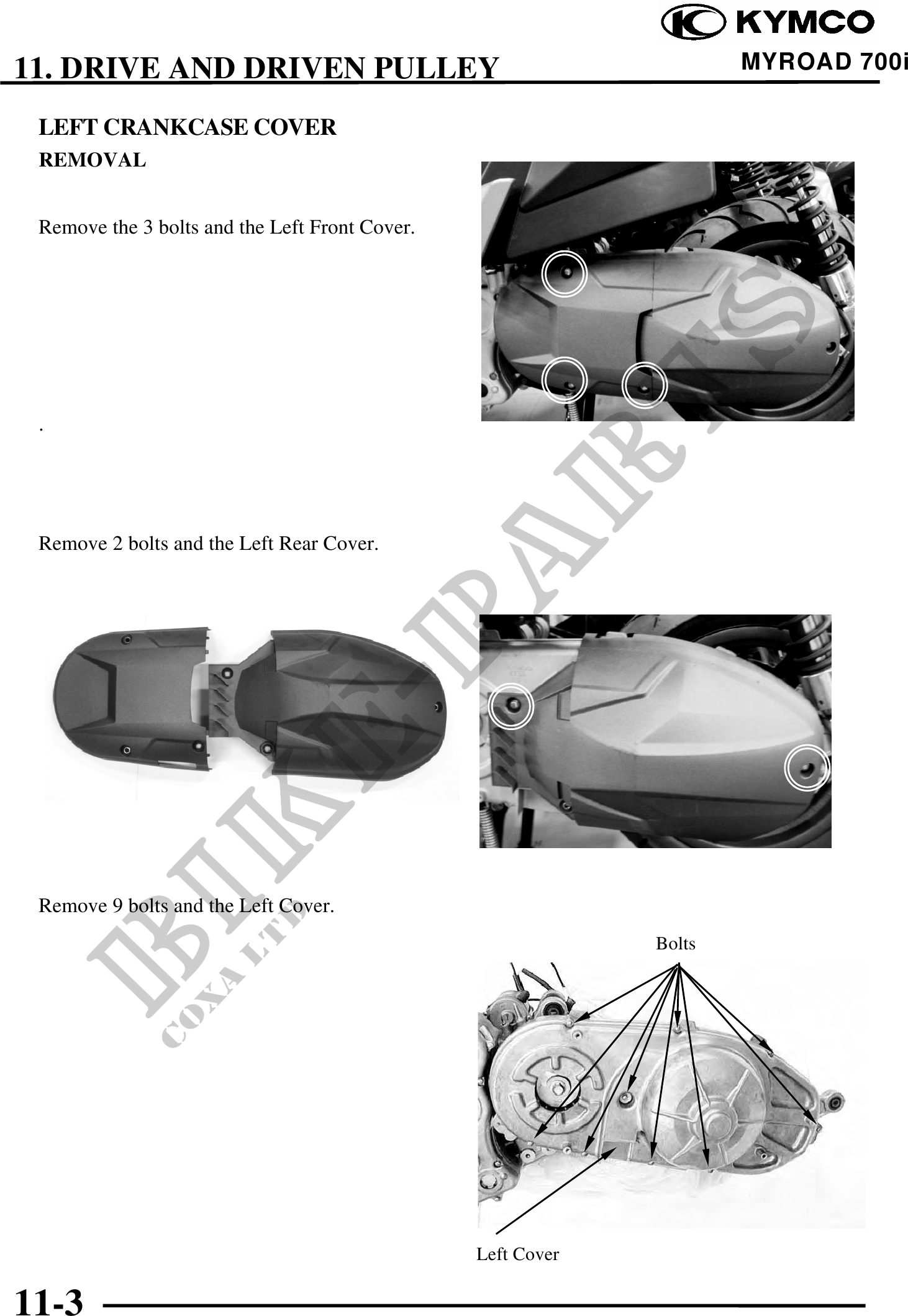

11. DRIVE AND DRIVEN PULLEY MYROAD 700i
LEFT CRANKCASE COVER
REMOVAL
Remove the 3 bolts and the Left Front Cover.
.
Remove 2 bolts and the Left Rear Cover.
Remove 9 bolts and the Left Cover.
Bolts
Left Cover
11-3
