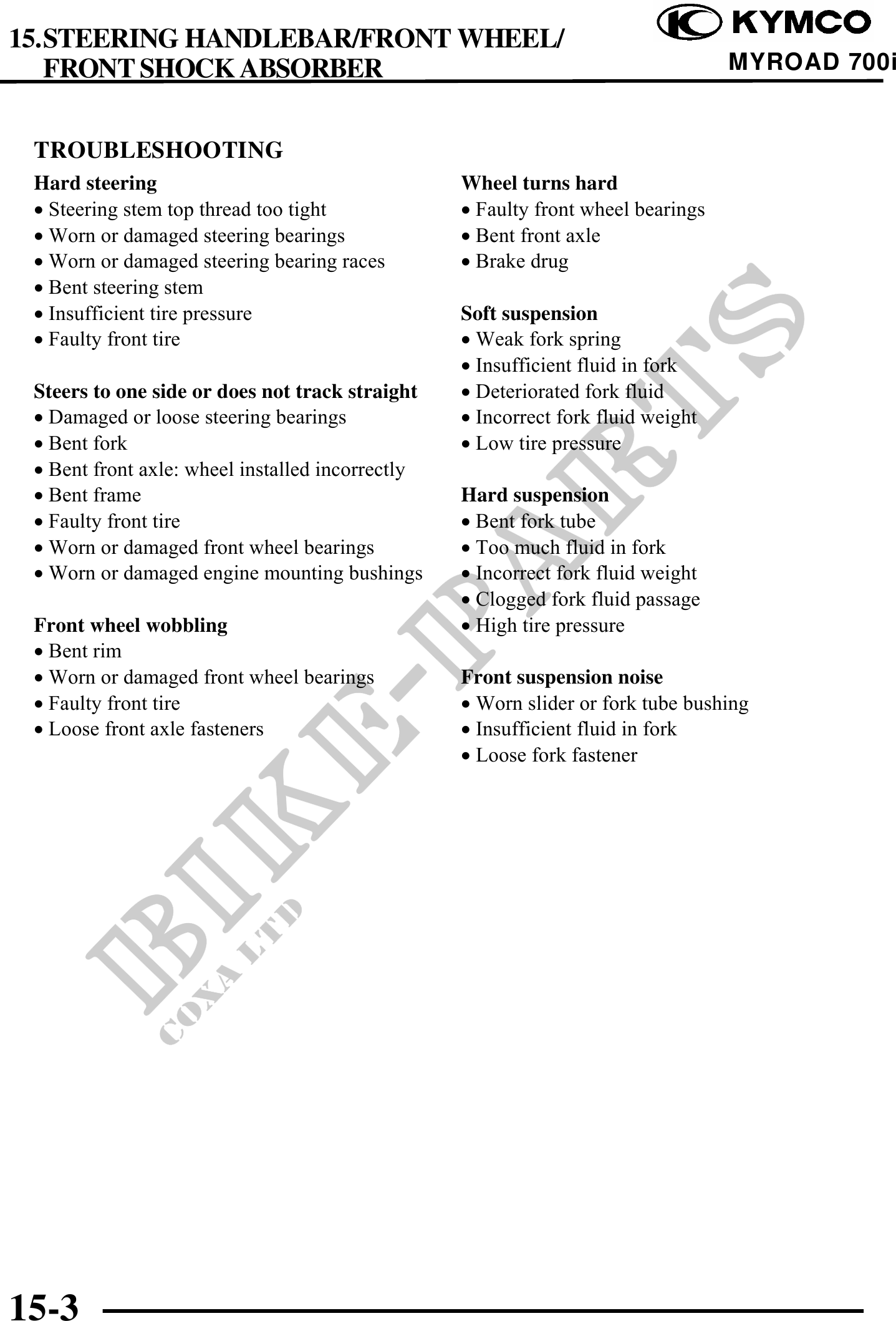

          15. STEERING HANDLEBAR/FRONT WHEEL/
    FRONT SHOCK ABSORBER                                                          MYROAD 700i


 TROUBLESHOOTING
 Hard steering                                    Wheel turns hard
 · Steering stem top thread too tight             · Faulty front wheel bearings
 · Worn or damaged steering bearings              · Bent front axle
 · Worn or damaged steering bearing races         · Brake drug
 · Bent steering stem
 · Insufficient tire pressure                     Soft suspension
 · Faulty front tire                              · Weak fork spring
                                                  · Insufficient fluid in fork
 Steers to one side or does not track straight    · Deteriorated fork fluid
 · Damaged or loose steering bearings             · Incorrect fork fluid weight
 · Bent fork                                      · Low tire pressure
 · Bent front axle: wheel installed incorrectly
 · Bent frame                                     Hard suspension
 · Faulty front tire                              · Bent fork tube
 · Worn or damaged front wheel bearings           · Too much fluid in fork
 · Worn or damaged engine mounting bushings       · Incorrect fork fluid weight
                                                  · Clogged fork fluid passage
 Front wheel wobbling                             · High tire pressure
 · Bent rim
 · Worn or damaged front wheel bearings           Front suspension noise
 · Faulty front tire                              · Worn slider or fork tube bushing
 · Loose front axle fasteners                     · Insufficient fluid in fork
                                                  · Loose fork fastener




15-3
