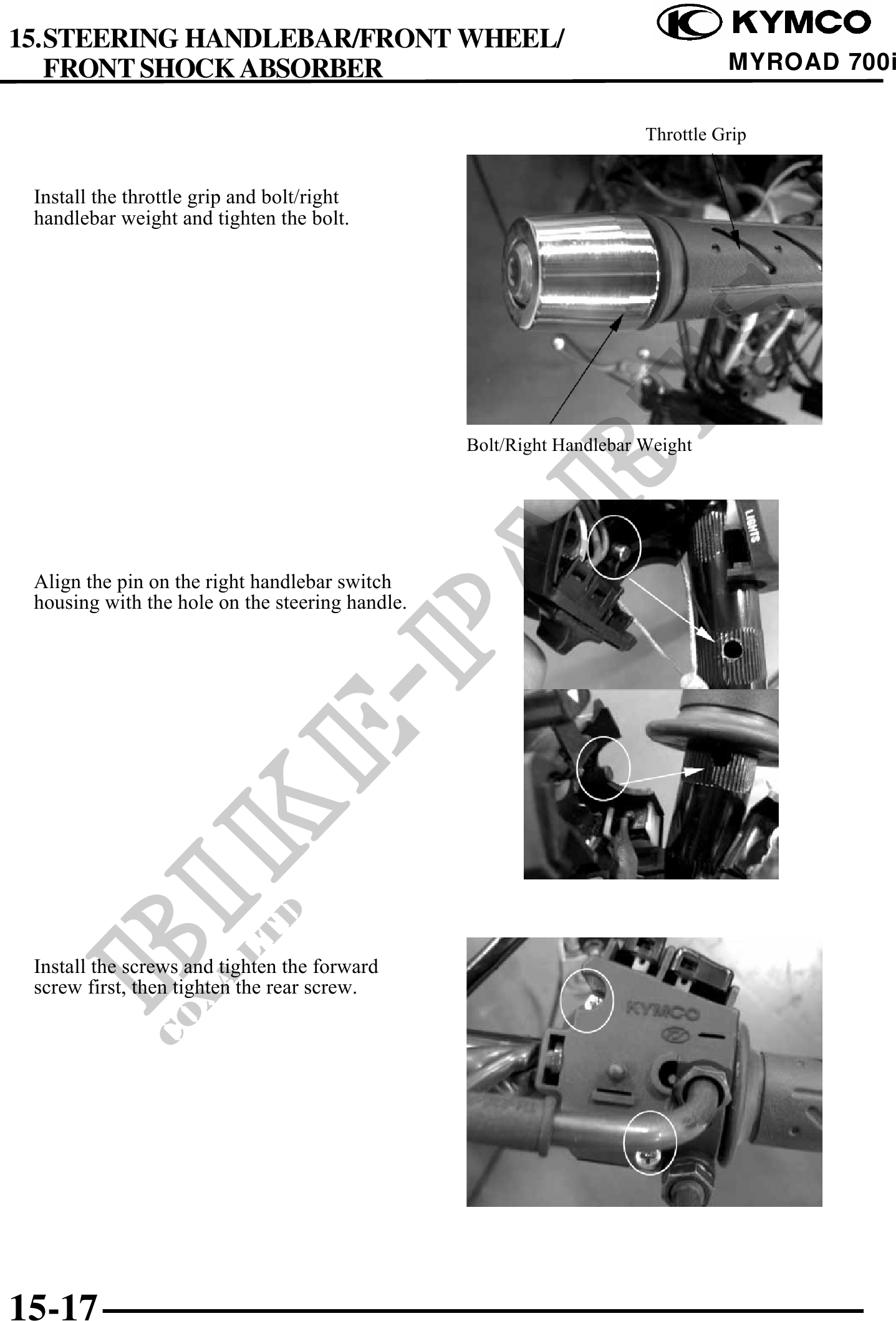

          15. STEERING HANDLEBAR/FRONT WHEEL/
    FRONT SHOCK ABSORBER                                                        MYROAD 700i

                                                                      Throttle Grip


 Install the throttle grip and bolt/right
 handlebar weight and tighten the bolt.




                                                 Bolt/Right Handlebar Weight




 Align the pin on the right handlebar switch
 housing with the hole on the steering handle.




 Install the screws and tighten the forward
 screw first, then tighten the rear screw.




15-17
