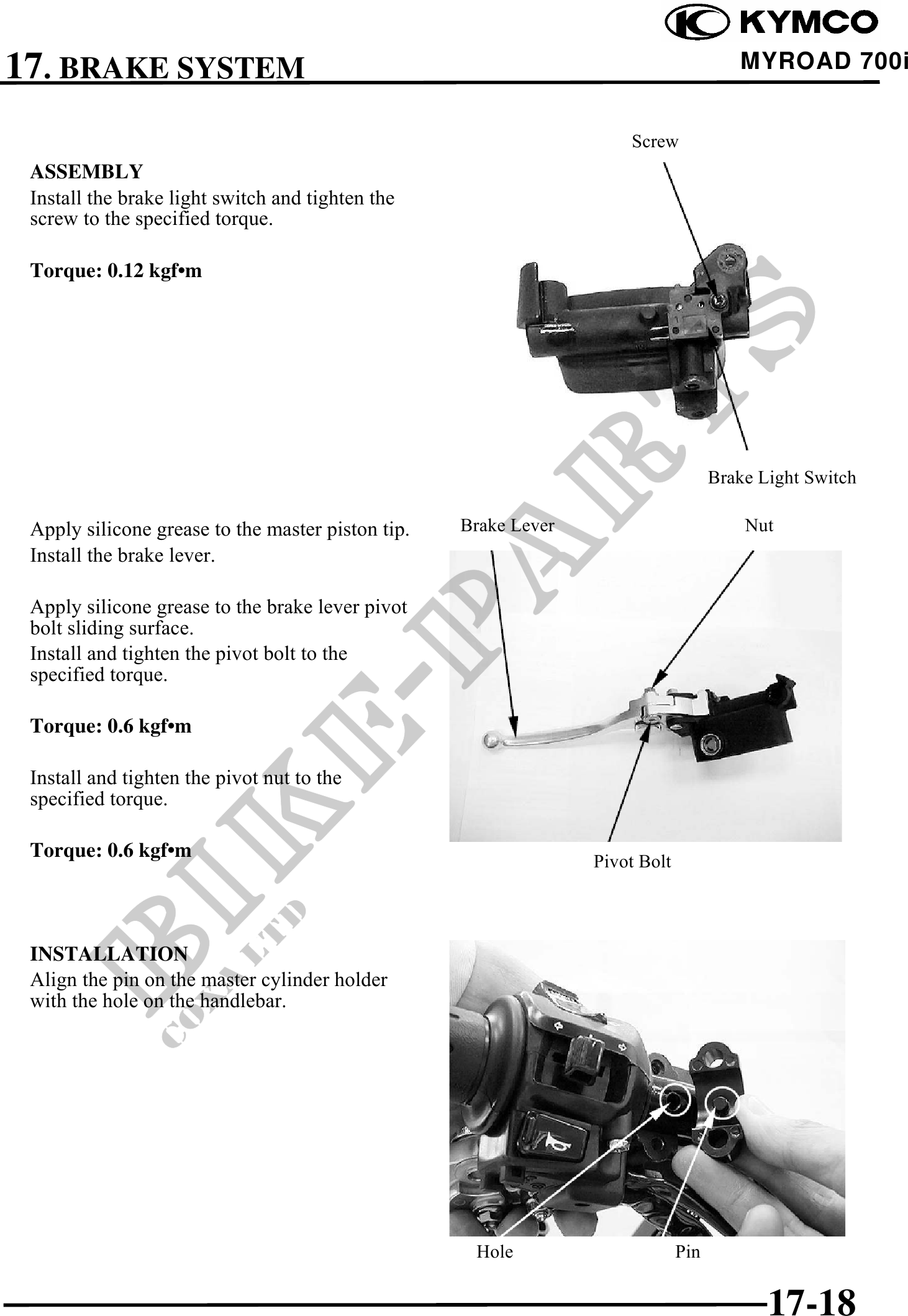

17. BRAKE SYSTEM MYROAD 700i
Screw
ASSEMBLY
Install the brake light switch and tighten the
screw to the specified torque.
Torque: 0.12 kgf·m
Brake Light Switch
Apply silicone grease to the master piston tip. Brake Lever Nut
Install the brake lever.
Apply silicone grease to the brake lever pivot
bolt sliding surface.
Install and tighten the pivot bolt to the
specified torque.
Torque: 0.6 kgf·m
Install and tighten the pivot nut to the
specified torque.
Torque: 0.6 kgf·m
Pivot Bolt
INSTALLATION
Align the pin on the master cylinder holder
with the hole on the handlebar.
Hole Pin
17-18
