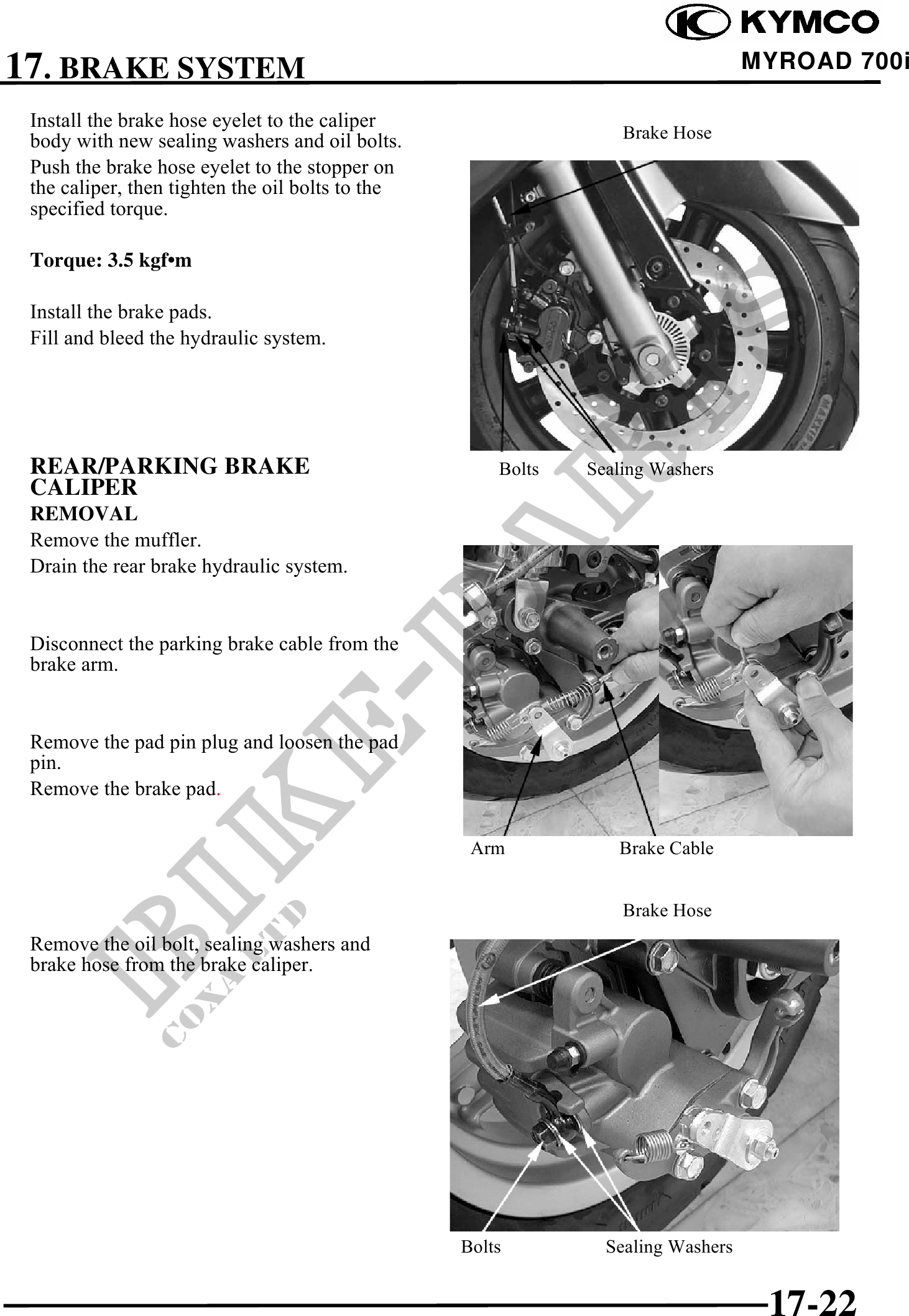

17. BRAKE SYSTEM MYROAD 700i
Install the brake hose eyelet to the caliper
body with new sealing washers and oil bolts. Brake Hose
Push the brake hose eyelet to the stopper on
the caliper, then tighten the oil bolts to the
specified torque.
Torque: 3.5 kgf·m
Install the brake pads.
Fill and bleed the hydraulic system.
REAR/PARKING BRAKE Bolts Sealing Washers
CALIPER
REMOVAL
Remove the muffler.
Drain the rear brake hydraulic system.
Disconnect the parking brake cable from the
brake arm.
Remove the pad pin plug and loosen the pad
pin.
Remove the brake pad.
Arm Brake Cable
Brake Hose
Remove the oil bolt, sealing washers and
brake hose from the brake caliper.
Bolts Sealing Washers
17-22
