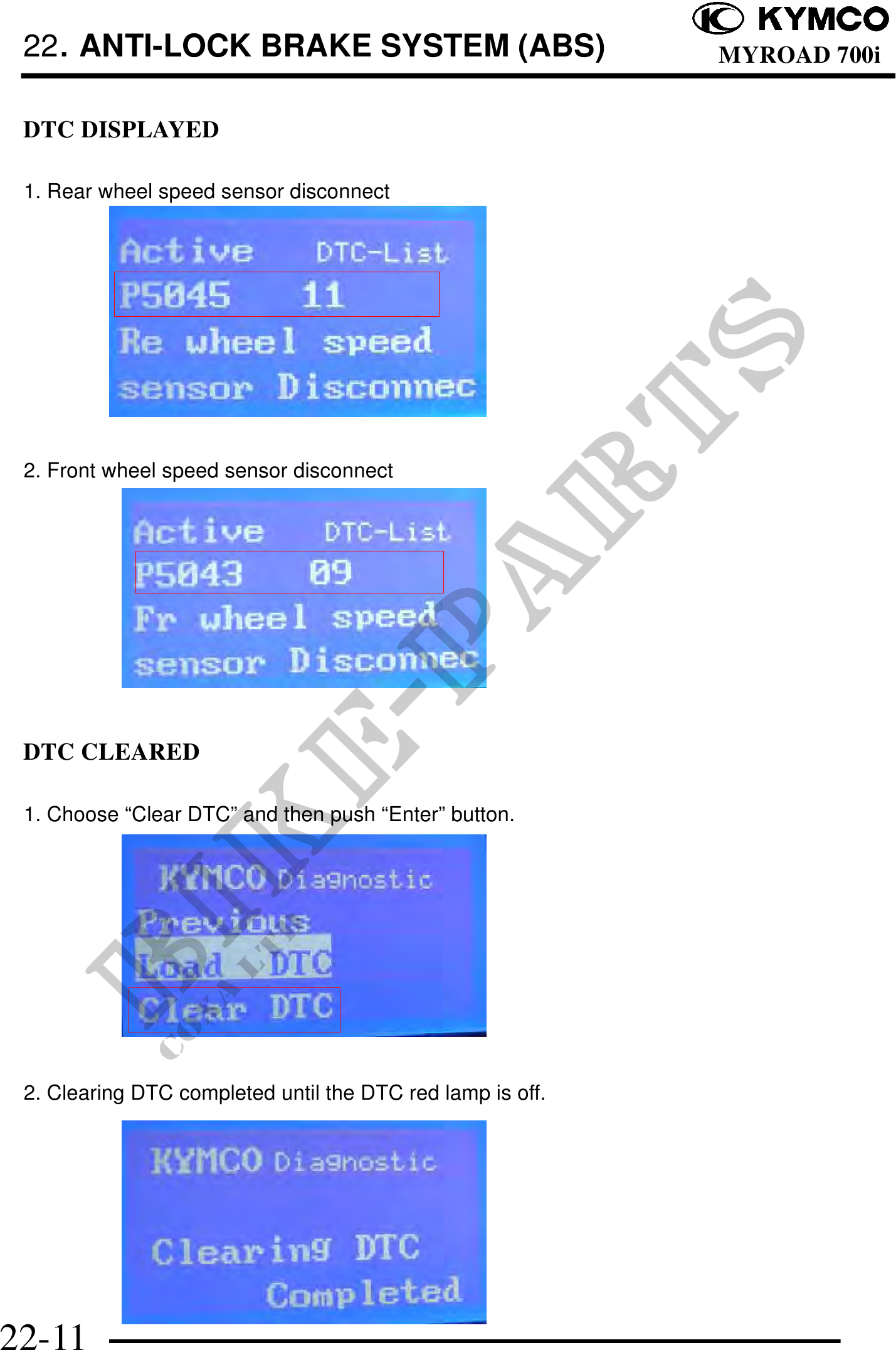

           22.ANTI-LOCK BRAKE SYSTEM (ABS)                            MYROAD 700i


 DTC DISPLAYED

 1. Rear wheel speed sensor disconnect




 2. Front wheel speed sensor disconnect




 DTC CLEARED

 1. Choose "Clear DTC" and then push "Enter" button.




 2. Clearing DTC completed until the DTC red lamp is off.




22-11
