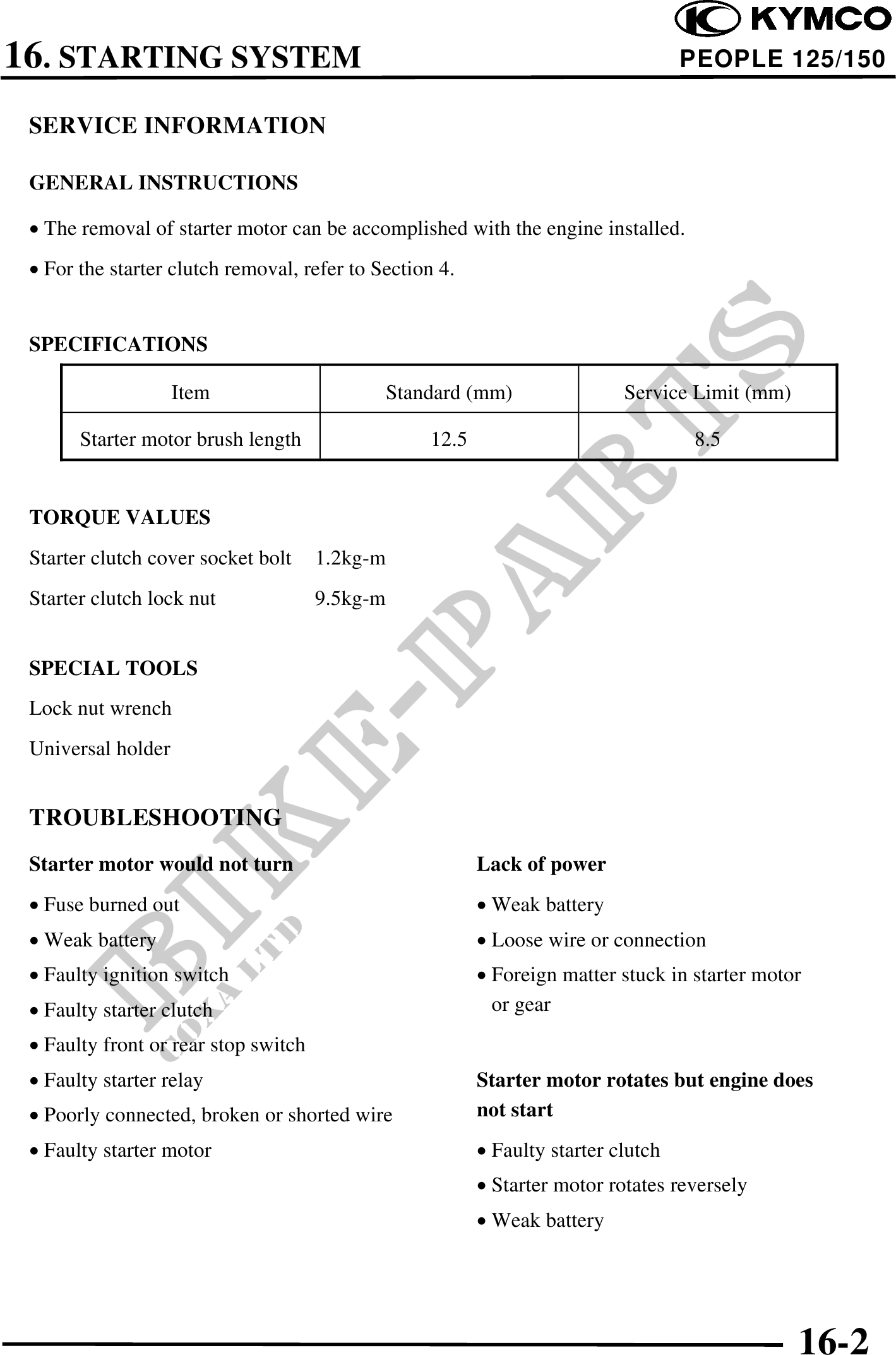

16. STARTING SYSTEM PEOPLE 125/150
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· The removal of starter motor can be accomplished with the engine installed.
· For the starter clutch removal, refer to Section 4.
SPECIFICATIONS
Item Standard (mm) Service Limit (mm)
Starter motor brush length 12.5 8.5
TORQUE VALUES
Starter clutch cover socket bolt 1.2kg-m
Starter clutch lock nut 9.5kg-m
SPECIAL TOOLS
Lock nut wrench
Universal holder
TROUBLESHOOTING
Starter motor would not turn Lack of power
· Fuse burned out · Weak battery
· Weak battery · Loose wire or connection
· Faulty ignition switch · Foreign matter stuck in starter motor
· Faulty starter clutch or gear
· Faulty front or rear stop switch
· Faulty starter relay Starter motor rotates but engine does
· Poorly connected, broken or shorted wire not start
· Faulty starter motor · Faulty starter clutch
· Starter motor rotates reversely
· Weak battery
16-2
