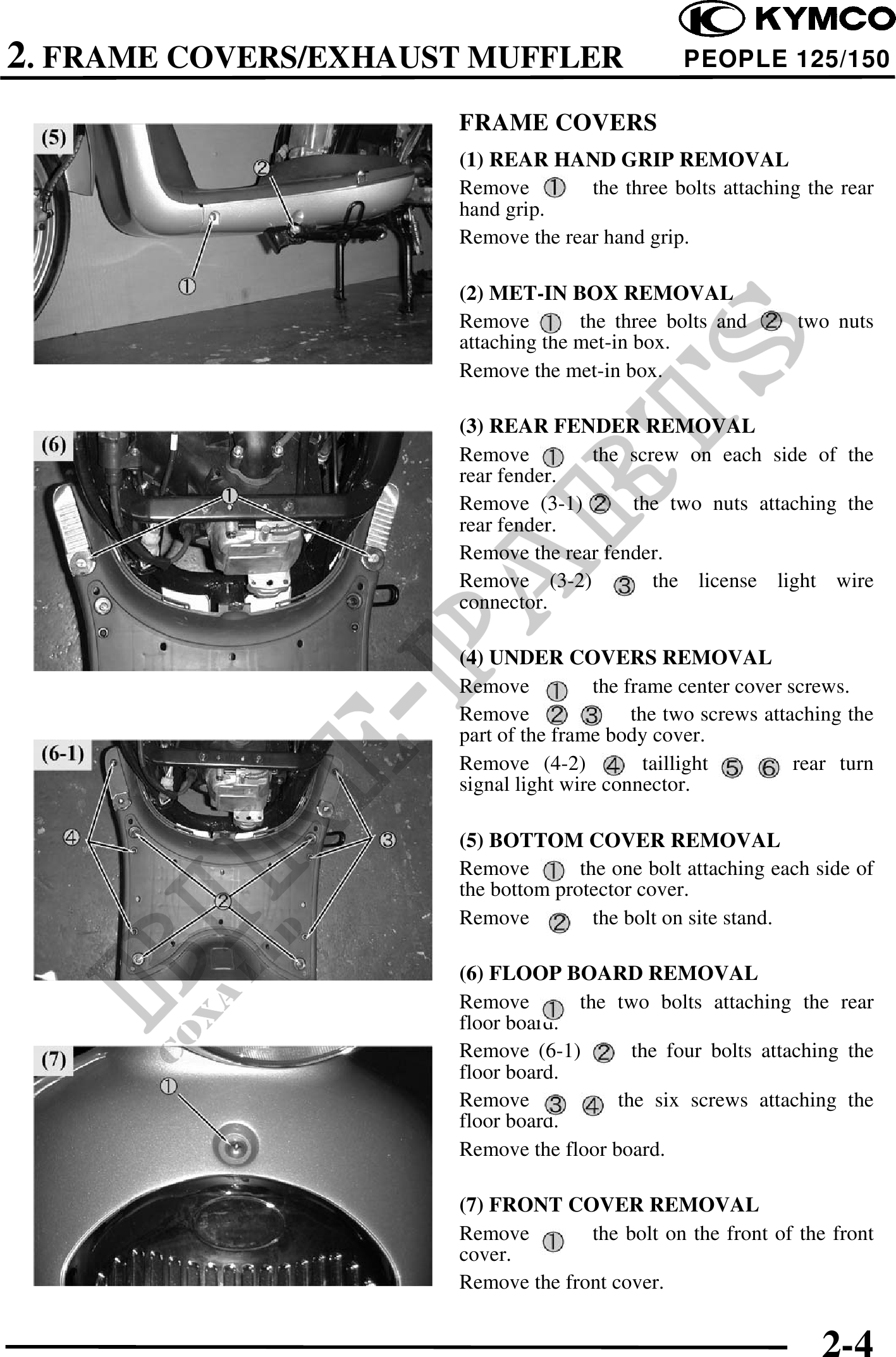

2. FRAME COVERS/EXHAUST MUFFLER PEOPLE 125/150
FRAME COVERS
(1) REAR HAND GRIP REMOVAL
Remove the three bolts attaching the rear
hand grip.
Remove the rear hand grip.
(2) MET-IN BOX REMOVAL
Remove the three bolts and two nuts
attaching the met-in box.
Remove the met-in box.
(3) REAR FENDER REMOVAL
Remove the screw on each side of the
rear fender.
Remove (3-1) the two nuts attaching the
rear fender.
Remove the rear fender.
Remove (3-2) the license light wire
connector.
(4) UNDER COVERS REMOVAL
Remove the frame center cover screws.
Remove the two screws attaching the
part of the frame body cover.
Remove (4-2) taillight rear turn
signal light wire connector.
(5) BOTTOM COVER REMOVAL
Remove the one bolt attaching each side of
the bottom protector cover.
Remove the bolt on site stand.
(6) FLOOP BOARD REMOVAL
Remove the two bolts attaching the rear
floor board.
Remove (6-1) the four bolts attaching the
floor board.
Remove the six screws attaching the
floor board.
Remove the floor board.
(7) FRONT COVER REMOVAL
Remove the bolt on the front of the front
cover.
Remove the front cover.
2-4
