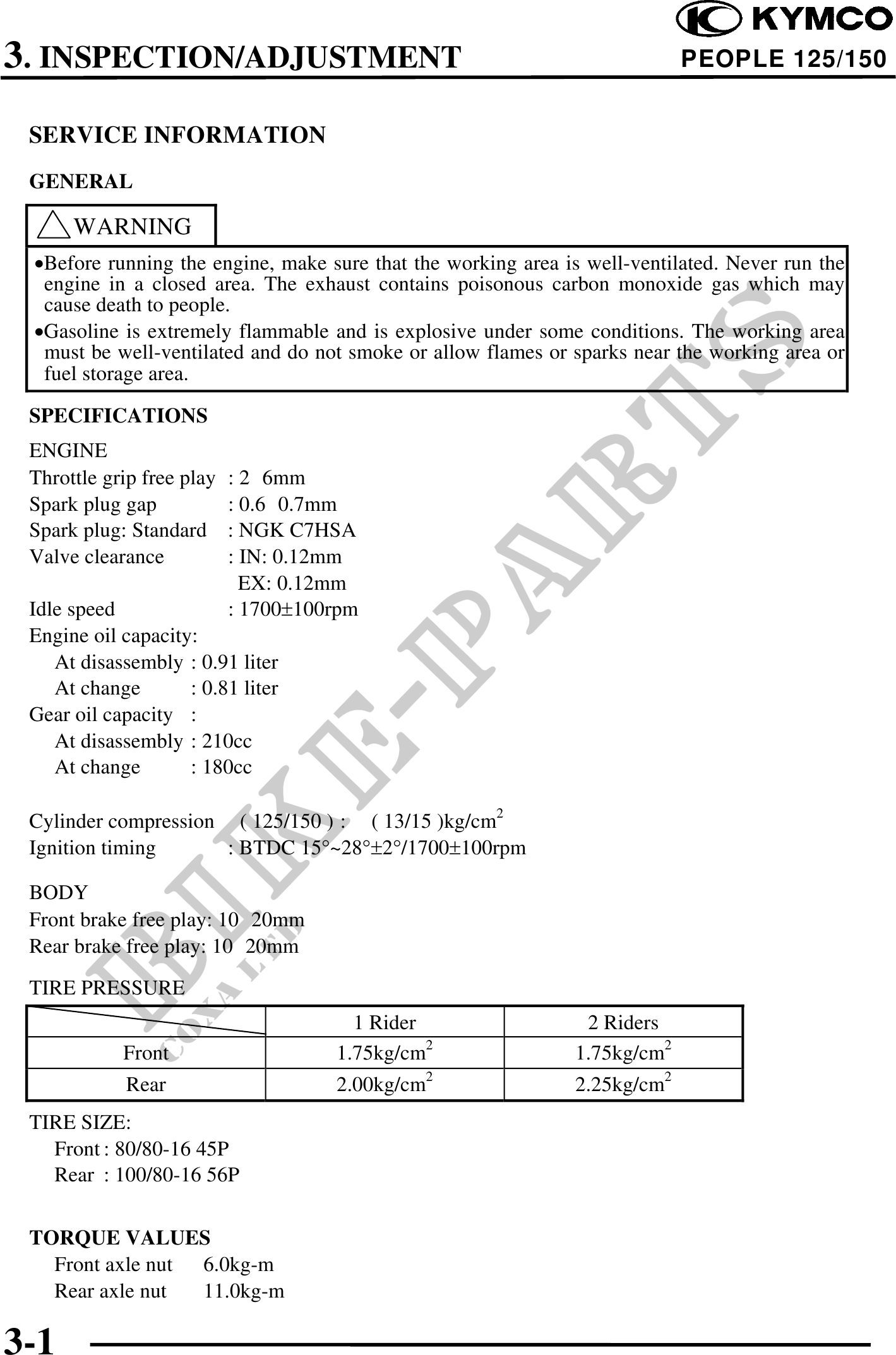

          3. INSPECTION/ADJUSTMENT                                                    PEOPLE 125/150


 SERVICE INFORMATION
 GENERAL

      WARNING
 ·Before running the engine, make sure that the working area is well-ventilated. Never run the
  engine in a closed area. The exhaust contains poisonous carbon monoxide gas which may
  cause death to people.
 ·Gasoline is extremely flammable and is explosive under some conditions. The working area
  must be well-ventilated and do not smoke or allow flames or sparks near the working area or
  fuel storage area.

 SPECIFICATIONS
 ENGINE
 Throttle grip free play   : 2 6mm
 Spark plug gap            : 0.6 0.7mm
 Spark plug: Standard      : NGK C7HSA
 Valve clearance           : IN: 0.12mm
                             EX: 0.12mm
 Idle speed                : 1700100rpm
 Engine oil capacity:
    At disassembly : 0.91 liter
    At change       : 0.81 liter
 Gear oil capacity :
    At disassembly : 210cc
    At change       : 180cc

                                                      2
 Cylinder compression ( 125/150 ) : ( 13/15 )kg/cm
 Ignition timing      : BTDC 15°~28°2°/1700100rpm

 BODY
 Front brake free play: 10 20mm
 Rear brake free play: 10 20mm

 TIRE PRESSURE
                                      1 Rider                   2 Riders
                                              2
            Front                   1.75kg/cm                  1.75kg/cm2
                                              2
             Rear                   2.00kg/cm                  2.25kg/cm2
 TIRE SIZE:
   Front : 80/80-16 45P
   Rear : 100/80-16 56P


 TORQUE VALUES
   Front axle nut 6.0kg-m
   Rear axle nut  11.0kg-m

3-1
