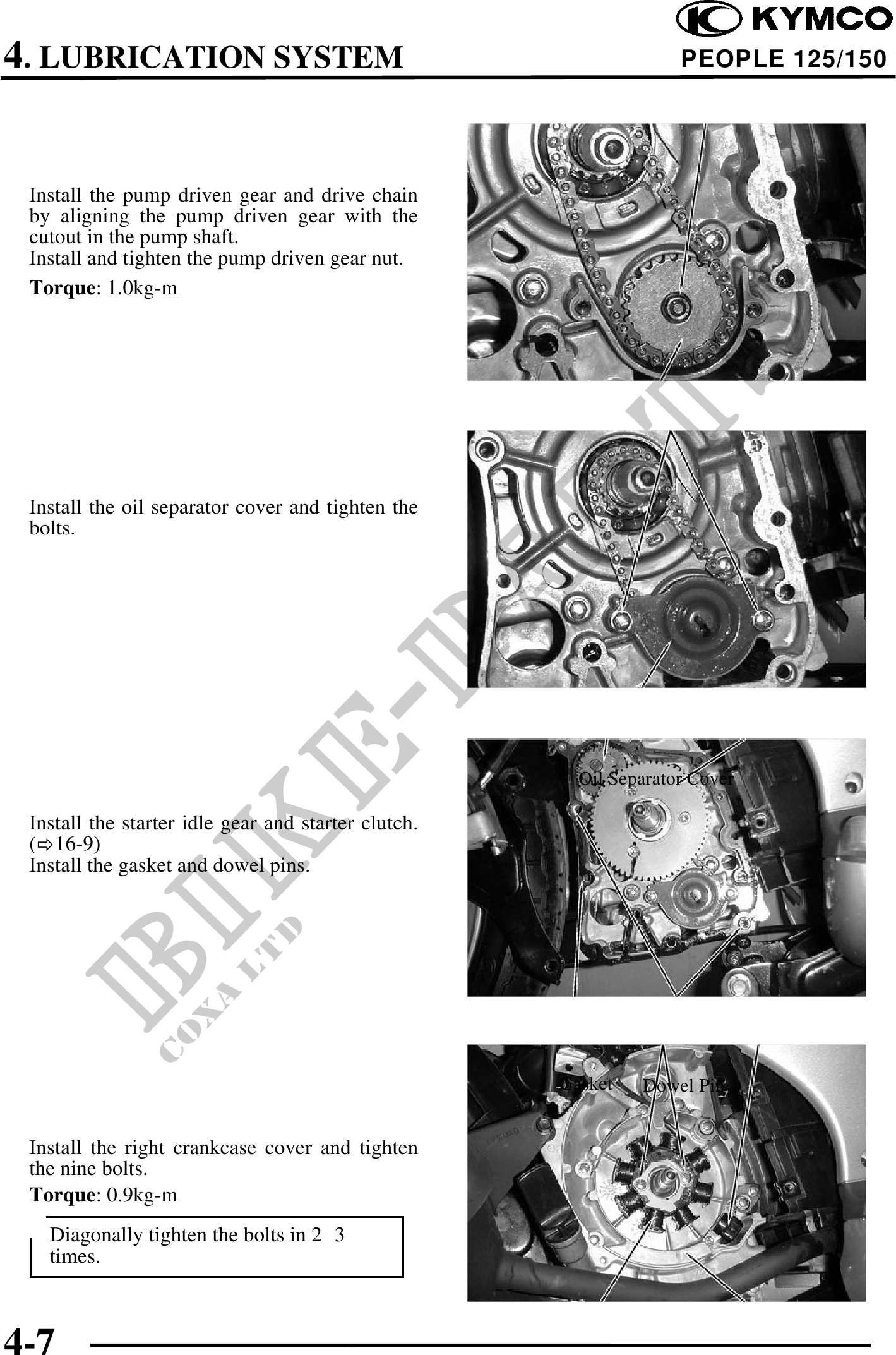

4. LUBRICATION SYSTEM PEOPLE 125/150
Install the pump driven gear and drive chain Nut
by aligning the pump driven gear with the
cutout in the pump shaft.
Install and tighten the pump driven gear nut.
Torque: 1.0kg-m
Pump Driven Gear
Install the oil separator cover and tighten the Bolts
bolts.
Oil Separator Cover
Starter Idle Gear Starter Clutch
Install the starter idle gear and starter clutch.
( 16-9)
Install the gasket and dowel pins.
Gasket Dowel Pin
Bolts Pulser Coil
Install the right crankcase cover and tighten
the nine bolts.
Torque: 0.9kg-m
Diagonally tighten the bolts in 2 3
times.
4-7
