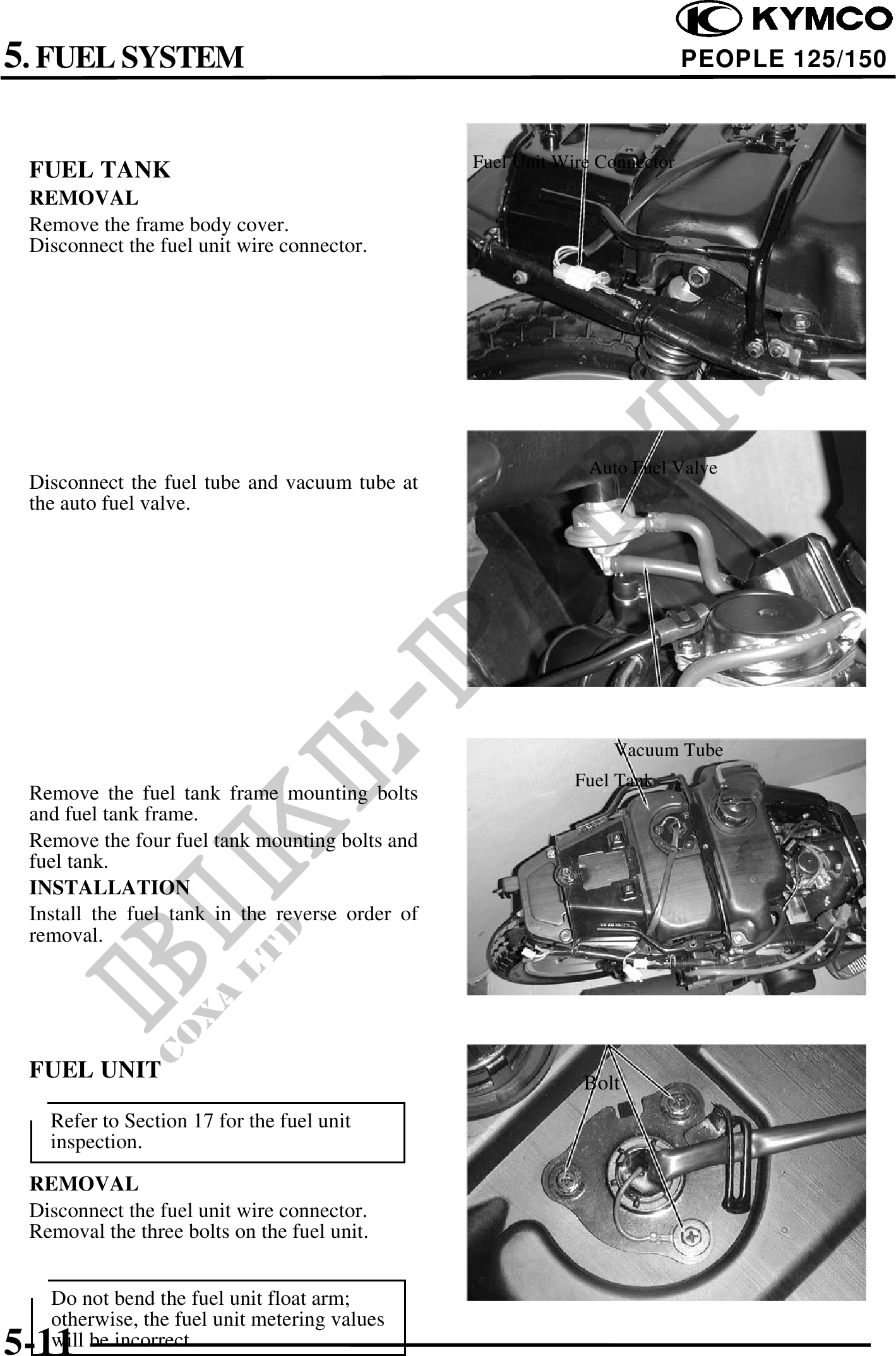

5. FUEL SYSTEM PEOPLE 125/150
Fuel Unit Wire Connector
FUEL TANK
REMOVAL
Remove the frame body cover.
Disconnect the fuel unit wire connector.
Auto Fuel Valve
Disconnect the fuel tube and vacuum tube at
the auto fuel valve.
Vacuum Tube
Fuel Tank
Remove the fuel tank frame mounting bolts
and fuel tank frame.
Remove the four fuel tank mounting bolts and
fuel tank.
INSTALLATION
Install the fuel tank in the reverse order of
removal.
FUEL UNIT Bolt
Refer to Section 17 for the fuel unit
inspection.
REMOVAL
Disconnect the fuel unit wire connector.
Removal the three bolts on the fuel unit.
Do not bend the fuel unit float arm;
otherwise, the fuel unit metering values
5-11
will be incorrect.
