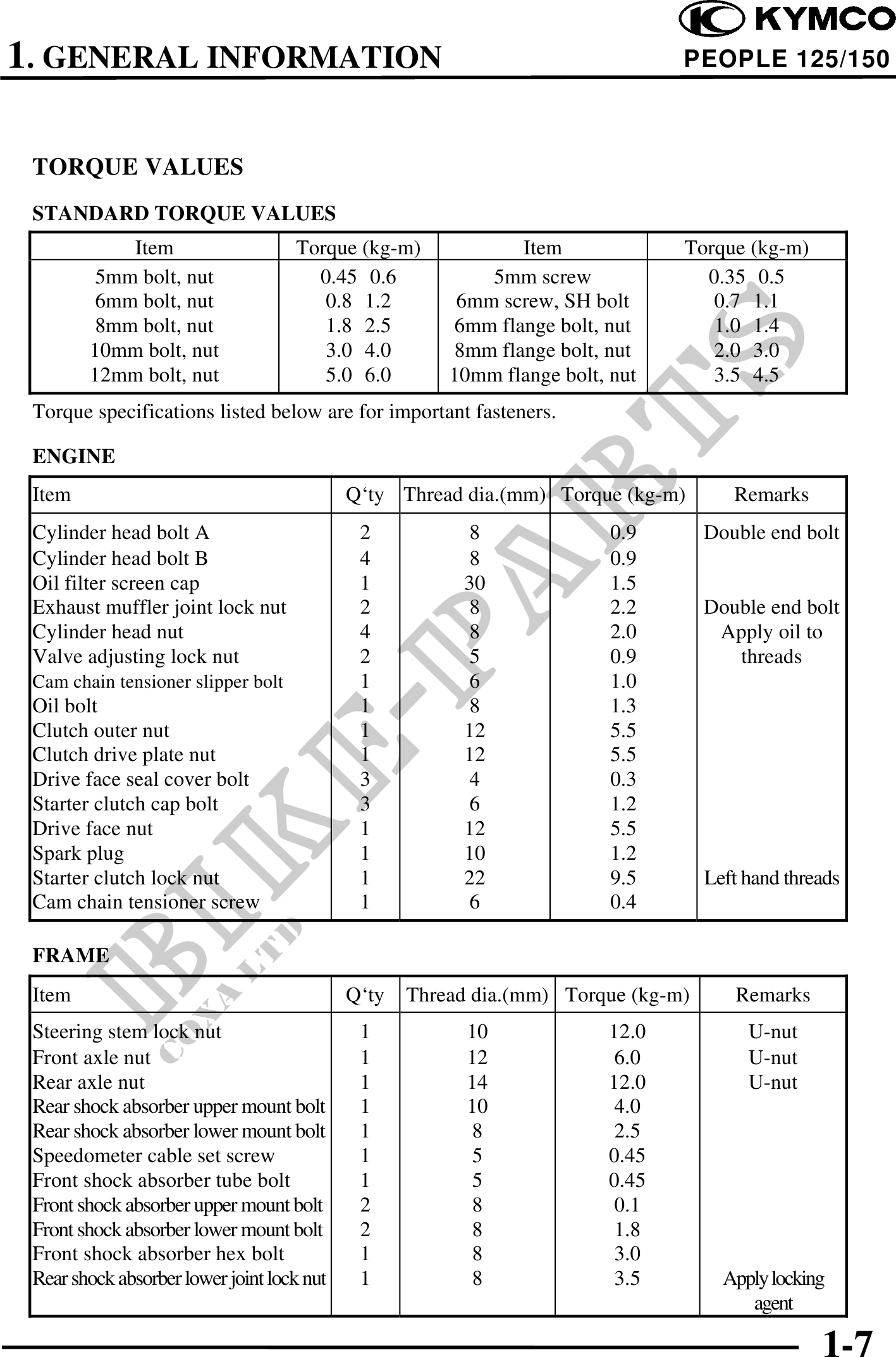

1. GENERAL INFORMATION PEOPLE 125/150
TORQUE VALUES
STANDARD TORQUE VALUES
Item Torque (kg-m) Item Torque (kg-m)
5mm bolt, nut 0.45 0.6 5mm screw 0.35 0.5
6mm bolt, nut 0.8 1.2 6mm screw, SH bolt 0.7 1.1
8mm bolt, nut 1.8 2.5 6mm flange bolt, nut 1.0 1.4
10mm bolt, nut 3.0 4.0 8mm flange bolt, nut 2.0 3.0
12mm bolt, nut 5.0 6.0 10mm flange bolt, nut 3.5 4.5
Torque specifications listed below are for important fasteners.
ENGINE
Item Q`ty Thread dia.(mm) Torque (kg-m) Remarks
Cylinder head bolt A 2 8 0.9 Double end bolt
Cylinder head bolt B 4 8 0.9
Oil filter screen cap 1 30 1.5
Exhaust muffler joint lock nut 2 8 2.2 Double end bolt
Cylinder head nut 4 8 2.0 Apply oil to
Valve adjusting lock nut 2 5 0.9 threads
Cam chain tensioner slipper bolt 1 6 1.0
Oil bolt 1 8 1.3
Clutch outer nut 1 12 5.5
Clutch drive plate nut 1 12 5.5
Drive face seal cover bolt 3 4 0.3
Starter clutch cap bolt 3 6 1.2
Drive face nut 1 12 5.5
Spark plug 1 10 1.2
Starter clutch lock nut 1 22 9.5 Left hand threads
Cam chain tensioner screw 1 6 0.4
FRAME
Item Q`ty Thread dia.(mm) Torque (kg-m) Remarks
Steering stem lock nut 1 10 12.0 U-nut
Front axle nut 1 12 6.0 U-nut
Rear axle nut 1 14 12.0 U-nut
Rear shock absorber upper mount bolt 1 10 4.0
Rear shock absorber lower mount bolt 1 8 2.5
Speedometer cable set screw 1 5 0.45
Front shock absorber tube bolt 1 5 0.45
Front shock absorber upper mount bolt 2 8 0.1
Front shock absorber lower mount bolt 2 8 1.8
Front shock absorber hex bolt 1 8 3.0
Rear shock absorber lower joint lock nut 1 8 3.5 Apply locking
agent
1-7
