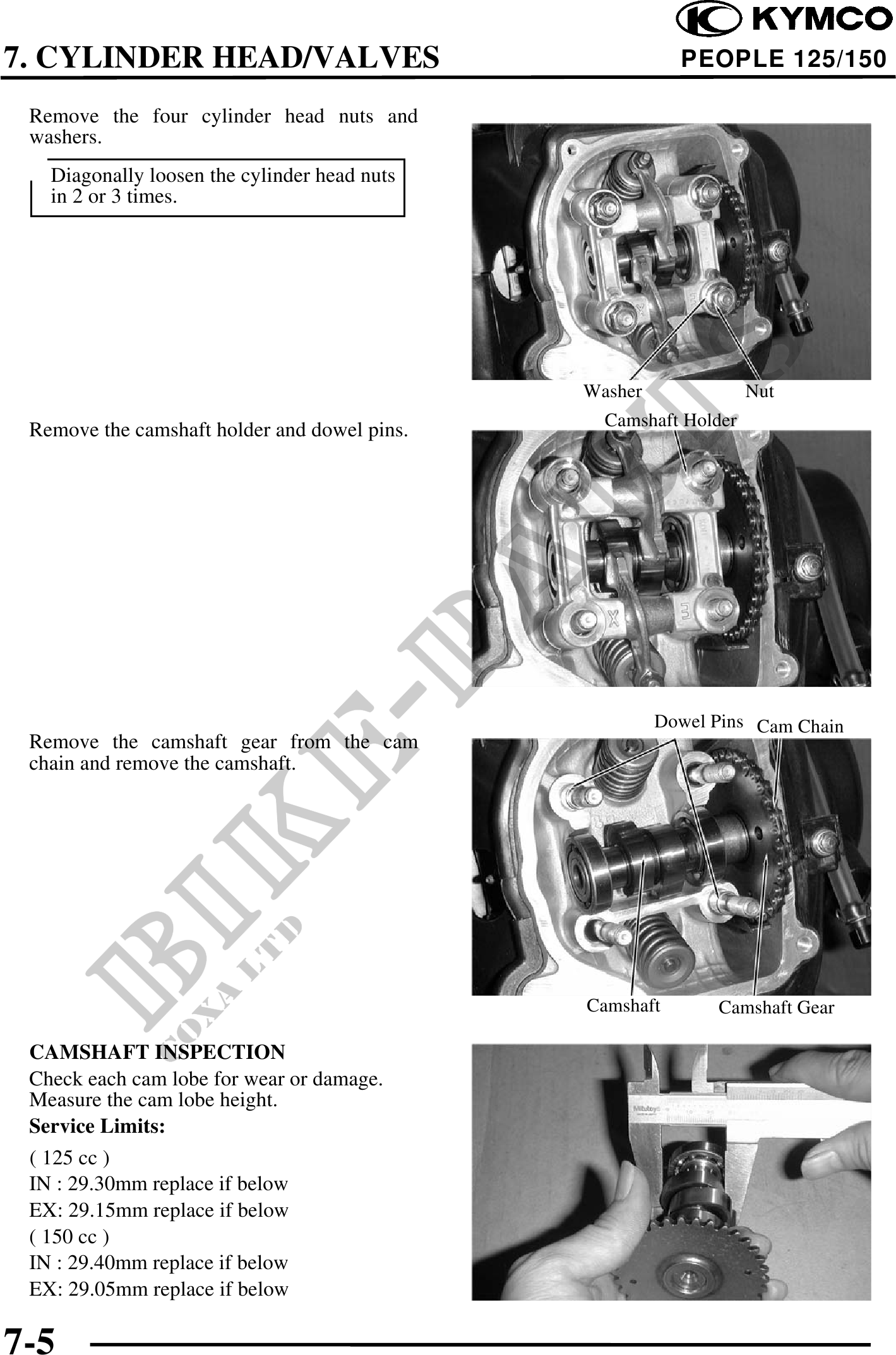

7. CYLINDER HEAD/VALVES PEOPLE 125/150
Remove the four cylinder head nuts and
washers.
Diagonally loosen the cylinder head nuts
in 2 or 3 times.
Washer Nut
Camshaft Holder
Remove the camshaft holder and dowel pins.
Dowel Pins Cam Chain
Remove the camshaft gear from the cam
chain and remove the camshaft.
Camshaft Camshaft Gear
CAMSHAFT INSPECTION
Check each cam lobe for wear or damage.
Measure the cam lobe height.
Service Limits:
( 125 cc )
IN : 29.30mm replace if below
EX: 29.15mm replace if below
( 150 cc )
IN : 29.40mm replace if below
EX: 29.05mm replace if below
7-5
