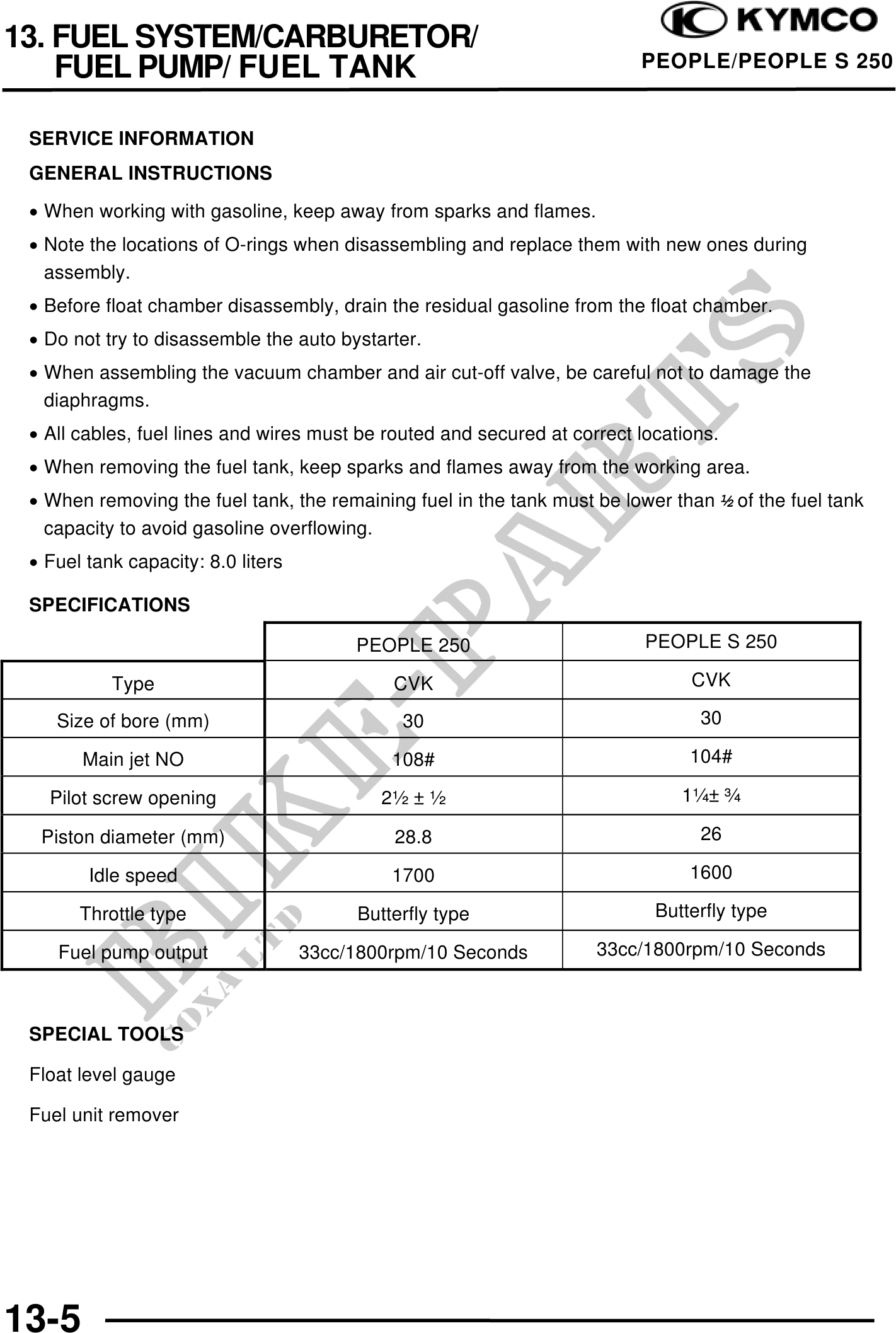

          13. FUEL SYSTEM/CARBURETOR/
    FUEL PUMP/ FUEL TANK                                                  PEOPLE/PEOPLE S 250


 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 · When working with gasoline, keep away from sparks and flames.
 · Note the locations of O-rings when disassembling and replace them with new ones during
   assembly.
 · Before float chamber disassembly, drain the residual gasoline from the float chamber.
 · Do not try to disassemble the auto bystarter.
 · When assembling the vacuum chamber and air cut-off valve, be careful not to damage the
   diaphragms.
 · All cables, fuel lines and wires must be routed and secured at correct locations.
 · When removing the fuel tank, keep sparks and flames away from the working area.
 · When removing the fuel tank, the remaining fuel in the tank must be lower than  of the fuel tank
   capacity to avoid gasoline overflowing.
 · Fuel tank capacity: 8.0 liters

 SPECIFICATIONS

                                         PEOPLE 250                        PEOPLE S 250

           Type                              CVK                                CVK

    Size of bore (mm)                         30                                 30

       Main jet NO                           108#                               104#

   Pilot screw opening                      2                                  1

  Piston diameter (mm)                       28.8                                26

        Idle speed                           1700                               1600

       Throttle type                     Butterfly type                     Butterfly type

    Fuel pump output                33cc/1800rpm/10 Seconds          33cc/1800rpm/10 Seconds



 SPECIAL TOOLS

 Float level gauge

 Fuel unit remover




13-5
