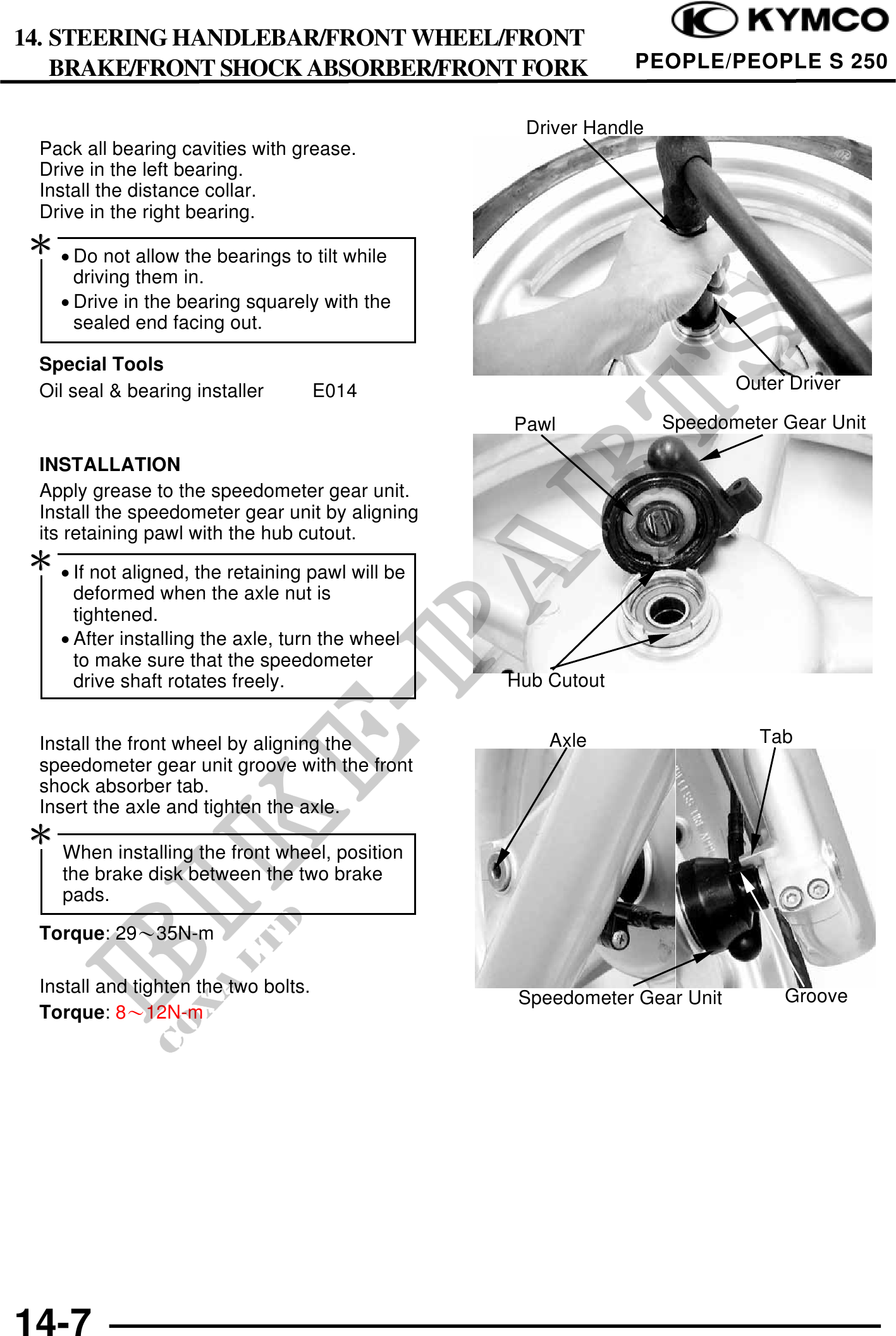

          14. STEERING HANDLEBAR/FRONT WHEEL/FRONT
    BRAKE/FRONT SHOCK ABSORBER/FRONT FORK                      PEOPLE/PEOPLE S 250


                                                   Driver Handle
 Pack all bearing cavities with grease.
 Drive in the left bearing.
 Install the distance collar.
 Drive in the right bearing.
 · Do not allow the bearings to tilt while
      driving them in.
    · Drive in the bearing squarely with the
      sealed end facing out.

 Special Tools
 Oil seal & bearing installer         E014                                 Outer Driver

                                                  Pawl             Speedometer Gear Unit

 INSTALLATION
 Apply grease to the speedometer gear unit.
 Install the speedometer gear unit by aligning
 its retaining pawl with the hub cutout.
 · If not aligned, the retaining pawl will be
      deformed when the axle nut is
      tightened.
    · After installing the axle, turn the wheel
      to make sure that the speedometer
      drive shaft rotates freely.                 Hub Cutout


 Install the front wheel by aligning the              Axle                   Tab
 speedometer gear unit groove with the front
 shock absorber tab.
 Insert the axle and tighten the axle.
 When installing the front wheel, position
    the brake disk between the two brake
    pads.

 Torque: 2935N-m

 Install and tighten the two bolts.
                                                   Speedometer Gear Unit        Groove
 Torque: 812N-m




14-7
