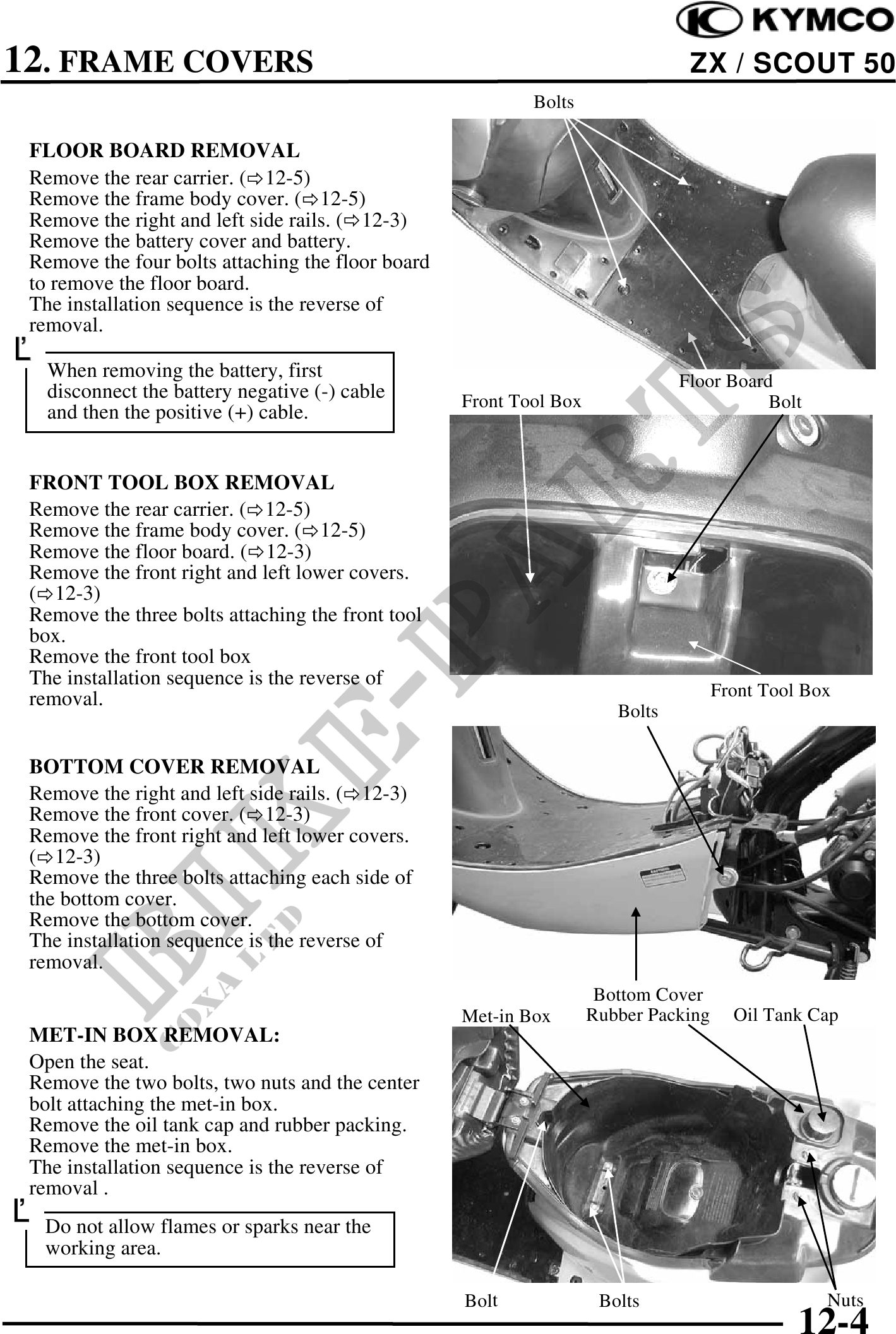

12. FRAME COVERS ZX / SCOUT 50
Bolts
FLOOR BOARD REMOVAL
Remove the rear carrier. ( 12-5)
Remove the frame body cover. ( 12-5)
Remove the right and left side rails. ( 12-3)
Remove the battery cover and battery.
Remove the four bolts attaching the floor board
to remove the floor board.
The installation sequence is the reverse of
removal.
When removing the battery, first Floor Board
disconnect the battery negative (-) cable Front Tool Box Bolt
and then the positive (+) cable.
FRONT TOOL BOX REMOVAL
Remove the rear carrier. ( 12-5)
Remove the frame body cover. ( 12-5)
Remove the floor board. ( 12-3)
Remove the front right and left lower covers.
( 12-3)
Remove the three bolts attaching the front tool
box.
Remove the front tool box
The installation sequence is the reverse of
removal. Front Tool Box
Bolts
BOTTOM COVER REMOVAL
Remove the right and left side rails. ( 12-3)
Remove the front cover. ( 12-3)
Remove the front right and left lower covers.
( 12-3)
Remove the three bolts attaching each side of
the bottom cover.
Remove the bottom cover.
The installation sequence is the reverse of
removal.
Bottom Cover
Met-in Box Rubber Packing Oil Tank Cap
MET-IN BOX REMOVAL:
Open the seat.
Remove the two bolts, two nuts and the center
bolt attaching the met-in box.
Remove the oil tank cap and rubber packing.
Remove the met-in box.
The installation sequence is the reverse of
removal .
Do not allow flames or sparks near the
working area.
Bolt Bolts Nuts
12-4
