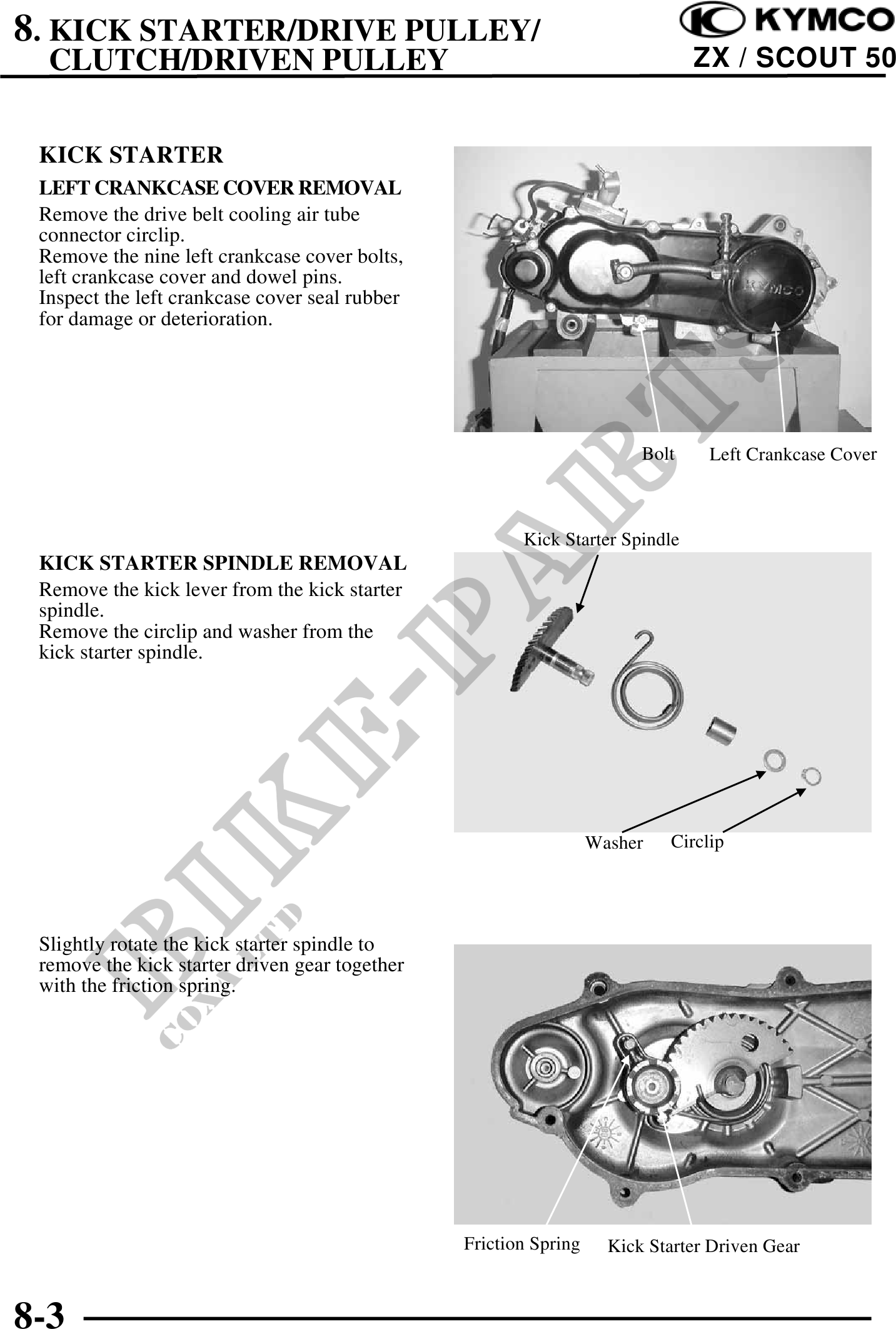

          8. KICK STARTER/DRIVE PULLEY/
  CLUTCH/DRIVEN PULLEY                                                         ZX / SCOUT 50


 KICK STARTER
 LEFT CRANKCASE COVER REMOVAL
 Remove the drive belt cooling air tube
 connector circlip.
 Remove the nine left crankcase cover bolts,
 left crankcase cover and dowel pins.
 Inspect the left crankcase cover seal rubber
 for damage or deterioration.




                                                                        Bolt    Left Crankcase Cover



                                                       Kick Starter Spindle
 KICK STARTER SPINDLE REMOVAL
 Remove the kick lever from the kick starter
 spindle.
 Remove the circlip and washer from the
 kick starter spindle.




                                                                  Washer   Circlip




 Slightly rotate the kick starter spindle to
 remove the kick starter driven gear together
 with the friction spring.




                                                Friction Spring     Kick Starter Driven Gear


8-3
