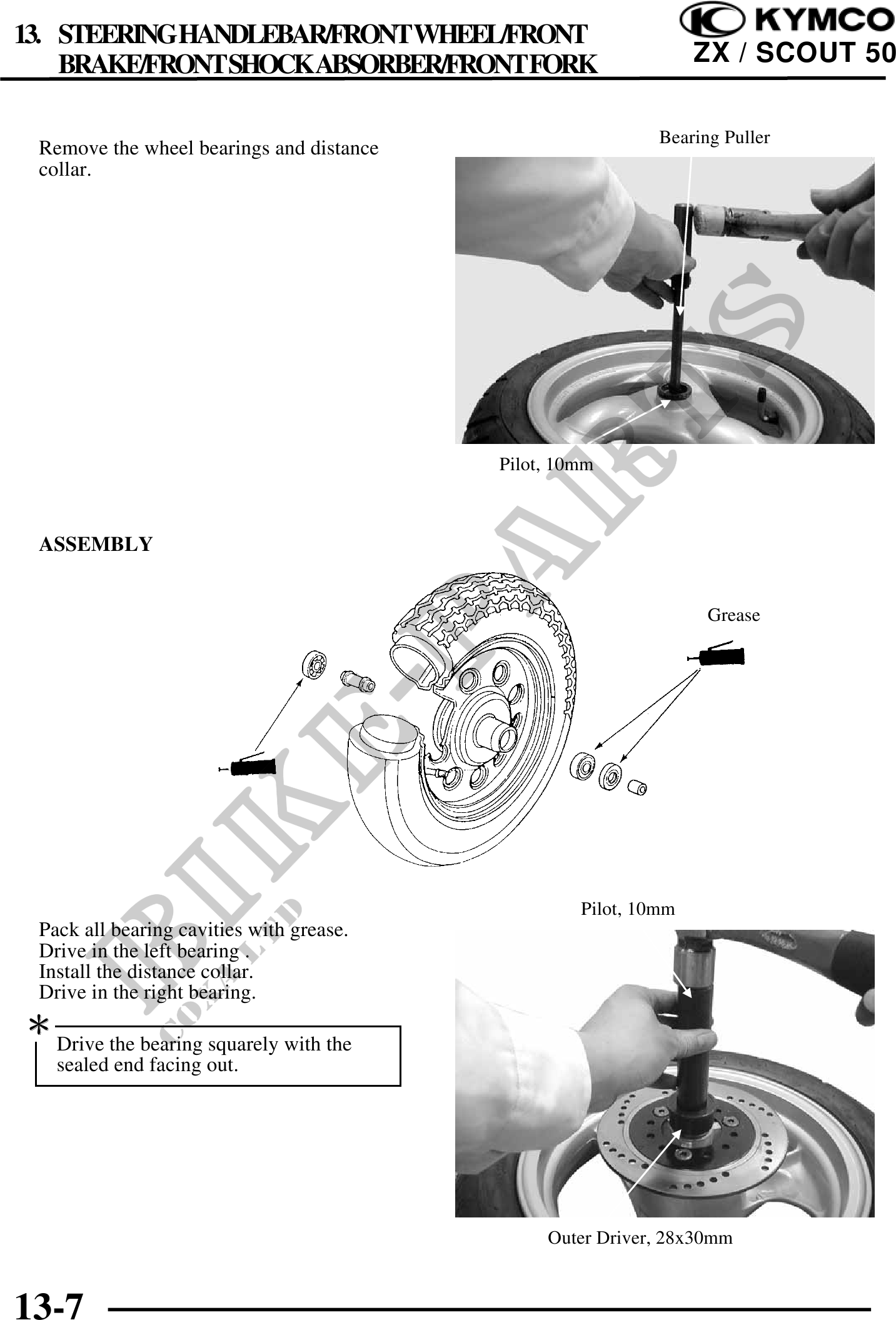

          13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT
    BRAKE/FRONTSHOCKABSORBER/FRONTFORK                           ZX / SCOUT 50

                                                            Bearing Puller
 Remove the wheel bearings and distance
 collar.




                                          Pilot, 10mm



 ASSEMBLY


                                                                  Grease




                                                   Pilot, 10mm
 Pack all bearing cavities with grease.
 Drive in the left bearing .
 Install the distance collar.
 Drive in the right bearing.

   Drive the bearing squarely with the
   sealed end facing out.




                                               Outer Driver, 28x30mm


13-7
