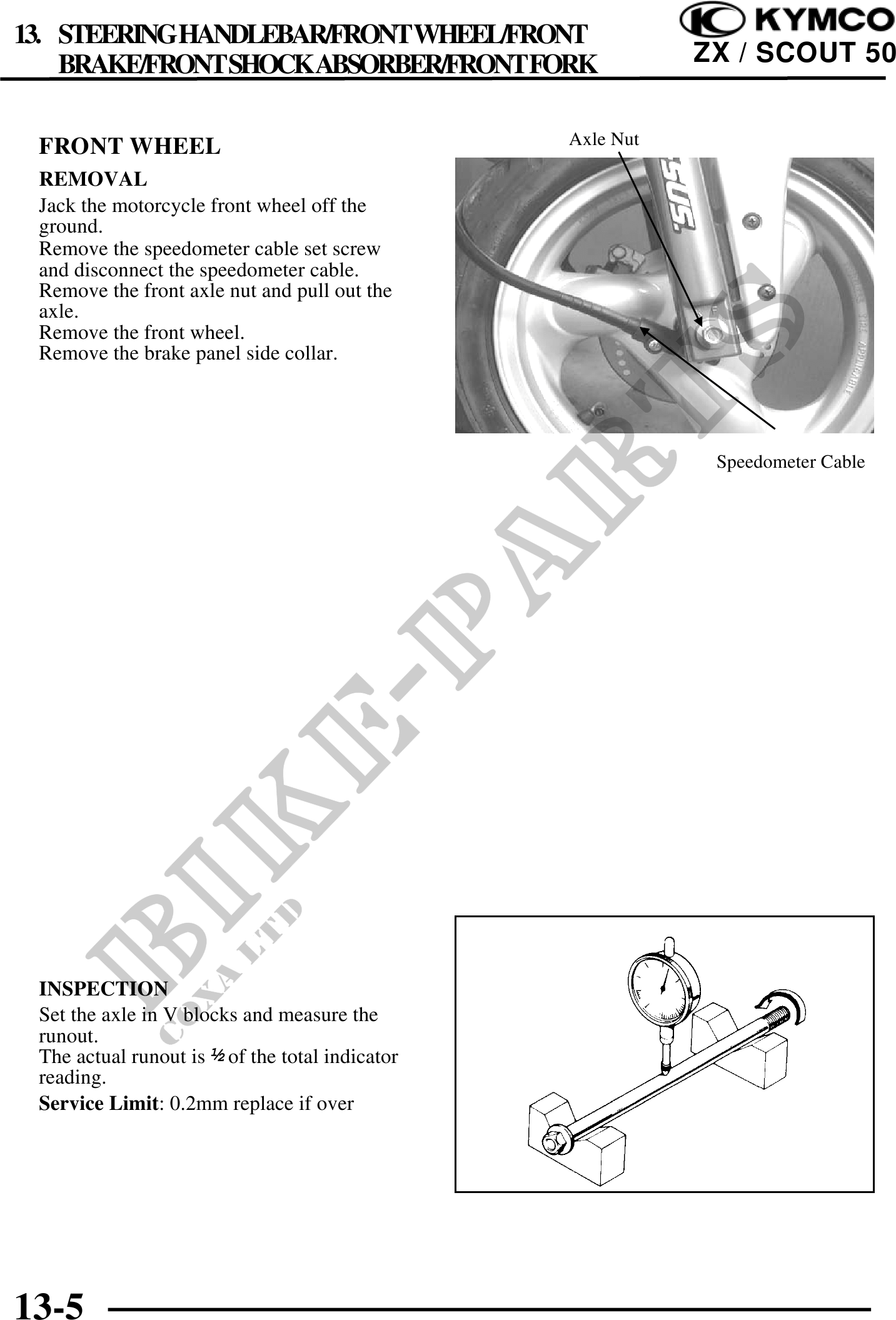

13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT
BRAKE/FRONTSHOCKABSORBER/FRONTFORK ZX / SCOUT 50
FRONT WHEEL Axle Nut
REMOVAL
Jack the motorcycle front wheel off the
ground.
Remove the speedometer cable set screw
and disconnect the speedometer cable.
Remove the front axle nut and pull out the
axle.
Remove the front wheel.
Remove the brake panel side collar.
Speedometer Cable
INSPECTION
Set the axle in V blocks and measure the
runout.
The actual runout is of the total indicator
reading.
Service Limit: 0.2mm replace if over
13-5
