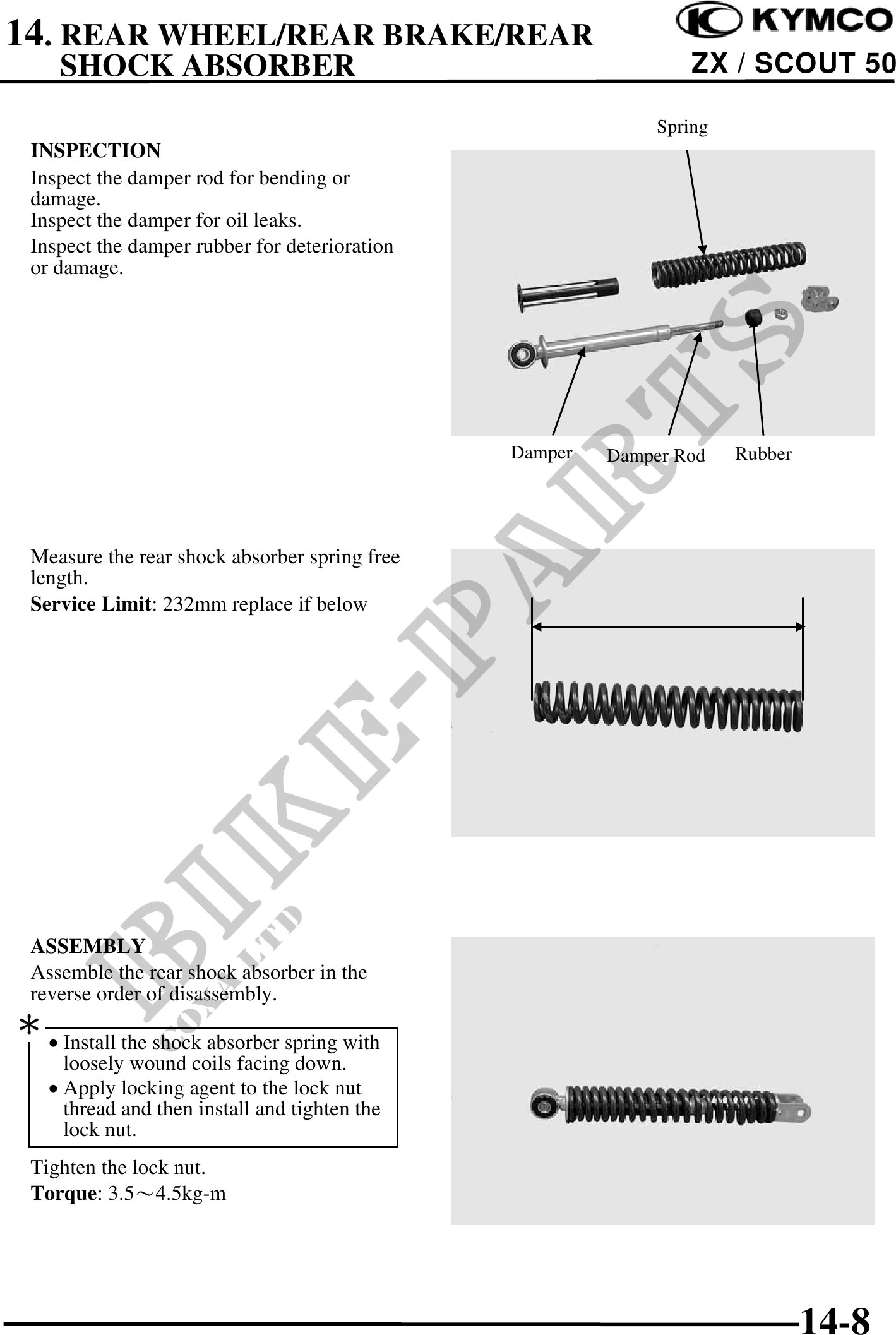

14. REAR WHEEL/REAR BRAKE/REAR
SHOCK ABSORBER ZX / SCOUT 50
Spring
INSPECTION
Inspect the damper rod for bending or
damage.
Inspect the damper for oil leaks.
Inspect the damper rubber for deterioration
or damage.
Damper Damper Rod Rubber
Measure the rear shock absorber spring free
length.
Service Limit: 232mm replace if below
ASSEMBLY
Assemble the rear shock absorber in the
reverse order of disassembly.
· Install the shock absorber spring with
loosely wound coils facing down.
· Apply locking agent to the lock nut
thread and then install and tighten the
lock nut.
Tighten the lock nut.
Torque: 3.54.5kg-m
14-8
