          8. KICK STARTER/DRIVE PULLEY/
  CLUTCH/DRIVEN PULLEY                                                 ZX / SCOUT 50

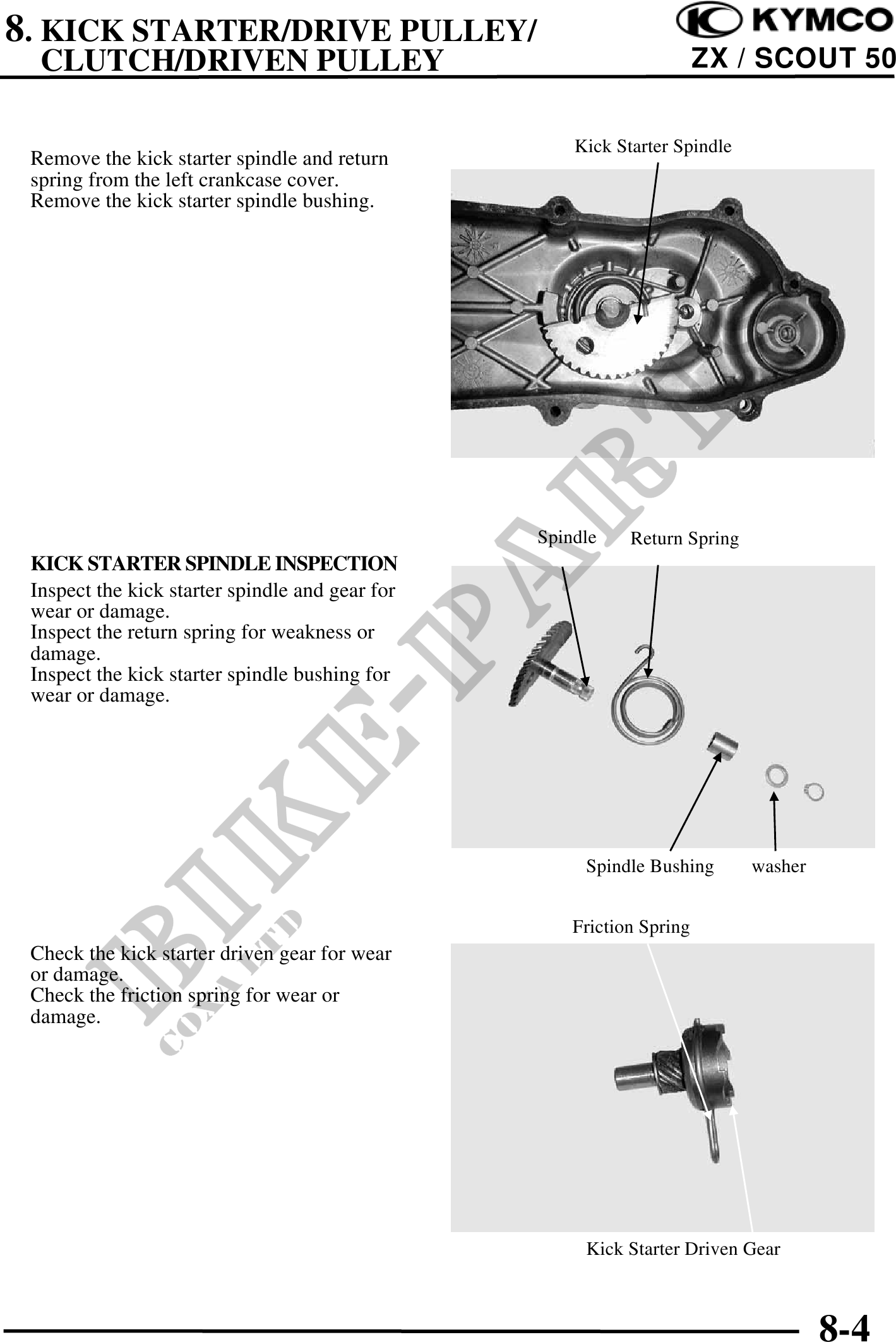

                                                     Kick Starter Spindle
 Remove the kick starter spindle and return
 spring from the left crankcase cover.
 Remove the kick starter spindle bushing.




                                                 Spindle    Return Spring
 KICK STARTER SPINDLE INSPECTION
 Inspect the kick starter spindle and gear for
 wear or damage.
 Inspect the return spring for weakness or
 damage.
 Inspect the kick starter spindle bushing for
 wear or damage.




                                                      Spindle Bushing       washer


                                                     Friction Spring
 Check the kick starter driven gear for wear
 or damage.
 Check the friction spring for wear or
 damage.




                                                      Kick Starter Driven Gear
