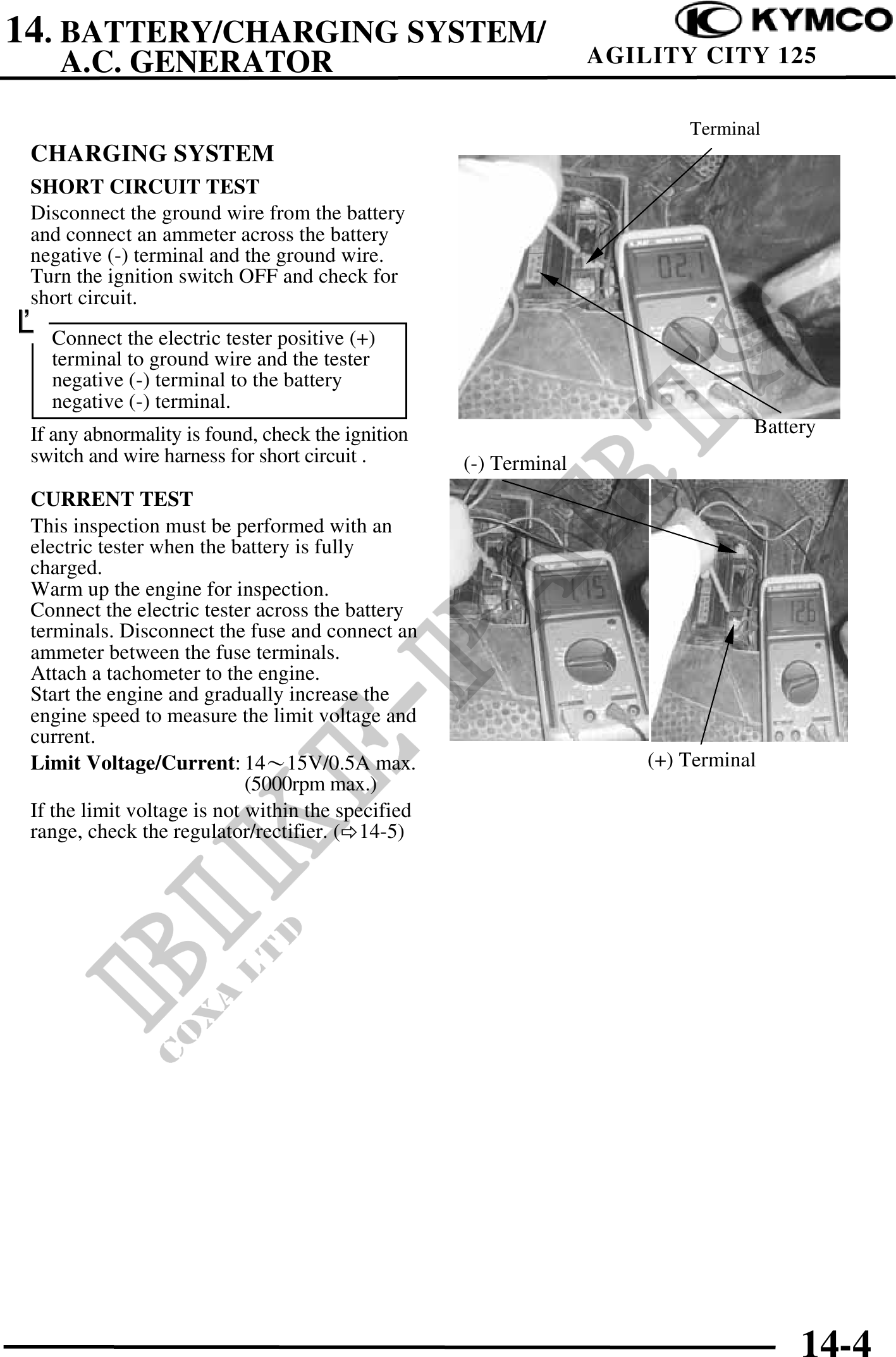

          14. BATTERY/CHARGING SYSTEM/
    A.C. GENERATOR                                                 AGILITY CITY 125

                                                                           Terminal
 CHARGING SYSTEM
 SHORT CIRCUIT TEST
 Disconnect the ground wire from the battery
 and connect an ammeter across the battery
 negative (-) terminal and the ground wire.
 Turn the ignition switch OFF and check for
 short circuit.
 Connect the electric tester positive (+)
    terminal to ground wire and the tester
    negative (-) terminal to the battery
    negative (-) terminal.
 If any abnormality is found, check the ignition                                  Battery
 switch and wire harness for short circuit .        (-) Terminal
 CURRENT TEST
 This inspection must be performed with an
 electric tester when the battery is fully
 charged.
 Warm up the engine for inspection.
 Connect the electric tester across the battery
 terminals. Disconnect the fuse and connect an
 ammeter between the fuse terminals.
 Attach a tachometer to the engine.
 Start the engine and gradually increase the
 engine speed to measure the limit voltage and
 current.
 Limit Voltage/Current: 1415V/0.5A max.                                (+) Terminal
                             (5000rpm max.)
 If the limit voltage is not within the specified
 range, check the regulator/rectifier. ( 14-5)




                                                                                       14-4
