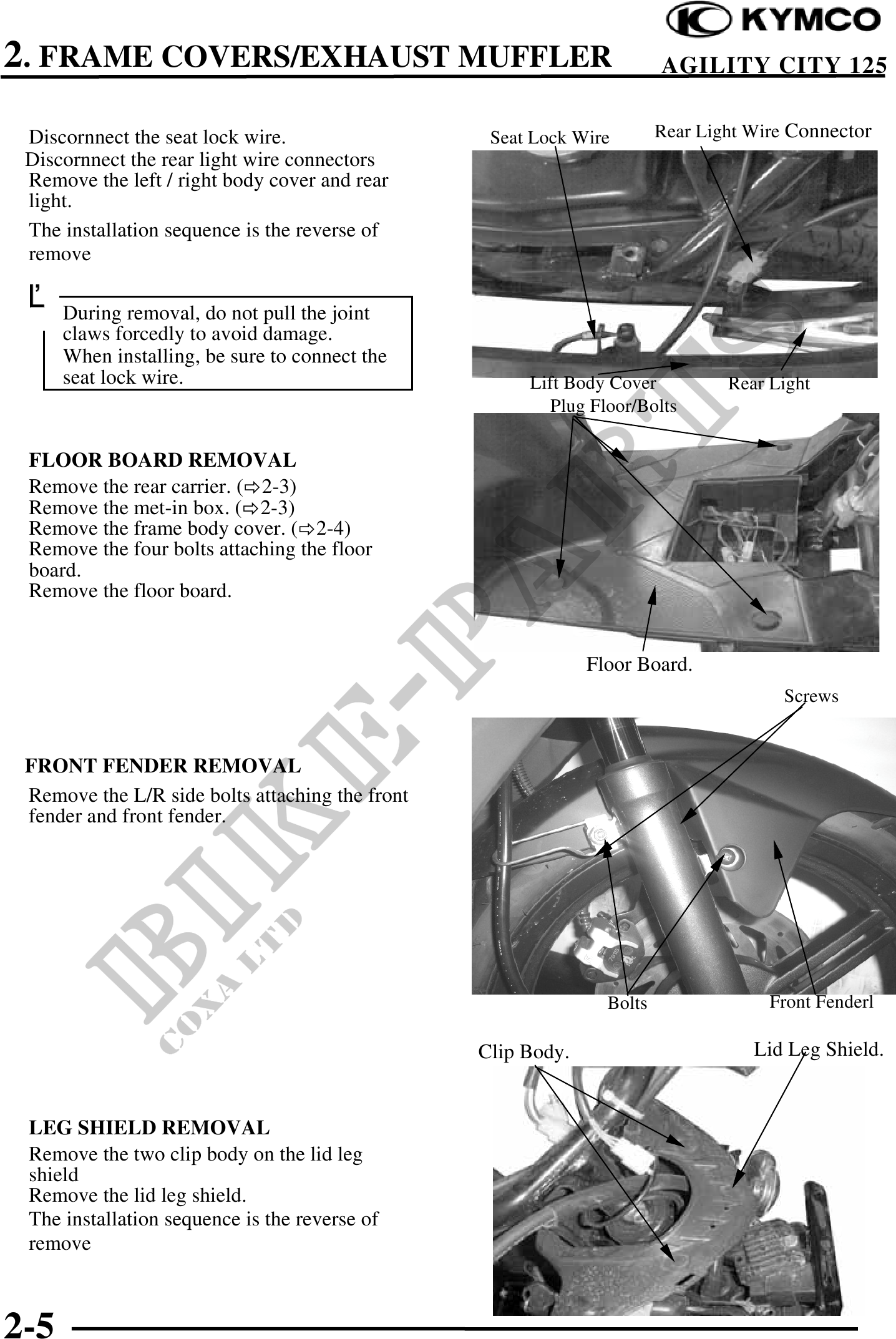

          2. FRAME COVERS/EXHAUST MUFFLER                                         AGILITY CITY 125

 Discornnect the seat lock wire.                  Seat Lock Wire        Rear Light Wire Connector
 Discornnect the rear light wire connectors
 Remove the left / right body cover and rear
 light.
 The installation sequence is the reverse of
 remove

  During removal, do not pull the joint
      claws forcedly to avoid damage.
      When installing, be sure to connect the
      seat lock wire.                                 Lift Body Cover           Rear Light
                                                         Plug Floor/Bolts

 FLOOR BOARD REMOVAL
 Remove the rear carrier. ( 2-3)
 Remove the met-in box. ( 2-3)
 Remove the frame body cover. ( 2-4)
 Remove the four bolts attaching the floor
 board.
 Remove the floor board.


                                                              Floor Board.
                                                                                      Screws


 FRONT FENDER REMOVAL
 Remove the L/R side bolts attaching the front
 fender and front fender.




                                                                Bolts                Front Fenderl

                                                 Clip Body.                        Lid Leg Shield.


 LEG SHIELD REMOVAL
 Remove the two clip body on the lid leg
 shield
 Remove the lid leg shield.
 The installation sequence is the reverse of
 remove



2-5
