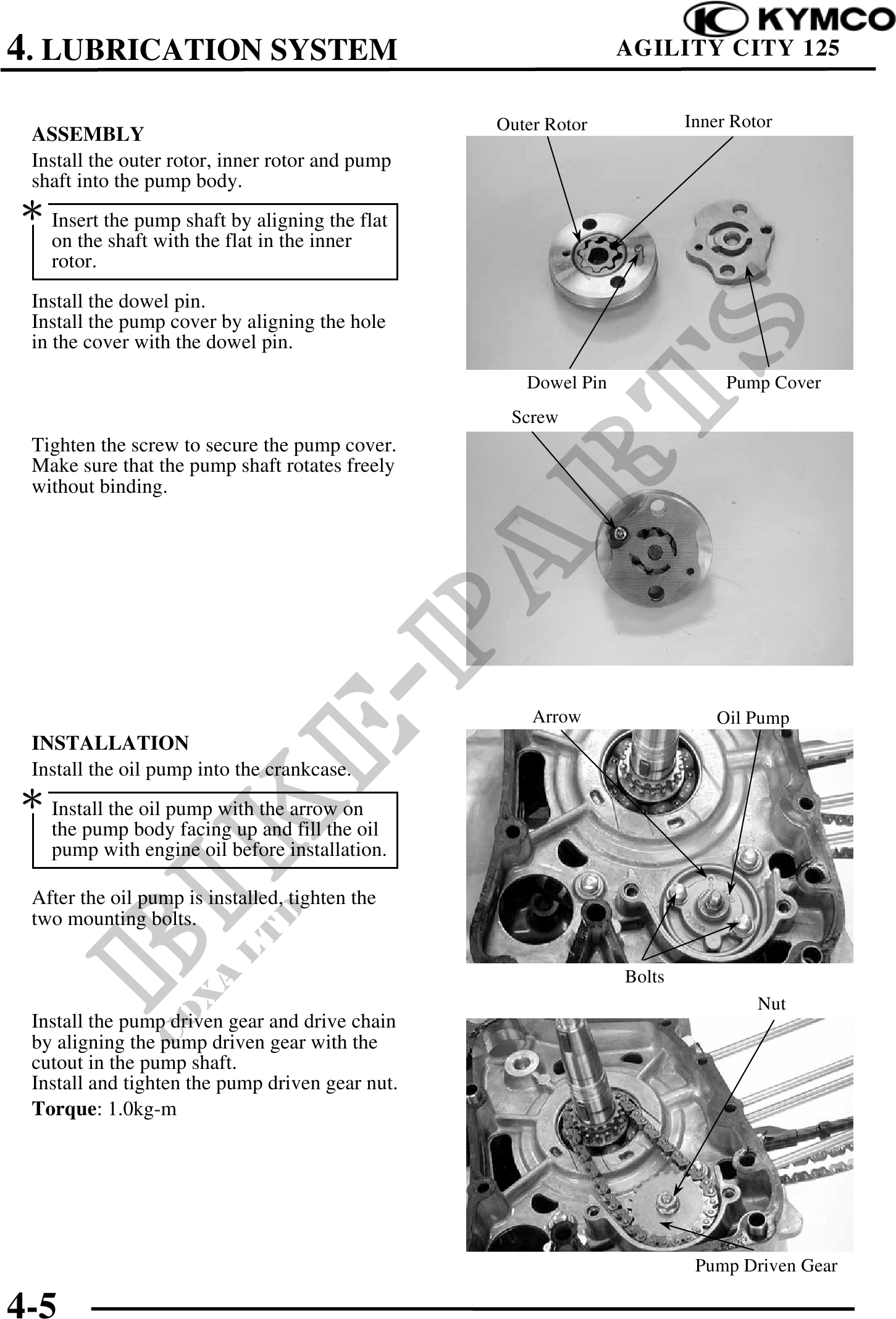

          4. LUBRICATION SYSTEM                                           AGILITY CITY 125


                                                 Outer Rotor            Inner Rotor
 ASSEMBLY
 Install the outer rotor, inner rotor and pump
 shaft into the pump body.
 Insert the pump shaft by aligning the flat
    on the shaft with the flat in the inner
    rotor.
 Install the dowel pin.
 Install the pump cover by aligning the hole
 in the cover with the dowel pin.
                                                    Dowel Pin                Pump Cover
                                                  Screw
 Tighten the screw to secure the pump cover.
 Make sure that the pump shaft rotates freely
 without binding.




                                                     Arrow                  Oil Pump
 INSTALLATION
 Install the oil pump into the crankcase.
 Install the oil pump with the arrow on
    the pump body facing up and fill the oil
    pump with engine oil before installation.

 After the oil pump is installed, tighten the
 two mounting bolts.

                                                                Bolts
                                                                                 Nut
 Install the pump driven gear and drive chain
 by aligning the pump driven gear with the
 cutout in the pump shaft.
 Install and tighten the pump driven gear nut.
 Torque: 1.0kg-m




                                                                         Pump Driven Gear

4-5
