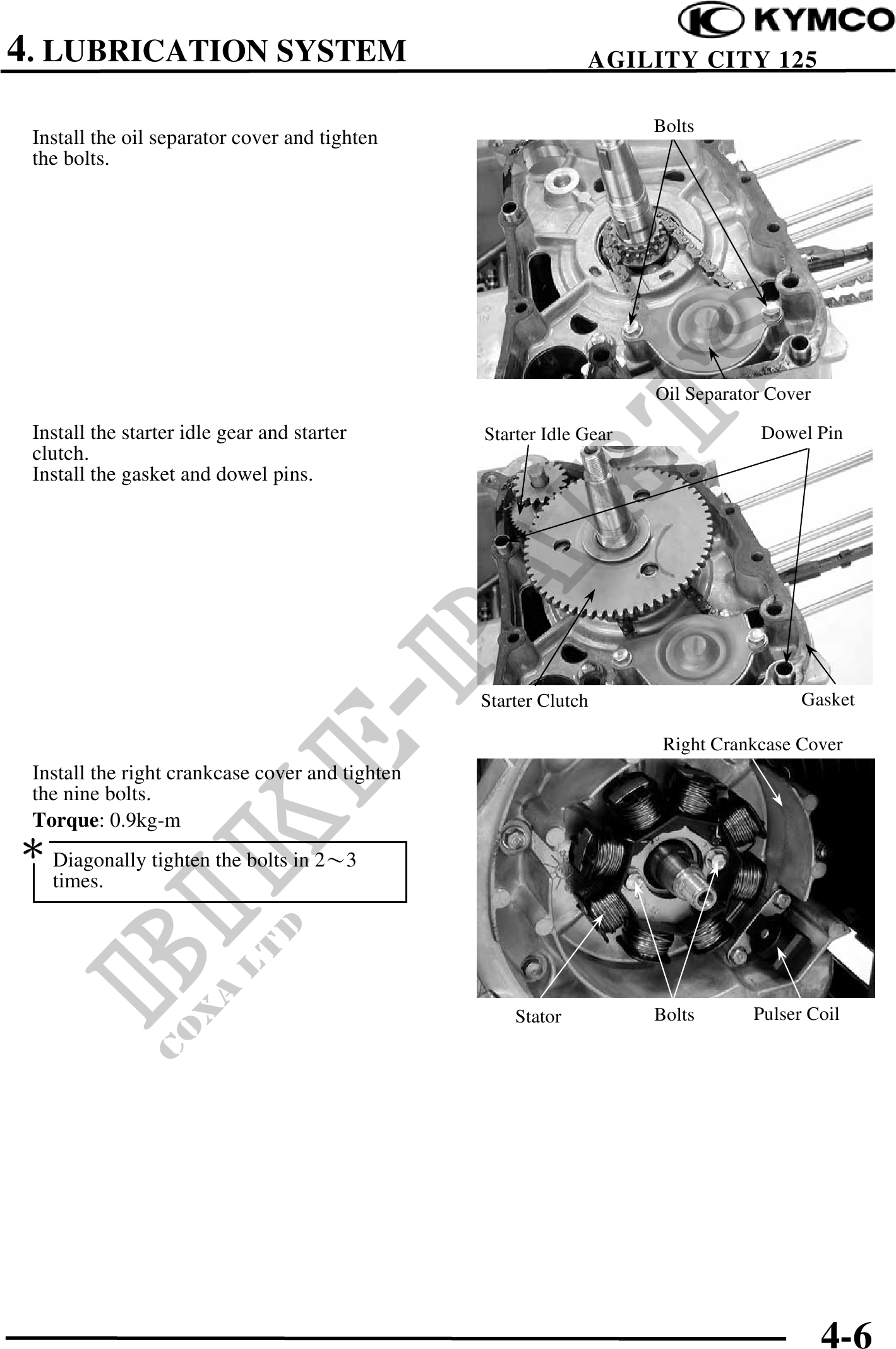

          4. LUBRICATION SYSTEM                                         AGILITY CITY 125

                                                                     Bolts
 Install the oil separator cover and tighten
 the bolts.




                                                                     Oil Separator Cover

 Install the starter idle gear and starter       Starter Idle Gear               Dowel Pin
 clutch.
 Install the gasket and dowel pins.




                                                 Starter Clutch                       Gasket

                                                                      Right Crankcase Cover
 Install the right crankcase cover and tighten
 the nine bolts.
 Torque: 0.9kg-m
 Diagonally tighten the bolts in 23
   times.




                                                     Stator          Bolts      Pulser Coil




                                                                                           4-6
