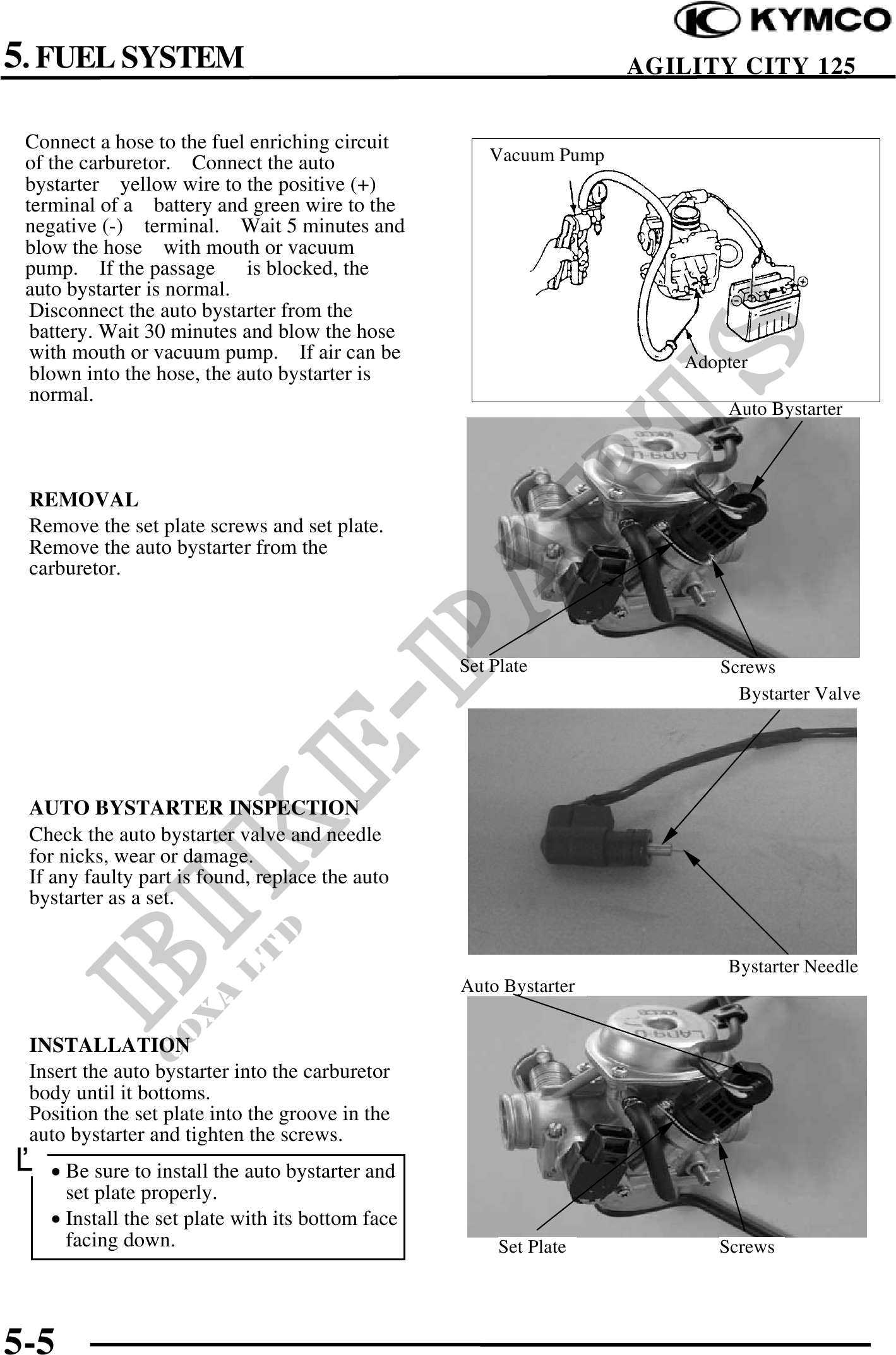

          5. FUEL SYSTEM                                                      AGILITY CITY 125


 Connect a hose to the fuel enriching circuit
 of the carburetor. Connect the auto                  Vacuum Pump
 bystarter yellow wire to the positive (+)
 terminal of a battery and green wire to the
 negative (-) terminal. Wait 5 minutes and
 blow the hose with mouth or vacuum
 pump. If the passage       is blocked, the
 auto bystarter is normal.
  Disconnect the auto bystarter from the
  battery. Wait 30 minutes and blow the hose
  with mouth or vacuum pump. If air can be                             Adopter
  blown into the hose, the auto bystarter is
  normal.
                                                                           Auto Bystarter



 REMOVAL
 Remove the set plate screws and set plate.
 Remove the auto bystarter from the
 carburetor.



                                                   Set Plate              Screws
                                                                            Bystarter Valve




 AUTO BYSTARTER INSPECTION
 Check the auto bystarter valve and needle
 for nicks, wear or damage.
 If any faulty part is found, replace the auto
 bystarter as a set.


                                                                           Bystarter Needle
                                                   Auto Bystarter


 INSTALLATION
 Insert the auto bystarter into the carburetor
 body until it bottoms.
 Position the set plate into the groove in the
 auto bystarter and tighten the screws.
 · Be sure to install the auto bystarter and
      set plate properly.
    · Install the set plate with its bottom face
      facing down.                                      Set Plate         Screws
