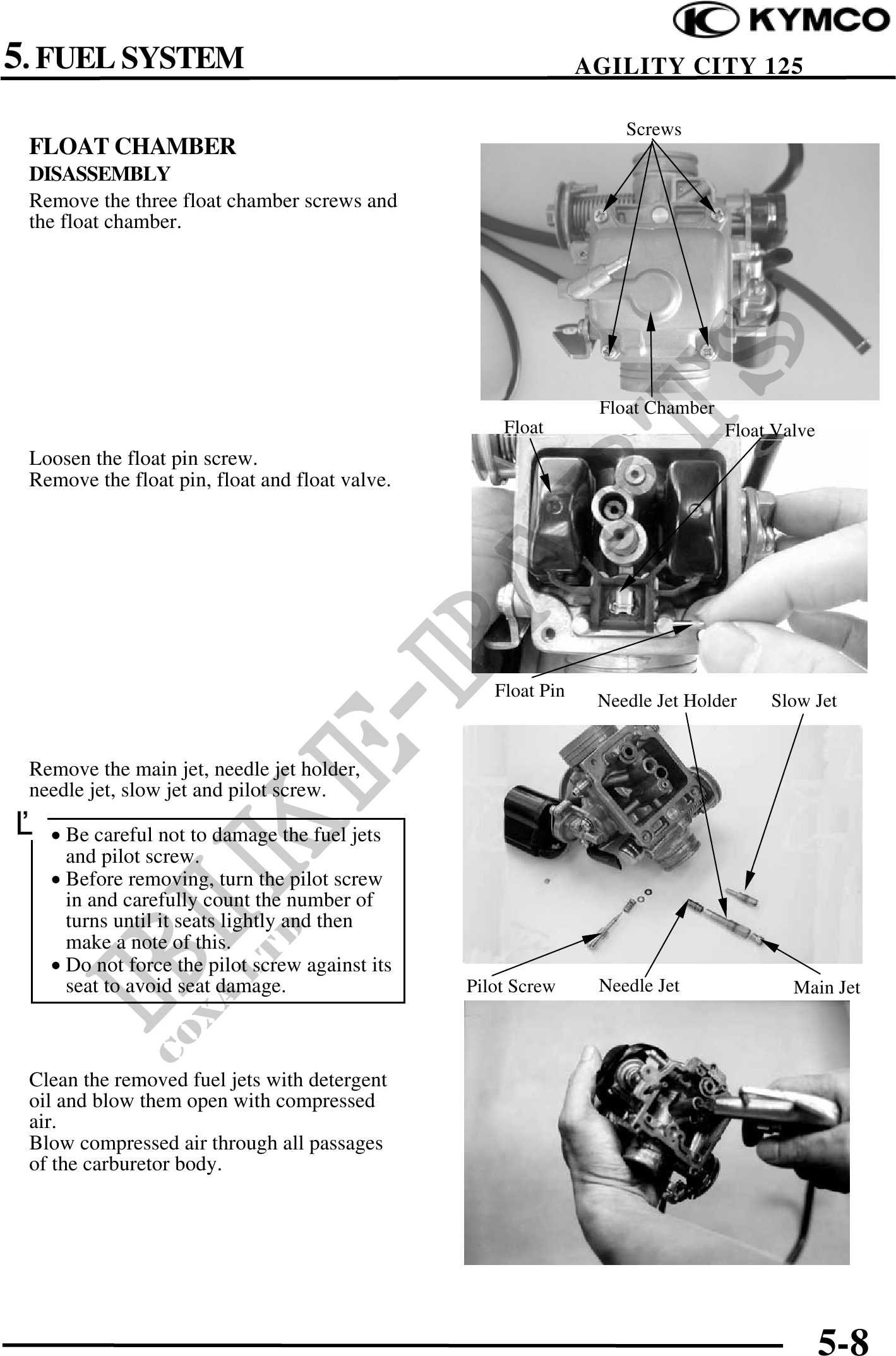

          5. FUEL SYSTEM                                                 AGILITY CITY 125

                                                                   Screws
 FLOAT CHAMBER
 DISASSEMBLY
 Remove the three float chamber screws and
 the float chamber.




                                                                Float Chamber
                                                    Float                       Float Valve
 Loosen the float pin screw.
 Remove the float pin, float and float valve.




                                                   Float Pin
                                                                Needle Jet Holder    Slow Jet


 Remove the main jet, needle jet holder,
 needle jet, slow jet and pilot screw.
 · Be careful not to damage the fuel jets
     and pilot screw.
   · Before removing, turn the pilot screw
     in and carefully count the number of
     turns until it seats lightly and then
     make a note of this.
   · Do not force the pilot screw against its
     seat to avoid seat damage.                 Pilot Screw     Needle Jet              Main Jet



 Clean the removed fuel jets with detergent
 oil and blow them open with compressed
 air.
 Blow compressed air through all passages
 of the carburetor body.
