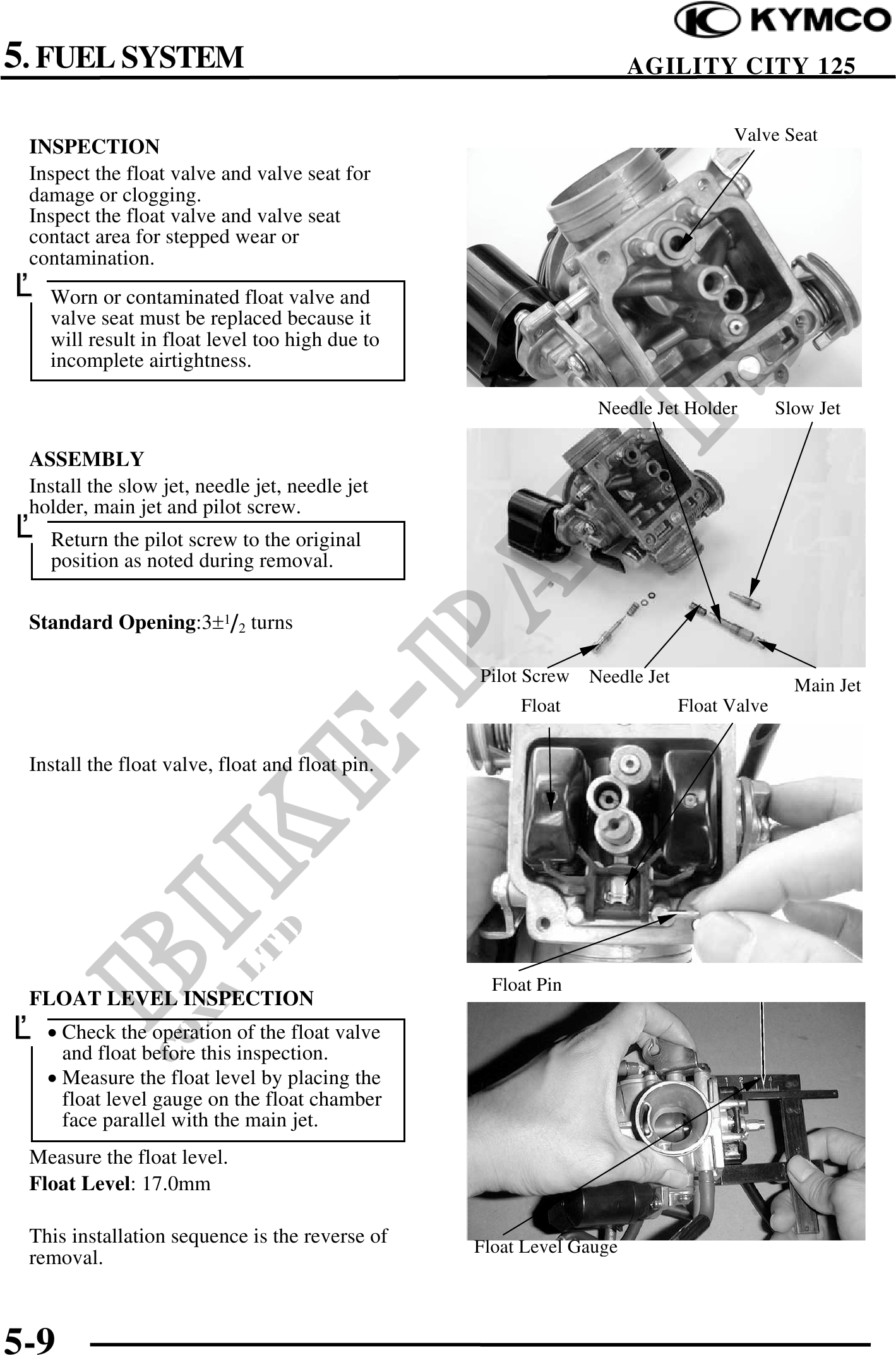

          5. FUEL SYSTEM                                                       AGILITY CITY 125

                                                                                  Valve Seat
 INSPECTION
 Inspect the float valve and valve seat for
 damage or clogging.
 Inspect the float valve and valve seat
 contact area for stepped wear or
 contamination.
 Worn or contaminated float valve and
    valve seat must be replaced because it
    will result in float level too high due to
    incomplete airtightness.

                                                                Needle Jet Holder         Slow Jet

 ASSEMBLY
 Install the slow jet, needle jet, needle jet
 holder, main jet and pilot screw.
 Return the pilot screw to the original
    position as noted during removal.

 Standard Opening:31/2 turns

                                                 Pilot Screw   Needle Jet                   Main Jet
                                                      Float                 Float Valve


 Install the float valve, float and float pin.




                                                   Float Pin
 FLOAT LEVEL INSPECTION
 · Check the operation of the float valve
     and float before this inspection.
   · Measure the float level by placing the
     float level gauge on the float chamber
     face parallel with the main jet.
 Measure the float level.
 Float Level: 17.0mm

 This installation sequence is the reverse of    Float Level Gauge
 removal.



5-9
