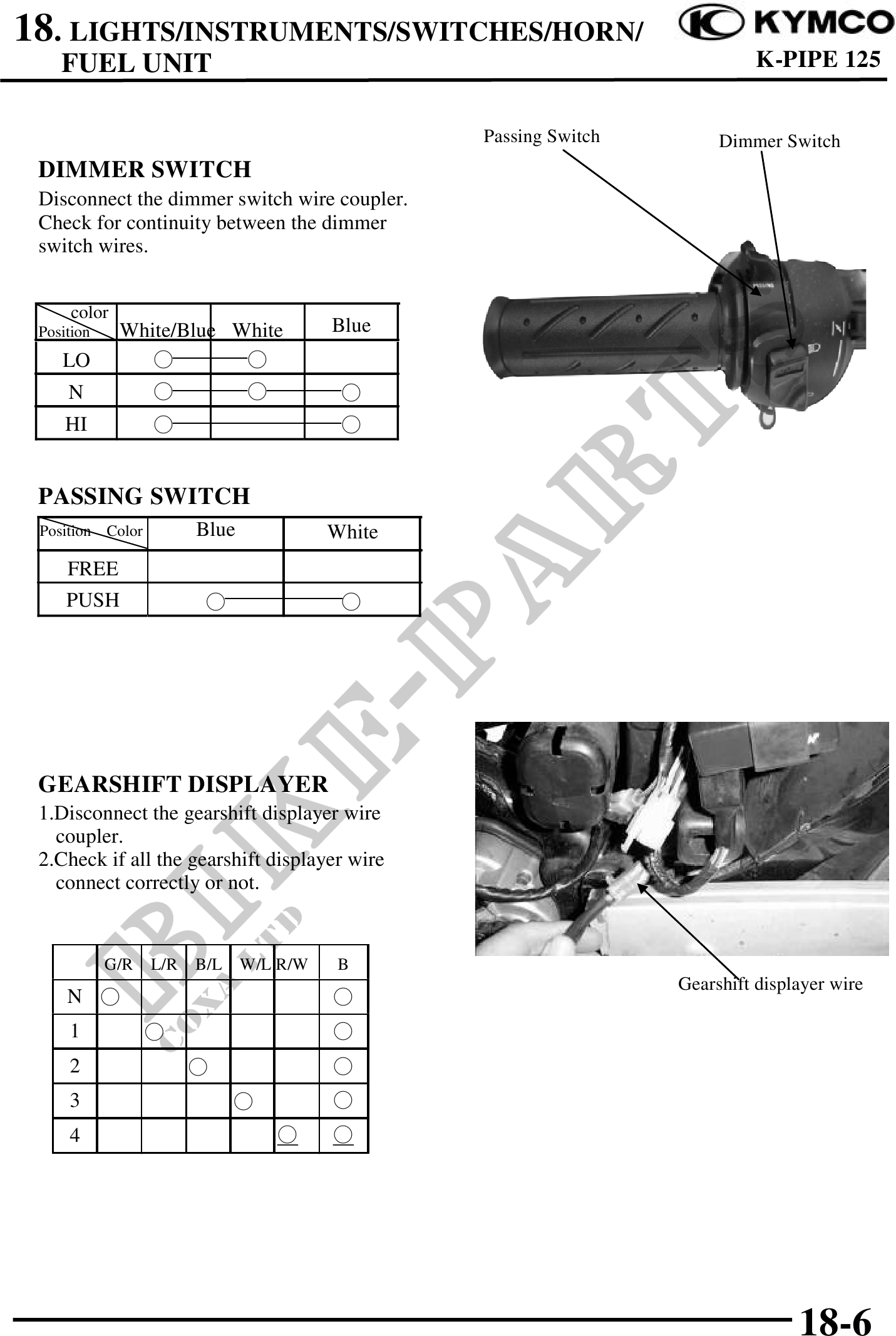

18. LIGHTS/INSTRUMENTS/SWITCHES/HORN/
FUEL UNIT K-PIPE 125
Passing Switch Dimmer Switch
DIMMER SWITCH
Disconnect the dimmer switch wire coupler.
Check for continuity between the dimmer
switch wires.
color
Position White/Blue White Blue
LO
N
HI
PASSING SWITCH
Position Color Blue White
FREE
PUSH
GEARSHIFT DISPLAYER
1.Disconnect the gearshift displayer wire
coupler.
2.Check if all the gearshift displayer wire
connect correctly or not.
G/R L/R B/L W/L R/W B
Gearshift displayer wire
N
1
2
3
4
18-6
