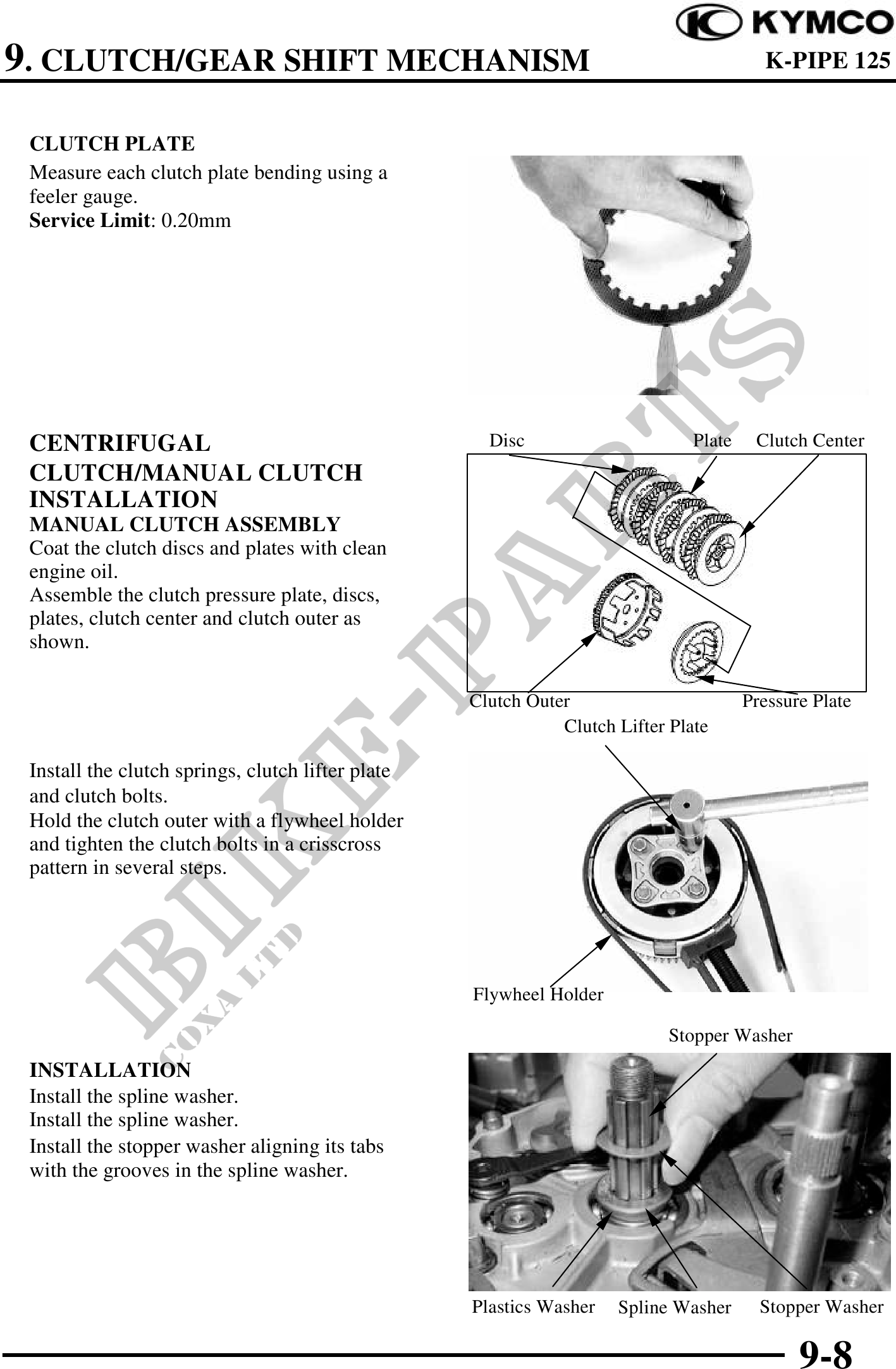

9. CLUTCH/GEAR SHIFT MECHANISM K-PIPE 125
CLUTCH PLATE
Measure each clutch plate bending using a
feeler gauge.
Service Limit: 0.20mm
CENTRIFUGAL Disc Plate Clutch Center
CLUTCH/MANUAL CLUTCH
INSTALLATION
MANUAL CLUTCH ASSEMBLY
Coat the clutch discs and plates with clean
engine oil.
Assemble the clutch pressure plate, discs,
plates, clutch center and clutch outer as
shown.
Clutch Outer Pressure Plate
Clutch Lifter Plate
Install the clutch springs, clutch lifter plate
and clutch bolts.
Hold the clutch outer with a flywheel holder
and tighten the clutch bolts in a crisscross
pattern in several steps.
Flywheel Holder
Stopper Washer
INSTALLATION
Install the spline washer.
Install the spline washer.
Install the stopper washer aligning its tabs
with the grooves in the spline washer.
Plastics Washer Spline Washer Stopper Washer
9-8
