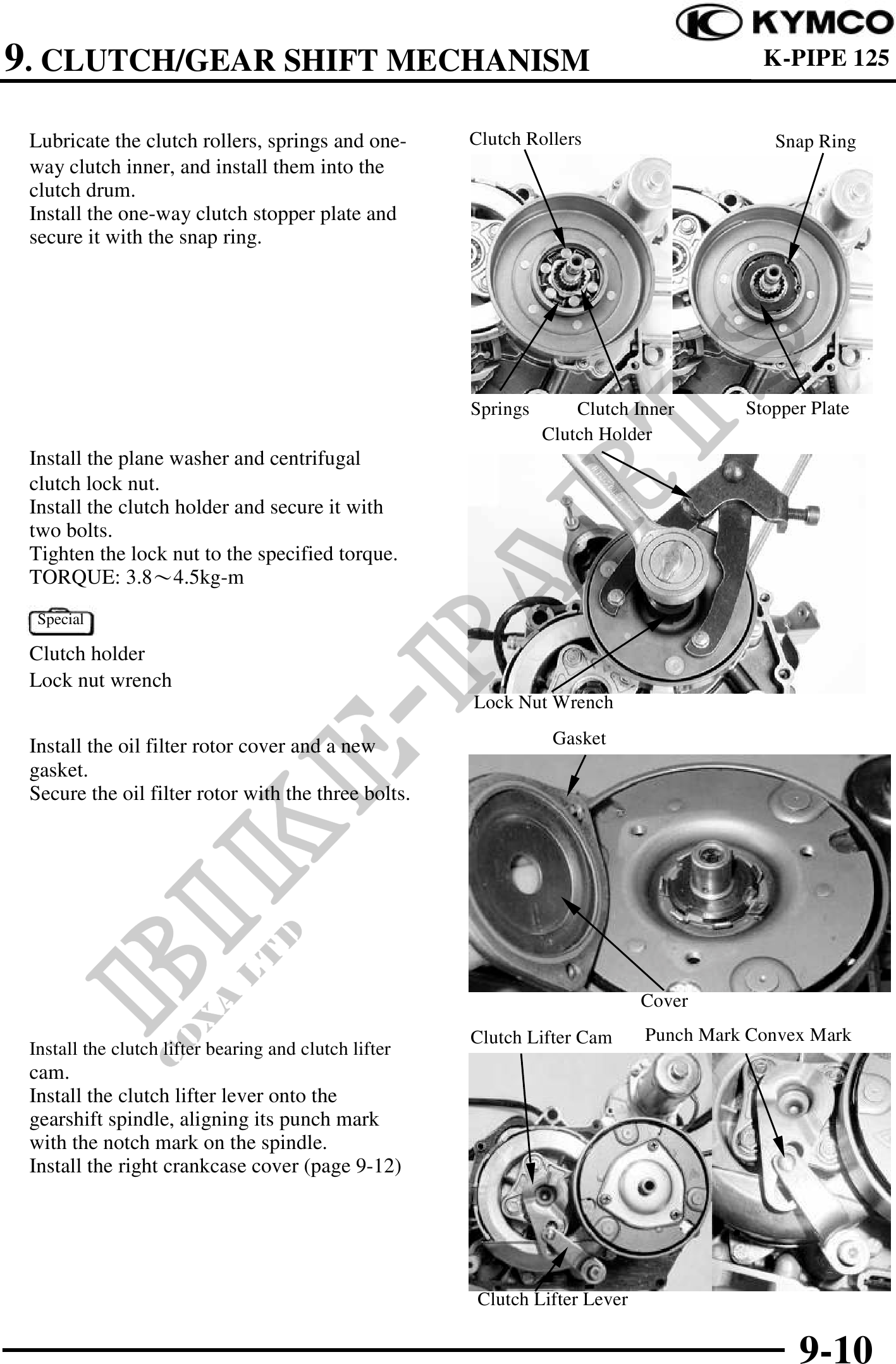

9. CLUTCH/GEAR SHIFT MECHANISM K-PIPE 125
Lubricate the clutch rollers, springs and one- Clutch Rollers Snap Ring
way clutch inner, and install them into the
clutch drum.
Install the one-way clutch stopper plate and
secure it with the snap ring.
Springs Clutch Inner Stopper Plate
Clutch Holder
Install the plane washer and centrifugal
clutch lock nut.
Install the clutch holder and secure it with
two bolts.
Tighten the lock nut to the specified torque.
TORQUE: 3.84.5kg-m
Special
Clutch holder
Lock nut wrench
Lock Nut Wrench
Install the oil filter rotor cover and a new Gasket
gasket.
Secure the oil filter rotor with the three bolts.
Cover
Clutch Lifter Cam Punch Mark Convex Mark
Install the clutch lifter bearing and clutch lifter
cam.
Install the clutch lifter lever onto the
gearshift spindle, aligning its punch mark
with the notch mark on the spindle.
Install the right crankcase cover (page 9-12)
Clutch Lifter Lever
9-10
