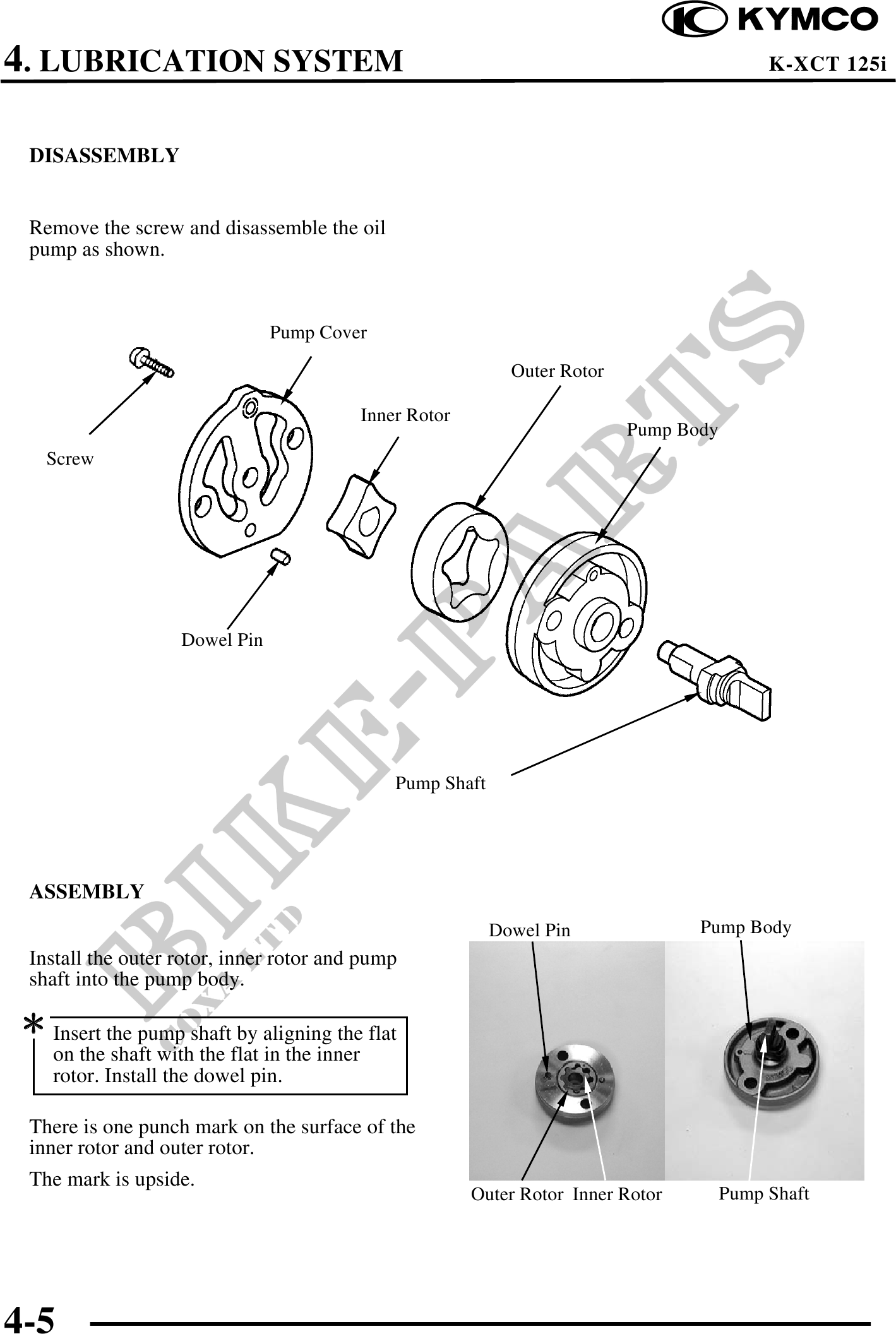

4. LUBRICATION SYSTEM K-XCT 125i
DISASSEMBLY
Remove the screw and disassemble the oil
pump as shown.
Pump Cover
Outer Rotor
Inner Rotor
Pump Body
Screw
Dowel Pin
Pump Shaft
ASSEMBLY
Dowel Pin Pump Body
Install the outer rotor, inner rotor and pump
shaft into the pump body.
Insert the pump shaft by aligning the flat
on the shaft with the flat in the inner
rotor. Install the dowel pin.
There is one punch mark on the surface of the
inner rotor and outer rotor.
The mark is upside.
Outer Rotor Inner Rotor Pump Shaft
4-5
