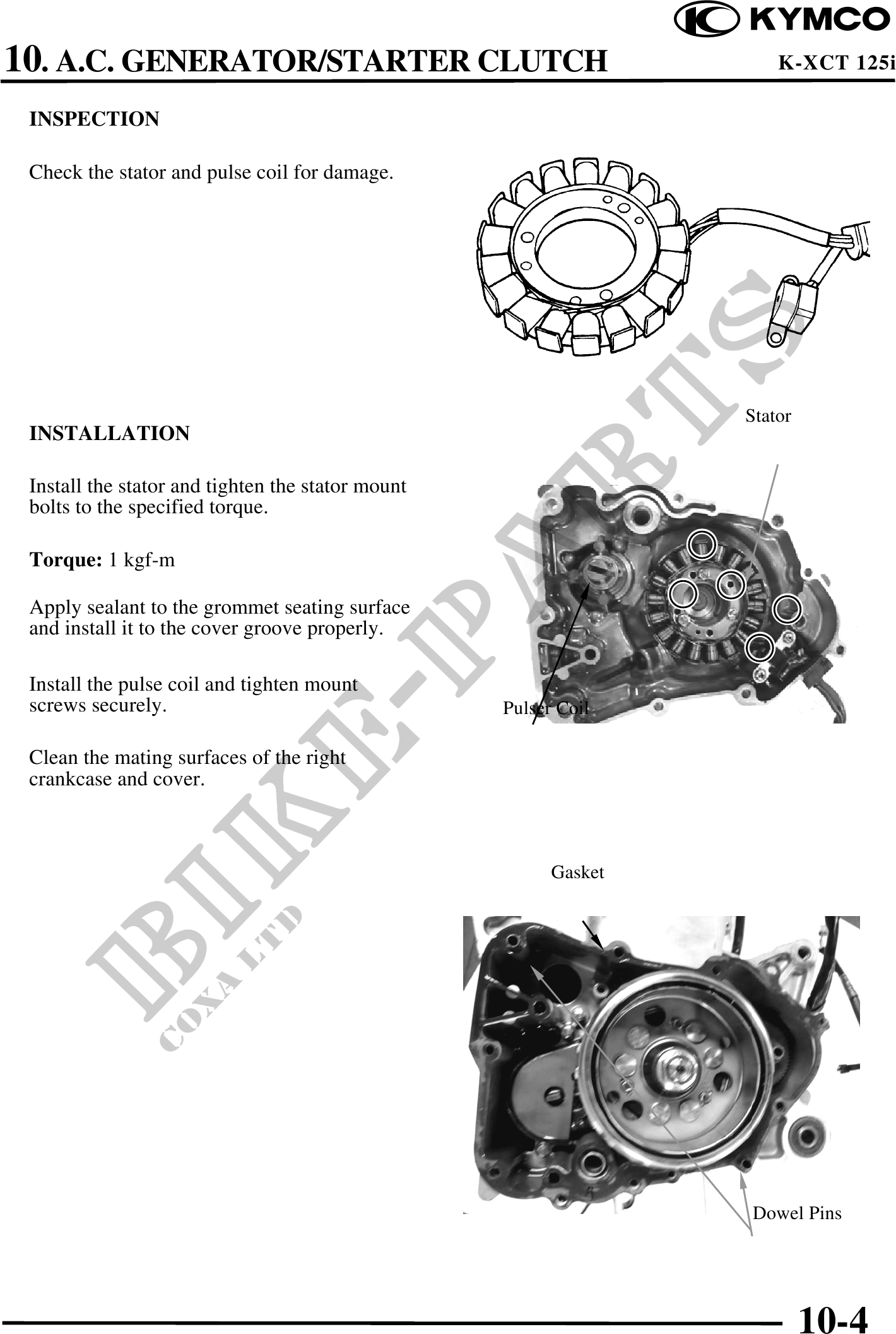

10. A.C. GENERATOR/STARTER CLUTCH K-XCT 125i
INSPECTION
Check the stator and pulse coil for damage.
Stator
INSTALLATION
Install the stator and tighten the stator mount
bolts to the specified torque.
Torque: 1 kgf-m
Apply sealant to the grommet seating surface
and install it to the cover groove properly.
Install the pulse coil and tighten mount
screws securely. Pulser Coil
Clean the mating surfaces of the right
crankcase and cover.
Gasket
Dowel Pins
10-4
