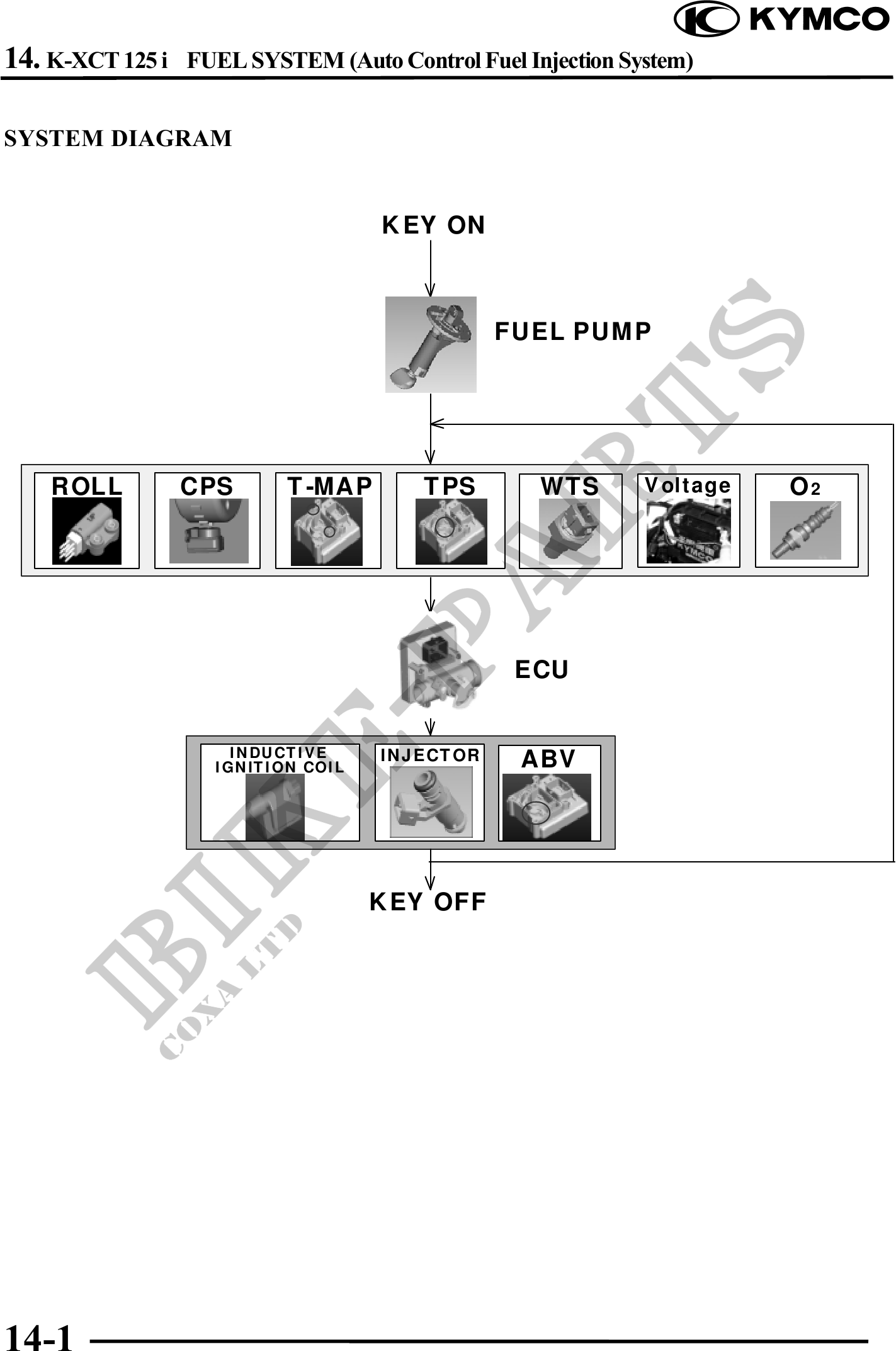

          14. K-XCT 125 i   FUEL SYSTEM (Auto Control Fuel Injection System)


SYSTEM DIAGRAM


                                    KEY ON



                                               FUEL PUMP




    ROLL          CPS      T-MAP
                                        TPS        WTS       Voltage    O2
                                                                       (O2)






                                                 ECU


                      INDUCTIVE
                    IGNITION COIL
                                    INJECTOR
                                                 ABV





                                    KEY OFF




14-1
