          10.FINAL REDUCTION/
   TRANSMISSION SYSTEM                                                           ATV 300/250

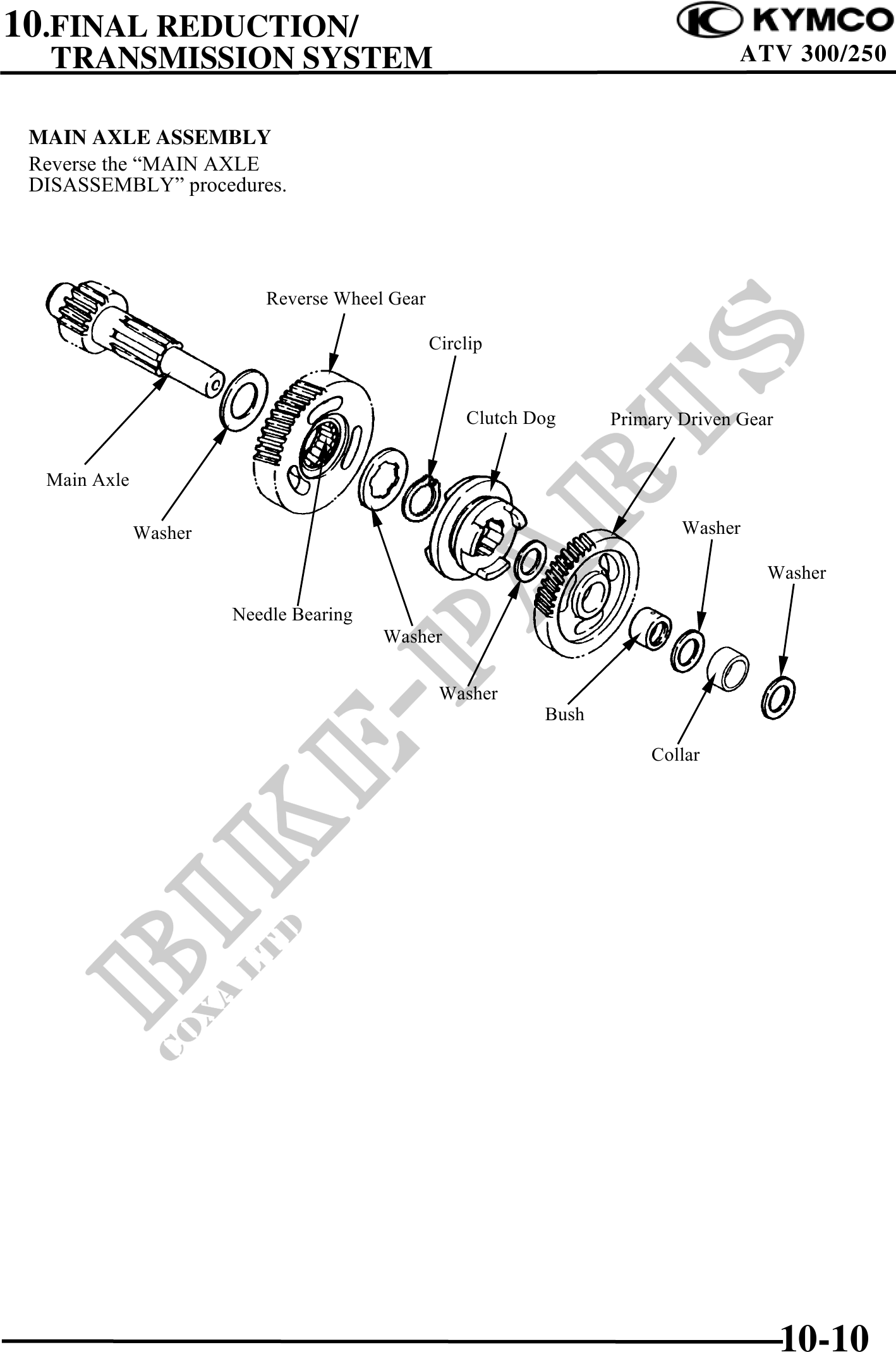

 MAIN AXLE ASSEMBLY
 Reverse the "MAIN AXLE
 DISASSEMBLY" procedures.




                          Reverse Wheel Gear

                                               Circlip


                                                   Clutch Dog     Primary Driven Gear


  Main Axle

              Washer                                                      Washer

                                                                                    Washer

                       Needle Bearing
                                        Washer

                                                Washer
                                                           Bush

                                                                      Collar




                                                                                        10-10
