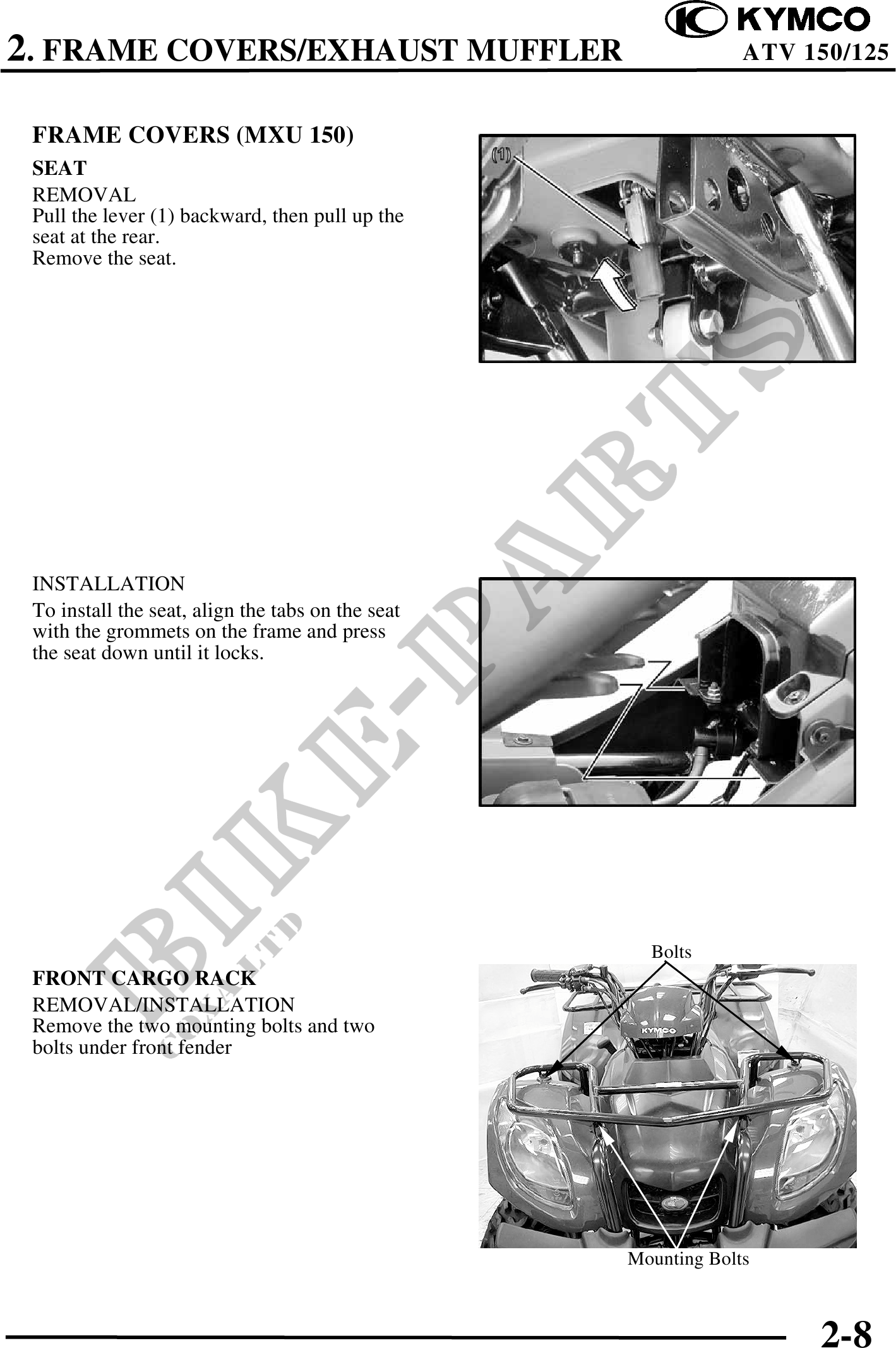

2. FRAME COVERS/EXHAUST MUFFLER ATV 150/125
FRAME COVERS (MXU 150)
SEAT
REMOVAL
Pull the lever (1) backward, then pull up the
seat at the rear.
Remove the seat.
INSTALLATION
To install the seat, align the tabs on the seat
with the grommets on the frame and press
the seat down until it locks.
Bolts
FRONT CARGO RACK
REMOVAL/INSTALLATION
Remove the two mounting bolts and two
bolts under front fender
Mounting Bolts
2-8
