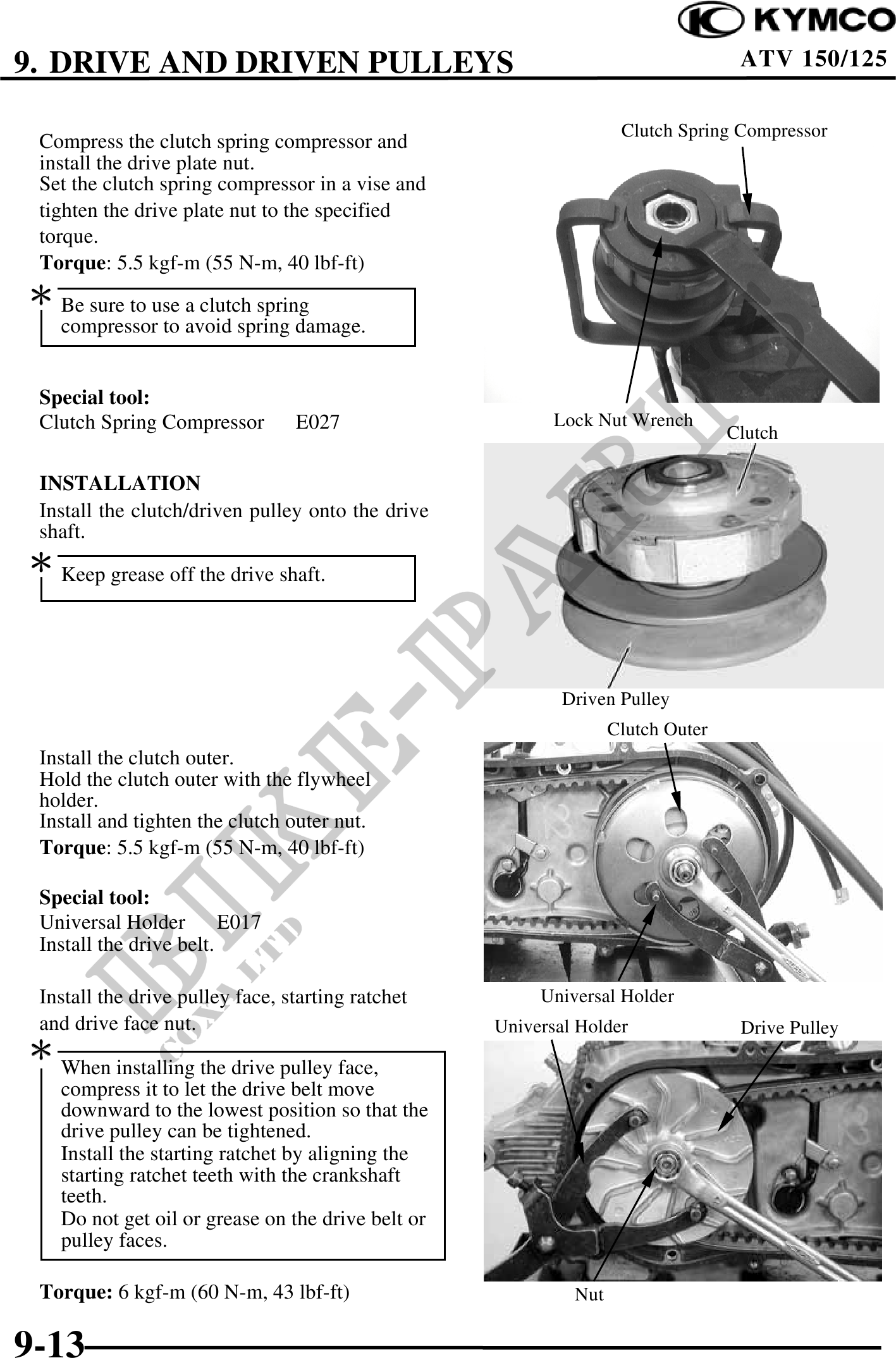

          9. DRIVE AND DRIVEN PULLEYS                                                       ATV 150/125

                                                                   Clutch Spring Compressor
 Compress the clutch spring compressor and
 install the drive plate nut.
 Set the clutch spring compressor in a vise and
 tighten the drive plate nut to the specified
 torque.
 Torque: 5.5 kgf-m (55 N-m, 40 lbf-ft)
 Be sure to use a clutch spring
   compressor to avoid spring damage.


 Special tool:
 Clutch Spring Compressor        E027                     Lock Nut Wrench
                                                                                 Clutch

 INSTALLATION
 Install the clutch/driven pulley onto the drive
 shaft.
 Keep grease off the drive shaft.



                                                           Driven Pulley
                                                                  Clutch Outer
 Install the clutch outer.
 Hold the clutch outer with the flywheel
 holder.
 Install and tighten the clutch outer nut.
 Torque: 5.5 kgf-m (55 N-m, 40 lbf-ft)

 Special tool:
 Universal Holder        E017
 Install the drive belt.

 Install the drive pulley face, starting ratchet        Universal Holder
 and drive face nut.                               Universal Holder               Drive Pulley
 When installing the drive pulley face,
   compress it to let the drive belt move
   downward to the lowest position so that the
   drive pulley can be tightened.
   Install the starting ratchet by aligning the
   starting ratchet teeth with the crankshaft
   teeth.
   Do not get oil or grease on the drive belt or
   pulley faces.

 Torque: 6 kgf-m (60 N-m, 43 lbf-ft)                        Nut

9-13
