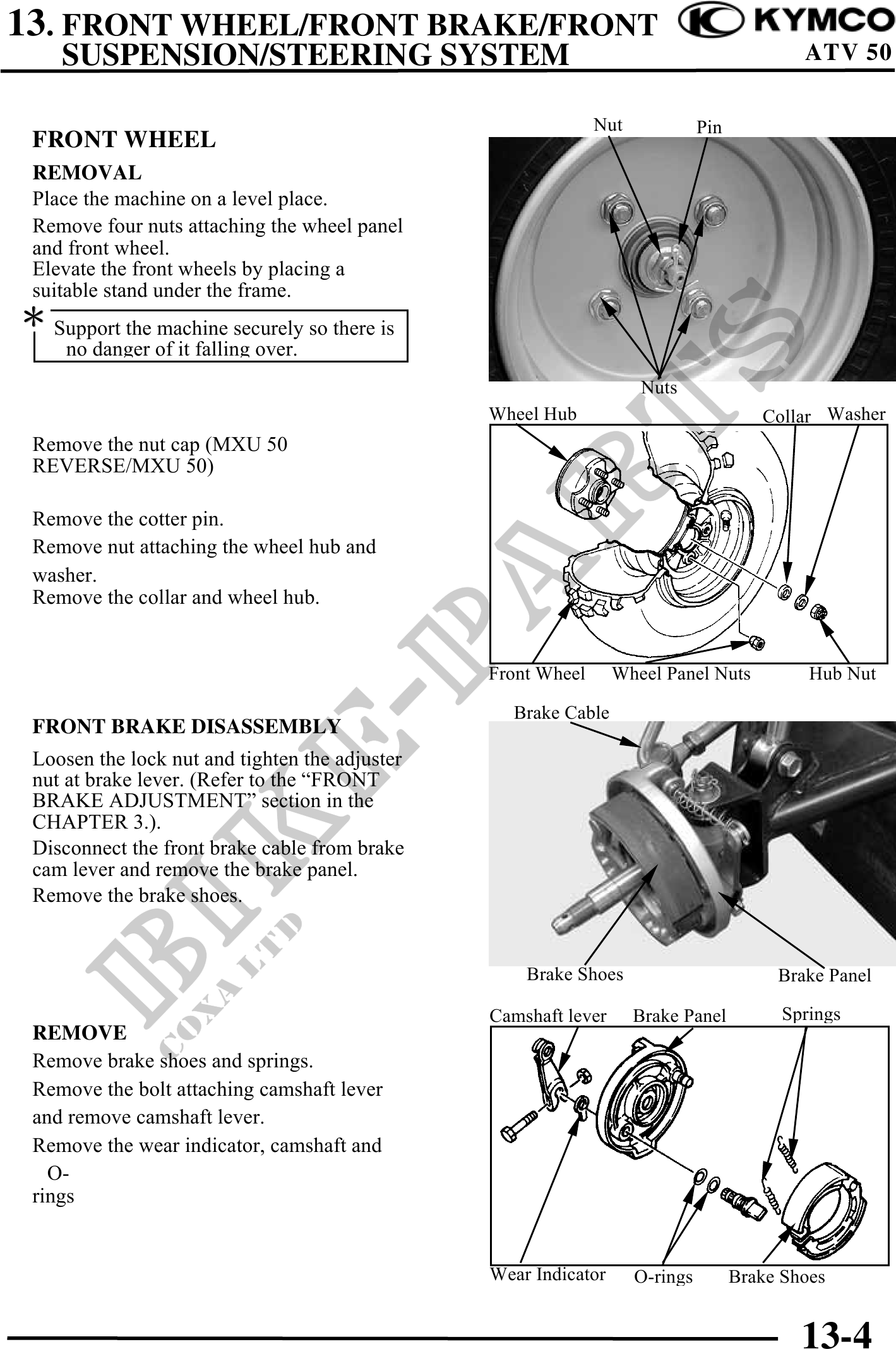

13. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM ATV 50
Nut Pin
FRONT WHEEL
REMOVAL
Place the machine on a level place.
Remove four nuts attaching the wheel panel
and front wheel.
Elevate the front wheels by placing a
suitable stand under the frame.
Support the machine securely so there is
no danger of it falling over.
Nuts
Wheel Hub Collar Washer
Remove the nut cap (MXU 50
REVERSE/MXU 50)
Remove the cotter pin.
Remove nut attaching the wheel hub and
washer.
Remove the collar and wheel hub.
Front Wheel Wheel Panel Nuts Hub Nut
Brake Cable
FRONT BRAKE DISASSEMBLY
Loosen the lock nut and tighten the adjuster
nut at brake lever. (Refer to the "FRONT
BRAKE ADJUSTMENT" section in the
CHAPTER 3.).
Disconnect the front brake cable from brake
cam lever and remove the brake panel.
Remove the brake shoes.
Brake Shoes Brake Panel
Camshaft lever Brake Panel Springs
REMOVE
Remove brake shoes and springs.
Remove the bolt attaching camshaft lever
and remove camshaft lever.
Remove the wear indicator, camshaft and
O-
rings
Wear Indicator O-rings Brake Shoes
13-4
