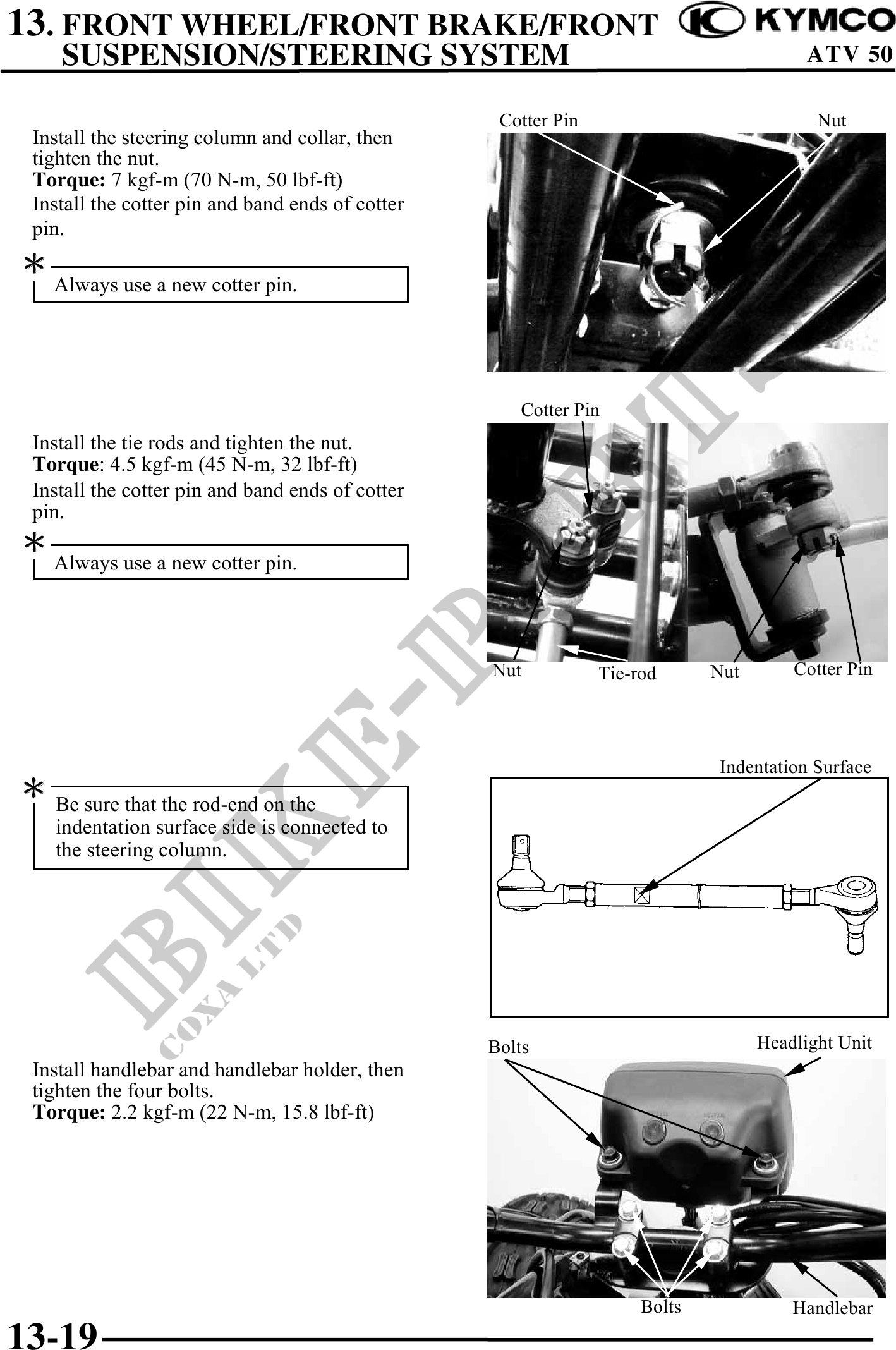

13. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM ATV 50
Cotter Pin Nut
Install the steering column and collar, then
tighten the nut.
Torque: 7 kgf-m (70 N-m, 50 lbf-ft)
Install the cotter pin and band ends of cotter
pin.
Always use a new cotter pin.
Cotter Pin
Install the tie rods and tighten the nut.
Torque: 4.5 kgf-m (45 N-m, 32 lbf-ft)
Install the cotter pin and band ends of cotter
pin.
Always use a new cotter pin.
Nut Tie-rod Nut Cotter Pin
Indentation Surface
Be sure that the rod-end on the
indentation surface side is connected to
the steering column.
Bolts Headlight Unit
Install handlebar and handlebar holder, then
tighten the four bolts.
Torque: 2.2 kgf-m (22 N-m, 15.8 lbf-ft)
Bolts Handlebar
13-19
