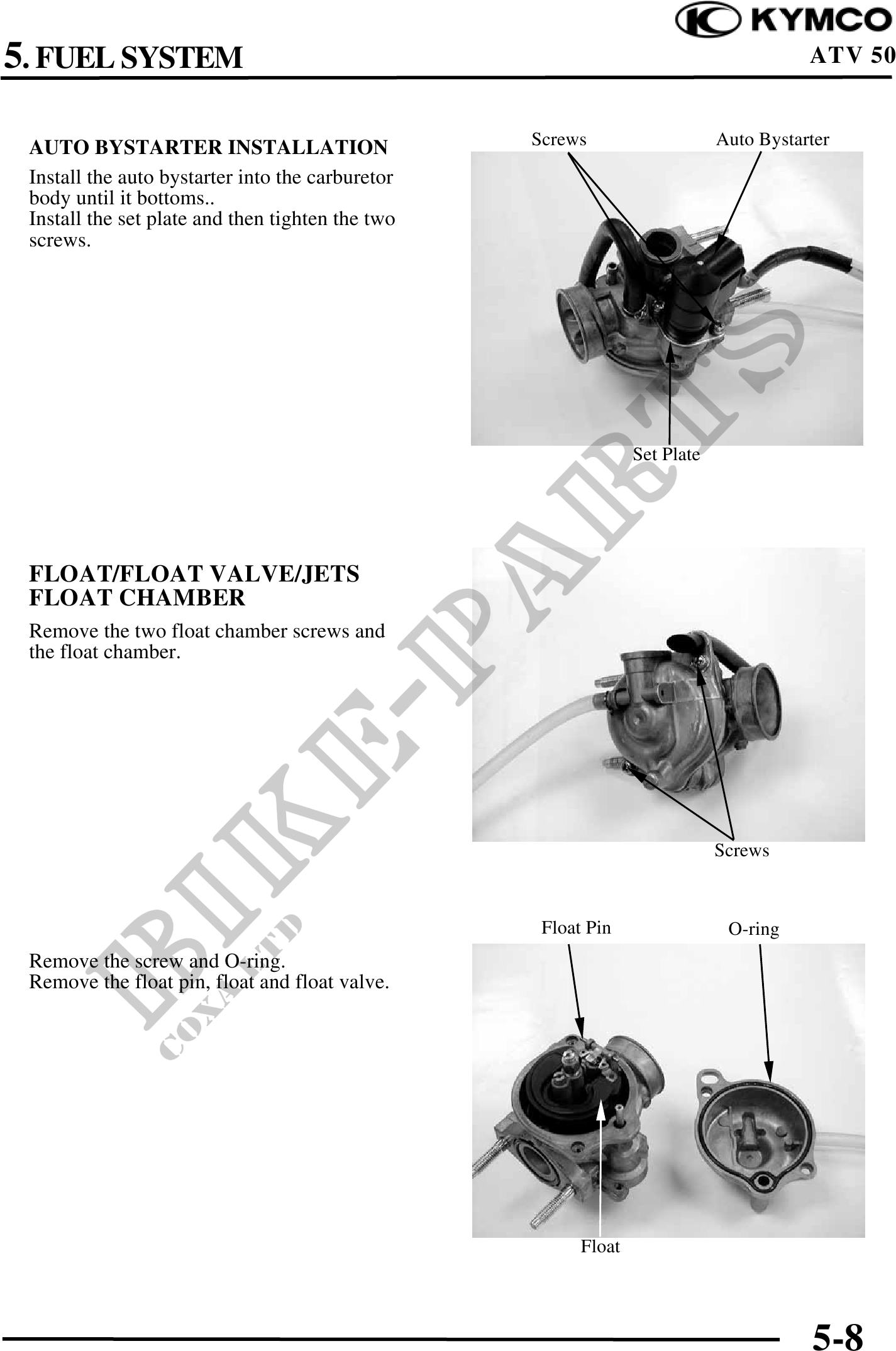

5. FUEL SYSTEM ATV 50
AUTO BYSTARTER INSTALLATION Screws Auto Bystarter
Install the auto bystarter into the carburetor
body until it bottoms..
Install the set plate and then tighten the two
screws.
Set Plate
FLOAT/FLOAT VALVE/JETS
FLOAT CHAMBER
Remove the two float chamber screws and
the float chamber.
Screws
Float Pin O-ring
Remove the screw and O-ring.
Remove the float pin, float and float valve.
Float
5-8
