          1. GENERAL INFORMATION                                                        ATV 50

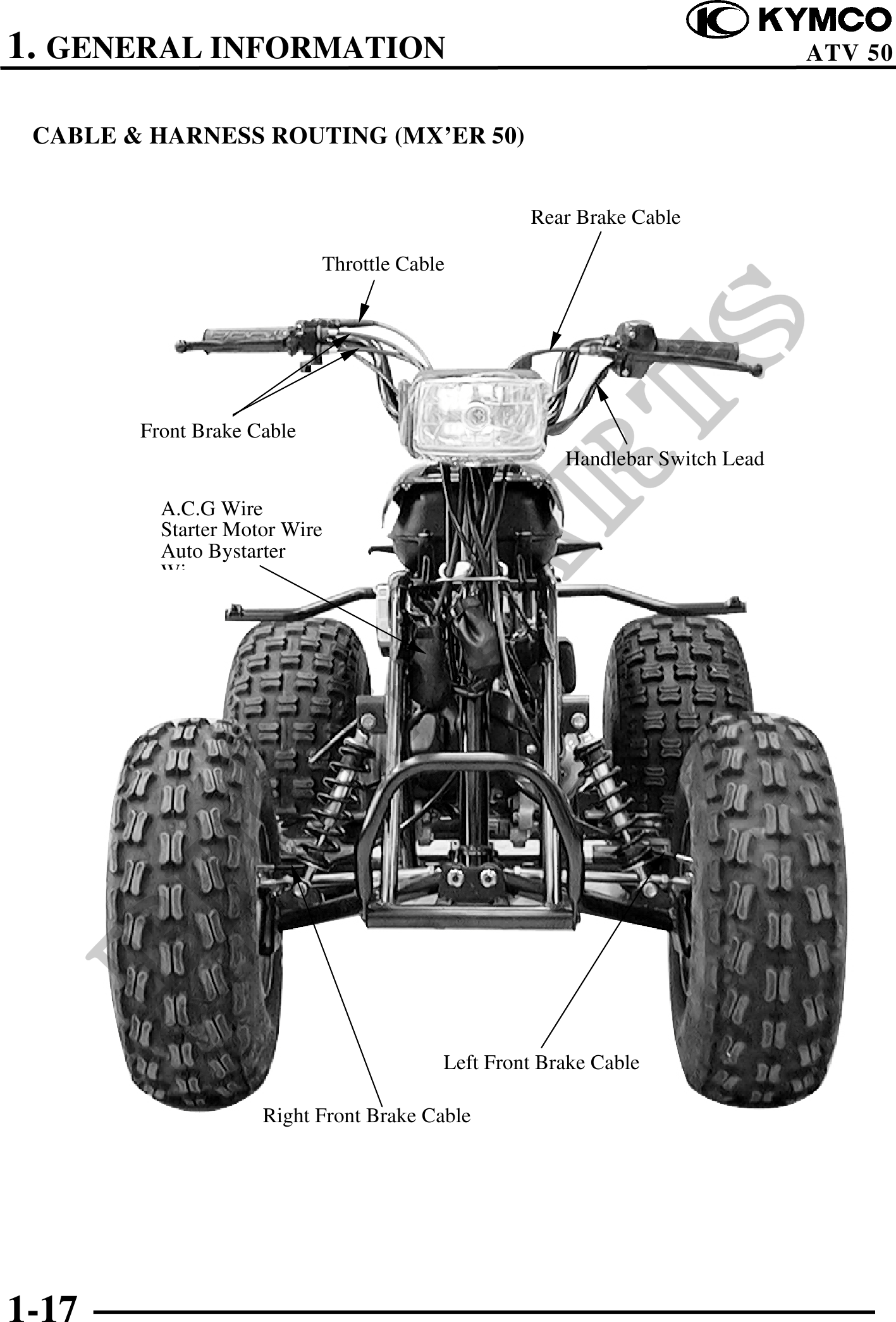

 CABLE & HARNESS ROUTING (MX'ER 50)


                                                  Rear Brake Cable

                            Throttle Cable




        Front Brake Cable
                                                      Handlebar Switch Lead

          A.C.G Wire
          Starter Motor Wire
          Auto Bystarter
          Wi




                                         Left Front Brake Cable

                     Right Front Brake Cable




1-17
